Haklift

Connecting link is used for connecting short link grade 80 chains to different components in a lifting sling.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

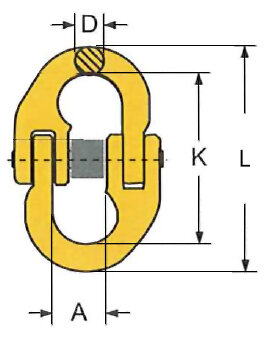

Part Code WLL
ton
For chain dia.
mm
L
mm
K
mm
A
mm
D
mm
Weight
kg
CAD
11.058SLR074-06 1.12 6 58 42 15 7 0.08
11.058SLR074-7/8 2 7/8 79 60 18 8 0.146
11.058SLR074-10 3.15 10 90 68 25 11 0.3
11.058SLR074-13 5.3 13 117 87 29 15 0.65
11.058SLR074-16 8 16 148 108 34 19 1.15
11.058SLR074-20 12.5 20 154 121 41 24 2.1
11.058SLR074-22 15 22 193 141 48 26 2.87
11.058SLR074-26 21.2 26 220 158 57 30 4.5
11.058SLR074-32 31.5 32 281 205 67 37 8.21
