Haklift

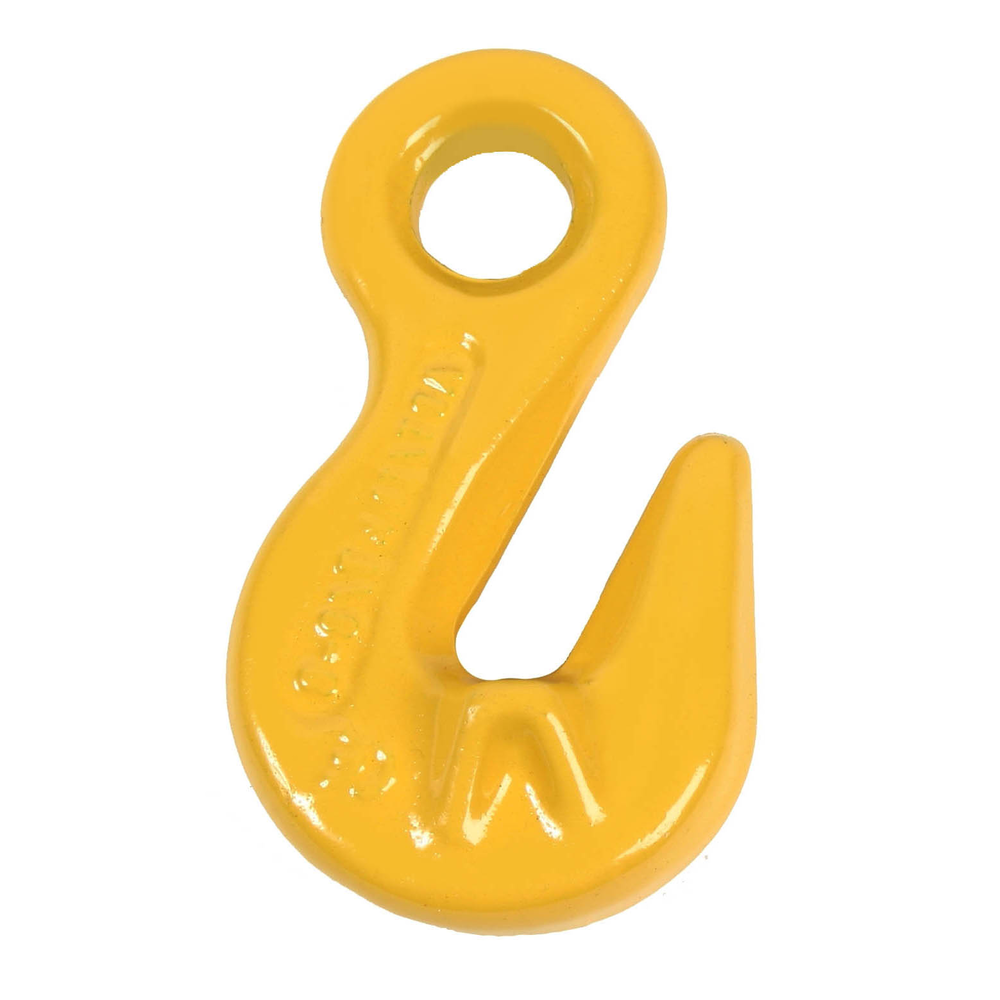

Eye grab hook is used for shortening chain legs of a sling. The grab hook is attached to the master link with the same connection link as the chain.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table, then click the add to cart button

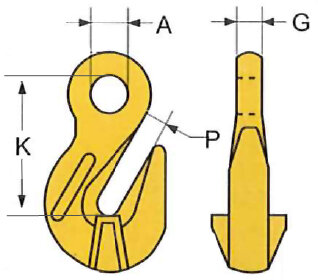

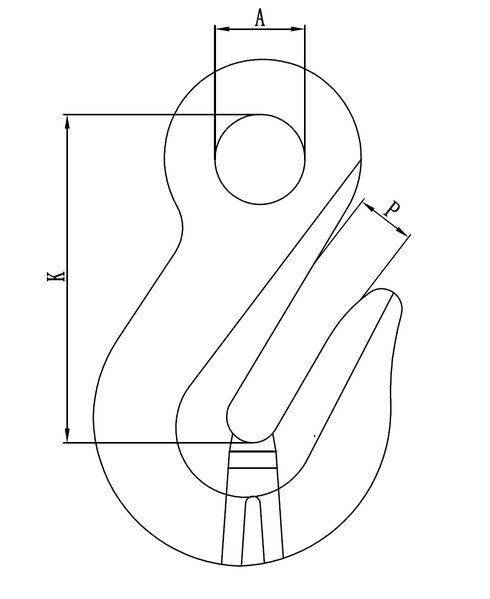

Part Code WLL
ton
For chain dia.
mm
A
mm
K
mm
P
mm
Weight
kg
11.208SLR085-6 1,12 6 13 51 8 0,14
11.208SLR085-7/8 2 7/8 18 61,5 10 0,245
11.208SLR085-10 3,15 10 20 80 13 0,65
11.208SLR085-13 5,3 13 26 99 16 1,39
11.208SLR085-16 8 16 30 104 20 2,2
11.208SLR085-20 12,5 20 37 140 25 4,6
11.208SLR085-22 15 22 44 165 28 8,2
11.208SLR085-26 21,2 26 41 188 30 9,8
11.208SLR085-32 31,5 32 57 228 38 19,4
