Haklift

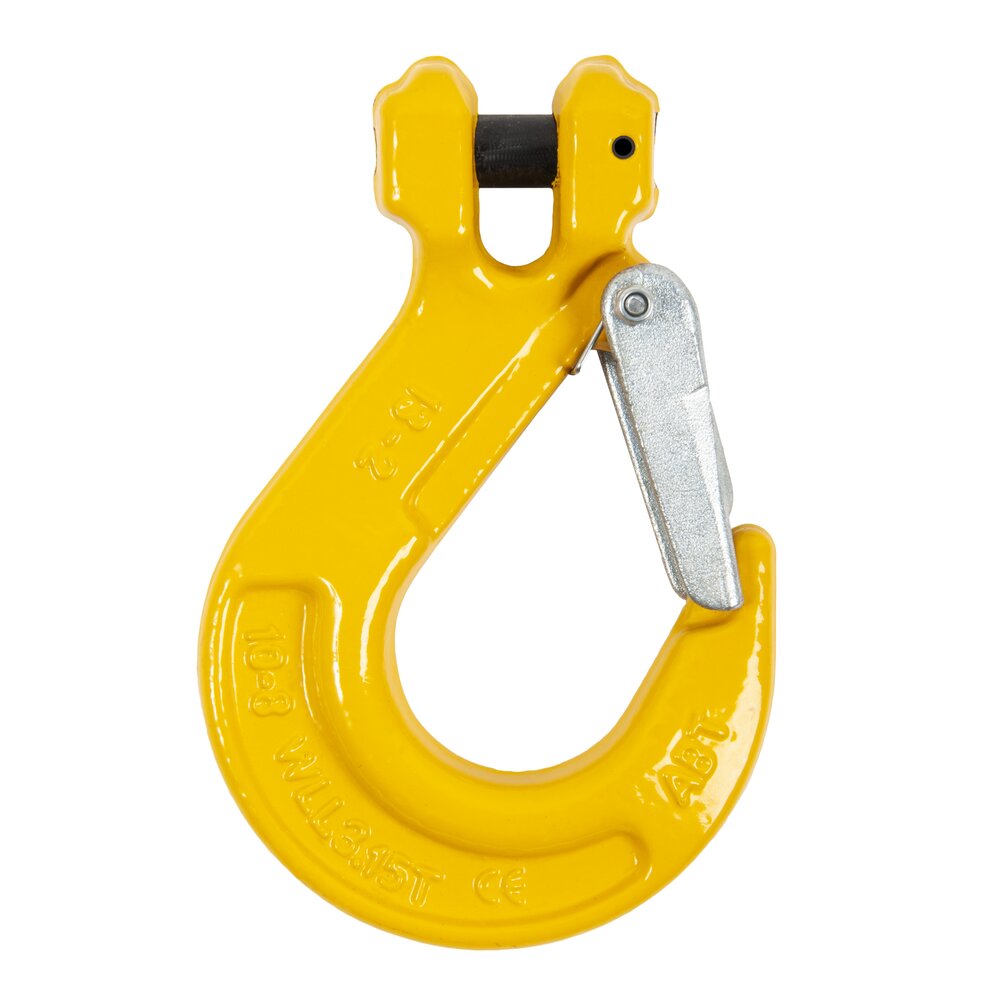

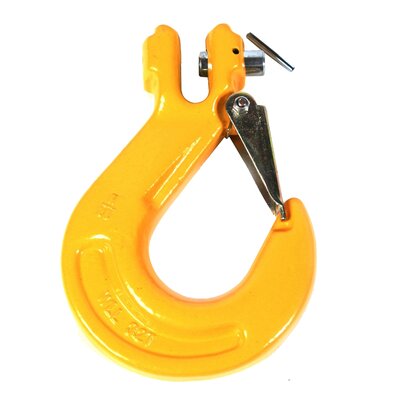

Clevis sling hook with latch, grade 80.

Hook is equipped with spring loaded safety latch. Attachment directly to the chain with clevis link.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table, then click the add to cart button

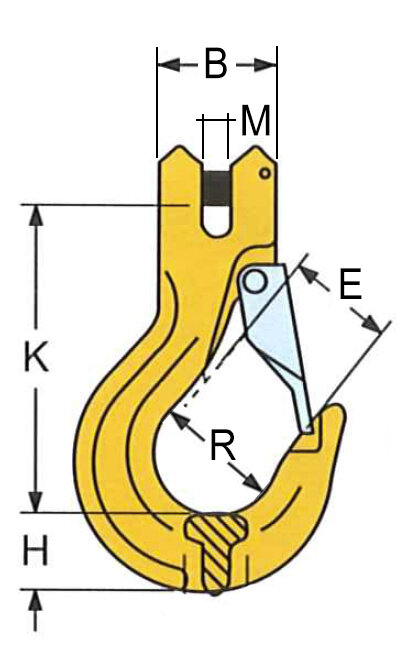

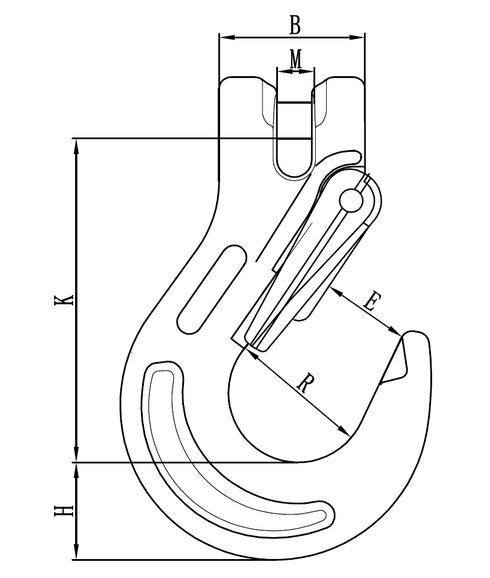

Part Code WLL
ton
For chain dia.
mm
K
mm
H
mm
E
mm
M
mm
R
mm
B
mm
Weight
kg
11.108SLR012-06 1,12 6 76 23 26 8 35 32 0,32
11.108SLR012-7/8 2 7/8 85 32 29 9,5 37 37 0,48
11.108SLR012-10 3,15 10 104 35 32 13 46 49 0,95
11.108SLR012-13 5,3 13 128 42 27 16 56 56 1,8
11.108SLR012-16 8 16 150 54 55 21 60 70 3,4
11.108SLR012-20 12,5 20 180 58 61 24 79 77 6
