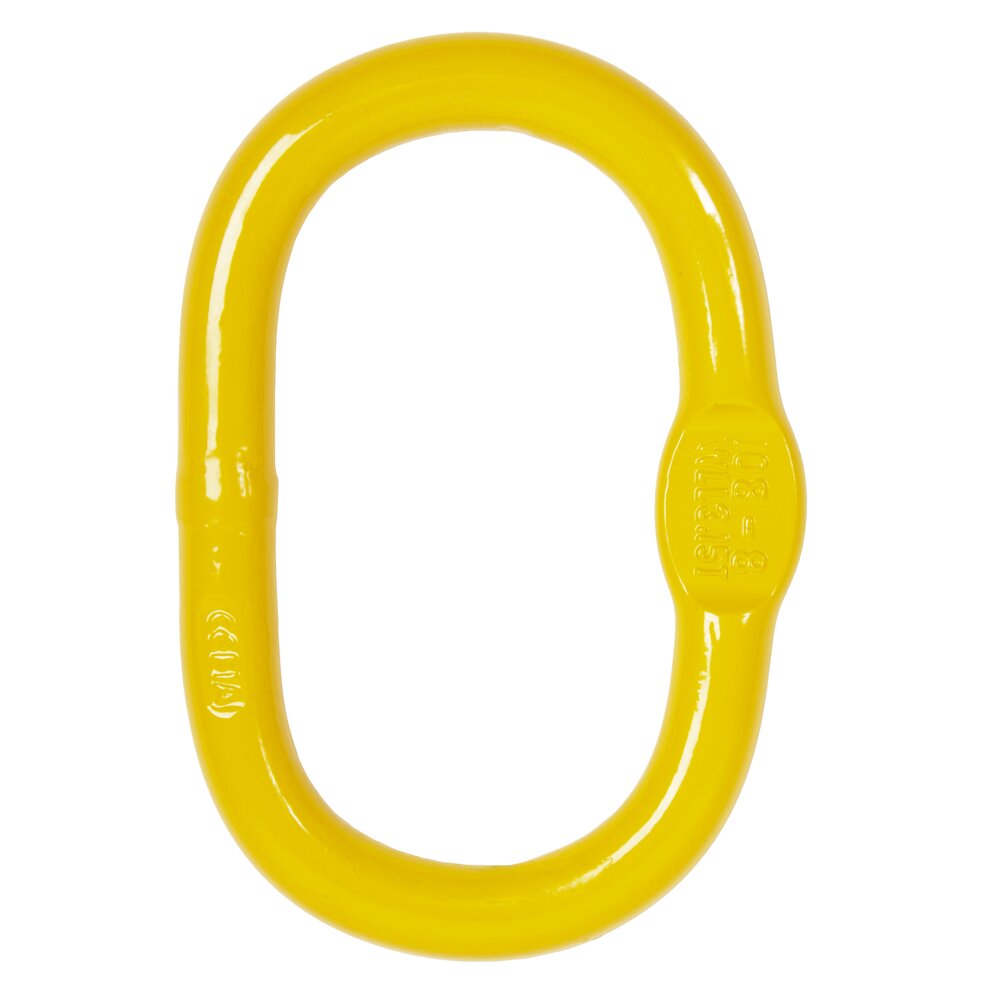

Masterlink for chain sling assemblies.
  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table, then click the add to cart button

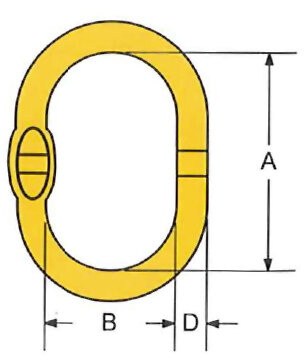

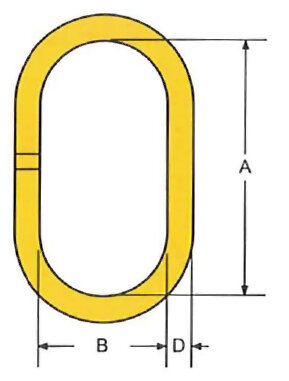

Part Code WLL For chain mm, 1-leg For chain mm, 2-leg A
mm
B
mm
D
mm
Weight
11.018SLR033-76 1,6 6/7 6 110 60 13 0,34
11.018SLR033-87 2,12 8 7 110 60 16 0,53
11.018SLR033-108 3,15 10 8 135 75 18 0,8
11.018SLR033-1310 5,3 13 10 160 90 22 1,5
11.018SLR033-1613 8 16 13 180 100 26 2,3
11.018SLR033-1816 11,2 18 16 200 110 32 3,9
11.018SLR033-2218 14 20 18 260 140 36 6,35
11.018SLR033-2220 17 22 20 300 160 40 9
11.018SLR033-2622 21,2 26 22 340 180 45 12,8
11.018SLR033-3226 31,5 32 26 350 190 50 17,2
11.018SLR033-3632 45 36 32 400 200 56 24,2
