Haklift

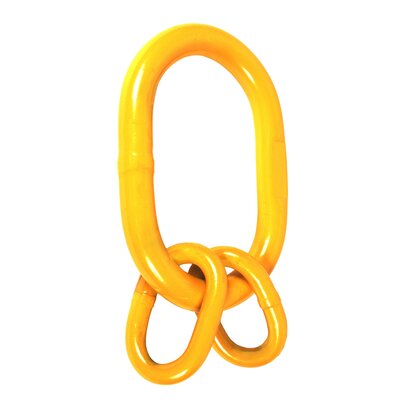

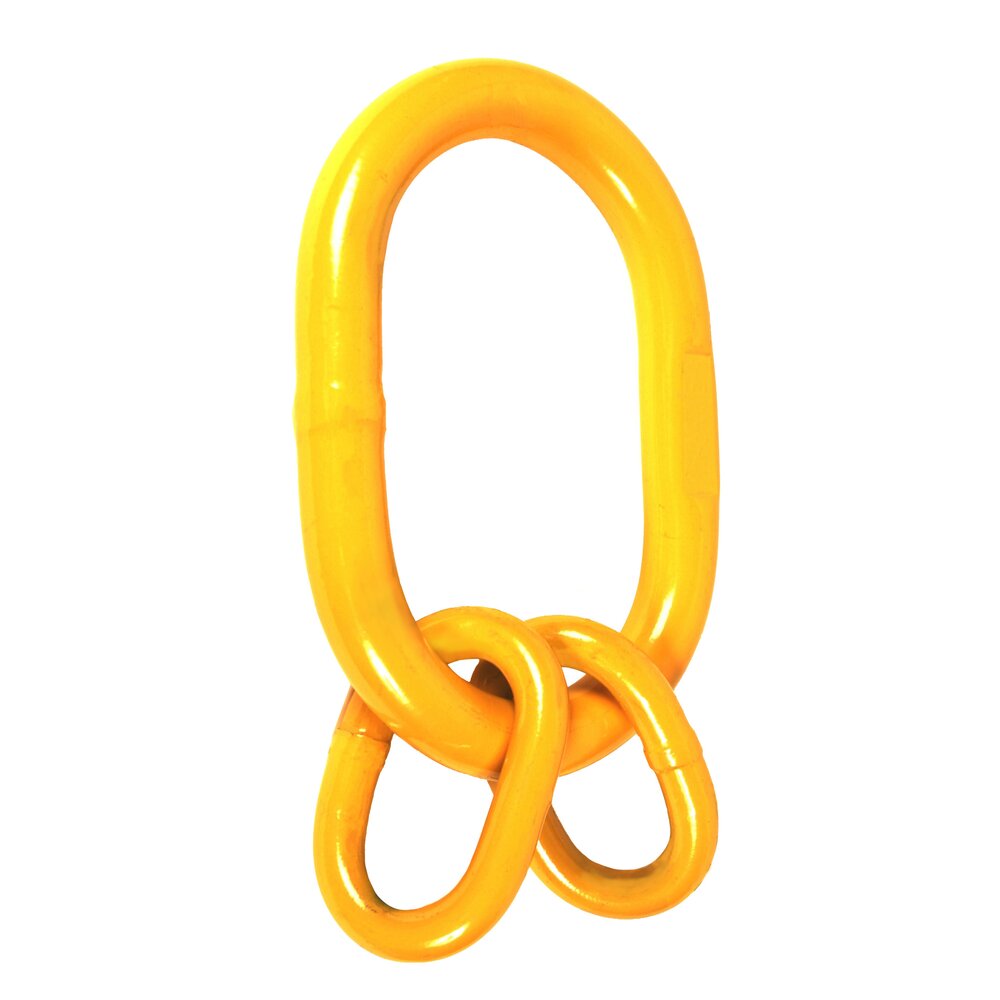

Masterlink for 3- and 4-leg chain sling assemblies.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table, then click the add to cart button

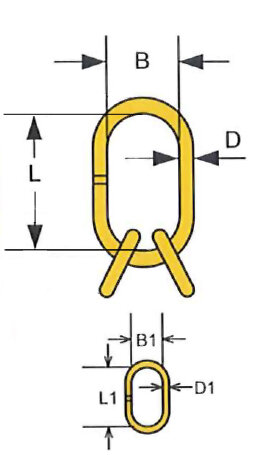

Part Code WLL
ton
For chain mm, 3-4-leg L
mm
B
mm
D
mm
B1
mm
D1
mm
L1
mm
Weight
kg
11.018SLR094-11/16 2,4 6 135 75 18 25 14 54 1,2
11.018SLR094-3/4 4,3 7/8 160 90 22 34 16 70 2,2
11.018SLR094-7/8 6,7 10 180 100 26 40 18 85 3,4
11.018SLR094-1-1/8 11,2 13 200 110 32 50 22 115 6
11.018SLR094-1-1/4 17 16 260 140 36 65 26 140 10
11.018SLR094-1-1/2 26,5 20 350 190 51 70 32 150 23,3
11.018SLR094-1-3/4 32 22 350 190 51 75 36 170 25,9
11.018SLR094-2 45 26 400 200 57 80 40 170 35,2
