Haklift

Eye grab hook is used for shortening chain legs of a sling. The grab hook is attached to the master link with the same connection link as the chain.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to cart button

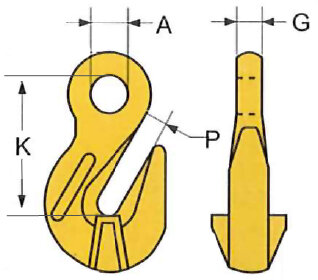

Part Code WLL
ton
For chain dia.
mm
A
mm
K
mm
P
mm
Weight
kg
CAD
11.208SLR085-6 1.12 6 13 51 8 0.14
11.208SLR085-7/8 2 7/8 18 61.5 10 0.245
11.208SLR085-10 3.15 10 20 80 13 0.65
11.208SLR085-13 5.3 13 26 99 16 1.39
11.208SLR085-16 8 16 30 104 20 2.2
11.208SLR085-20 12.5 20 37 140 25 4.6
11.208SLR085-22 15 22 44 165 28 8.2
11.208SLR085-26 21.2 26 41 188 30 9.8
11.208SLR085-32 31.5 32 57 228 38 19.4

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
