General: Low profile beam for the handling of garbage containers in workshops and worksites. The beam is delivered complete with four chain slings and fitting LB-1.
Design: Welded pipe beam construction which gives good torsional stiffness and is lightweight.


Proof: 1,5 x WLL.

  • Material: Hollow beam and plate of high-strength structural steel.
  • Marking: WLL and CE marking.
  • Finish: Yellow painted.

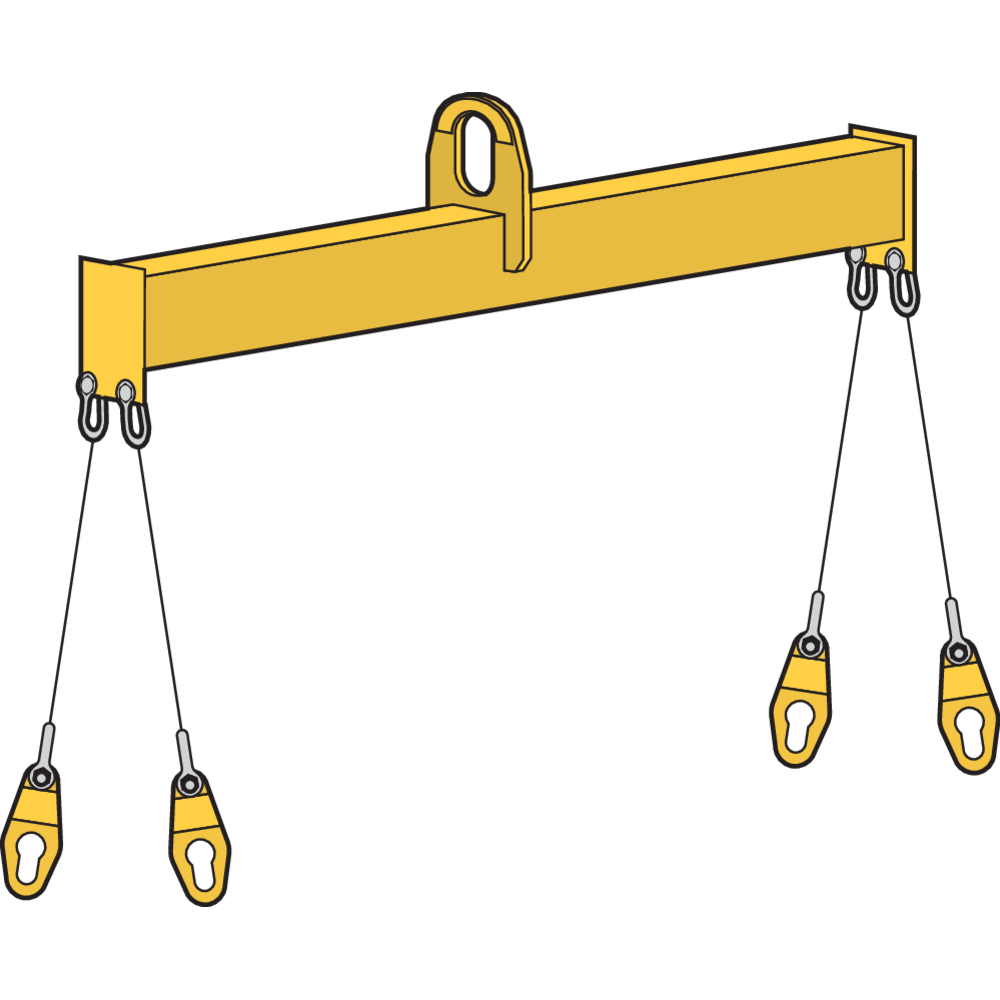

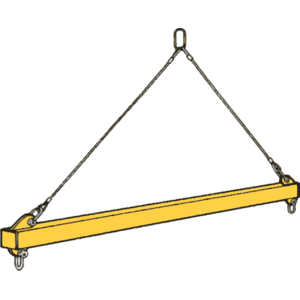

    Crane beam for lifting trash containers
    Lifting beam for trash container measurements
    Select a row from the table, then click the add to cart button
    Part Code WLL
    ton
    chain Ø
    mm
    A
    mm
    B
    mm
    H
    mm
    L
    mm
    Weight
    kg
    13.356600SC070 7 10 200 90 1 400 1 950 120
    13.356600SC100 10 13 200 90 1 400 1 950 140
    13.356600SC140 14 13 250 120 1 400 1 950 180

    Other dimensions and design are made by request.
