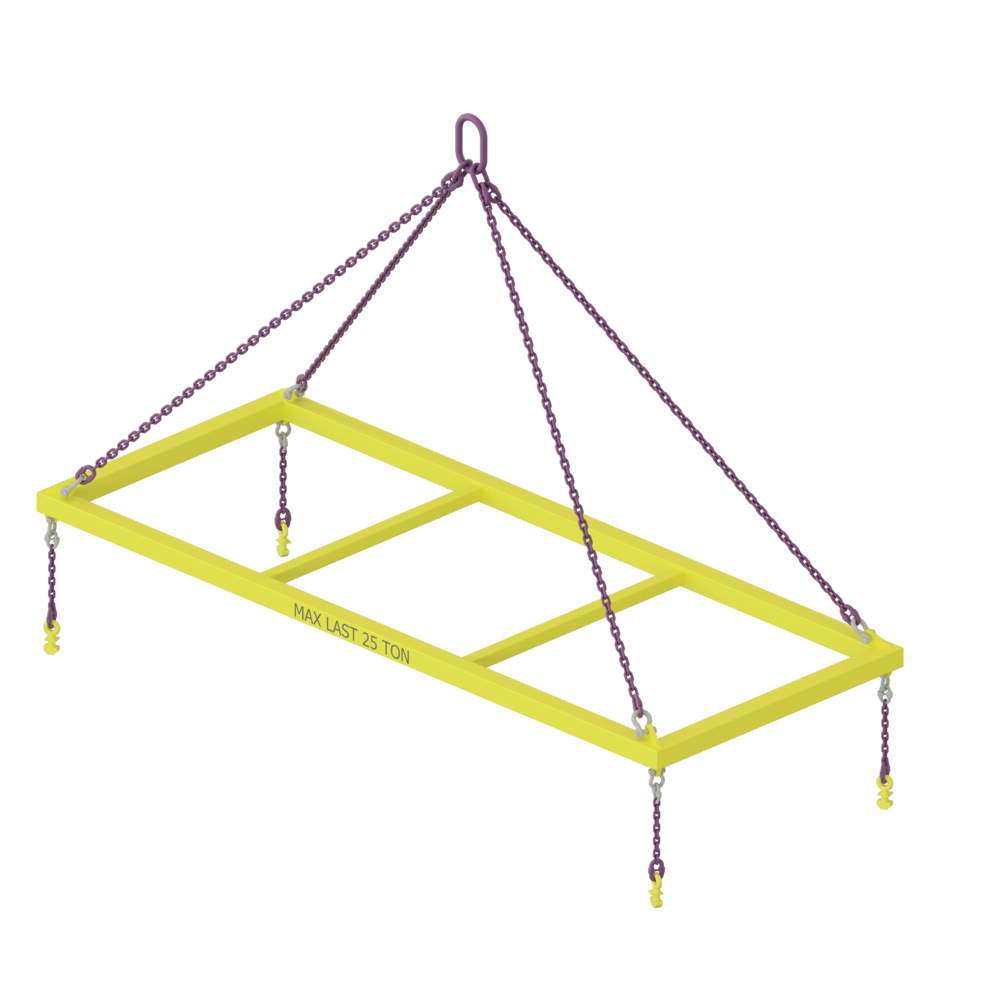

Lifting beam for handling standard 20-ft and 40-ft containers. Supplied complete with wire rope or chain slings, type CLB-32 or CLB-40 container hooks for attachment to container bottom fixings and type CLT for top fixings.
Design: The type C frame beam is designed for lifting from the bottom fixings. The type D frame beam is designed for lifting from the top fixings.
Proof: 2 x WLL according to SS-EN 131 55
Type C Frame beam - bottom lift.
Type D Frame beam - top lift.
- Material: Hollow-beam and plate of high-strength structural steel.
- Marking: Maximum load and CE mark.
- Finish: Yellow painted.
- Note: Manufactured in accordance with the Swedish and international standard SS-ISO 3874, which states that a lifting beam is required when handling loaded standard containers larger than 10 ft in
