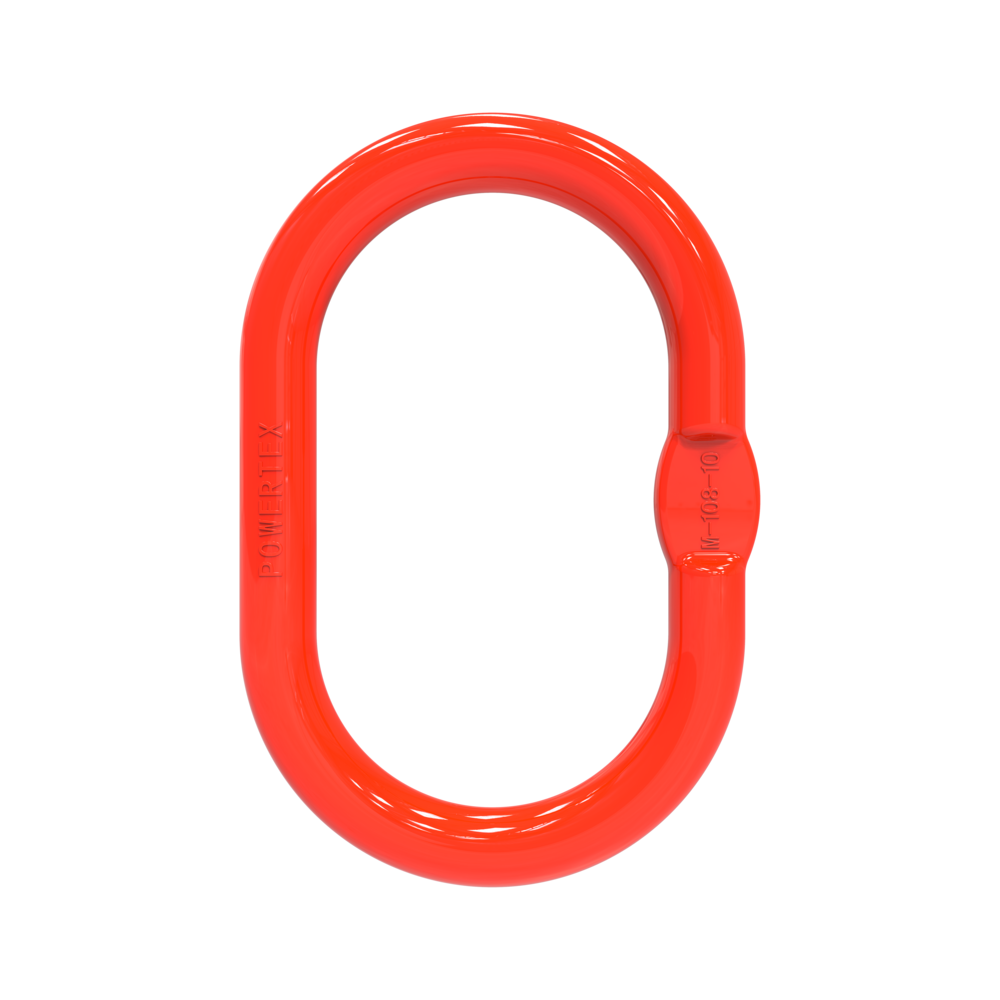

The POWERTEX Master Link M is a Grade 10 master link designed as the top ring for one-leg and two-leg chain sling assemblies. It provides a reliable connection point for industrial lifting applications.
Available for 6 mm up to 32 mm chain and from WLL 1.4t up to WLL 56t.
All models up to M-3226-10 are forged. Model M-3632-10 is welded.
Best used for
- One-leg and two-leg Grade 10 chain sling assemblies.
Product benefits
- Designed as the top ring for one-leg and two-leg chain slings.
- Grade 10 design delivers 25% higher capacity than traditional Grade 8 components.
- Forged construction on most sizes, with a welded design for model M-3632-10.
- Conforms to EN 1677 Parts 1, 2, 3, and 4 with 25% increased WLL.
- Each component is crack detection tested. Production samples are proof-load tested, and the design is factory-type tested.
- The design is fatigue tested to 20,000 cycles at 1.5 × WLL, with batch traceability and a POWERTEX 2.2 certificate.
- Batch number traceability and a POWERTEX 2.2 certificate support inspection and documentation.
- The components may also be used with Grade 8 chain to EN 818-2. In such a case, the chain sling must be rated to Grade 8 in accordance with EN 818-4.
- Marking: According to standard, POWERTEX + Model (M-6-10) + traceability code.
- Temperature range: -40°C up to +200°C without reduction in WLL
- Finish: Powder painted in luminous red
- Standard: EN 1677-4 (+25% WLL) , AS 3776
- Note: All models are forged, except M-3632-10 which is welded
- Safety factor: 4:1
- Grade: 10
