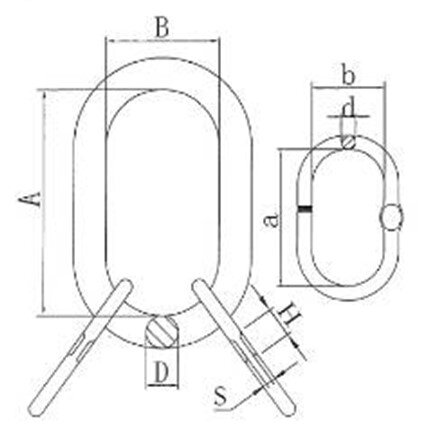

The POWERTEX Master Link Assembly MA is a welded master link assembly used as the top ring in three- and four-leg chain sling assemblies. As part of the POWERTEX Grade 10 lifting chain component range, it provides a reliable connection point
Available for 6 mm up to 22 mm chain and from WLL 3t up to WLL 40t.
All models are welded.
Best used for
- Three-leg and four-leg Grade 10 chain sling assemblies.
- Industrial lifting and rigging applications requiring a welded master link assembly.
Product benefits
- Grade 10 design delivers 25% higher capacity than traditional Grade 8 components.
- Welded construction provides a durable and reliable lifting connection.
- Conforms to EN 1677 Parts 1, 2, 3, and 4 with 25% increased WLL.
- Forged components are crack detection tested, with samples proof load tested for quality assurance.
- Factory type tested and fatigue rated to 20,000 cycles at 1.5 × WLL.
- Batch number traceability and a POWERTEX 2.2 certificate support inspection and documentation.
- The components may also be used with a Grade 8 chain to EN 818-2. In such a case, the chain sling must be rated to Grade 8 in accordance with EN 818-4.
- Marking: According to standard, POWERTEX + Model (MA-6-10) + traceability code.
- Temperature range: -40 °C upp till +200 °C utan reduktion av WL
- Finish: Powder painted in red
- Standard: EN 1677-4 (+25% WLL) , AS 3776
- Note: All models are welded
- Safety factor: 4:1
- Grade: 10
