General:
- Max. working pressure: 720 bar/ 72 Mpa
- Acting type: single
- Return type: gravity
- Compact, Lightweight
- Usable in all positions
- Protected against ejection of plunger


Standard supplied with:
- High Flow female coupler A 118
- HFJ 10/30 G 4 contains a 30 cm connecting hose with anti-kink spring
- HJ 20/50 G 11 contains a flat saddle

Available on request:
- Cylinders manufactured in conformity with customer specifications
- Base mounting holes

  • Material: steel

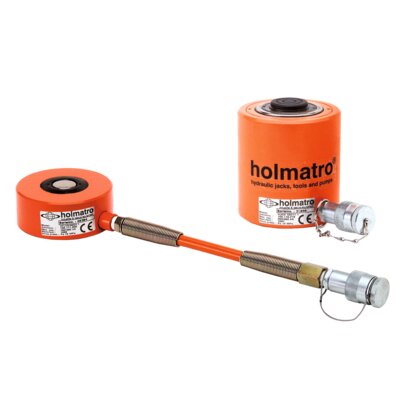

    Product Image 1
    Product Image 2
    Select a row from the table, then click the add to cart button

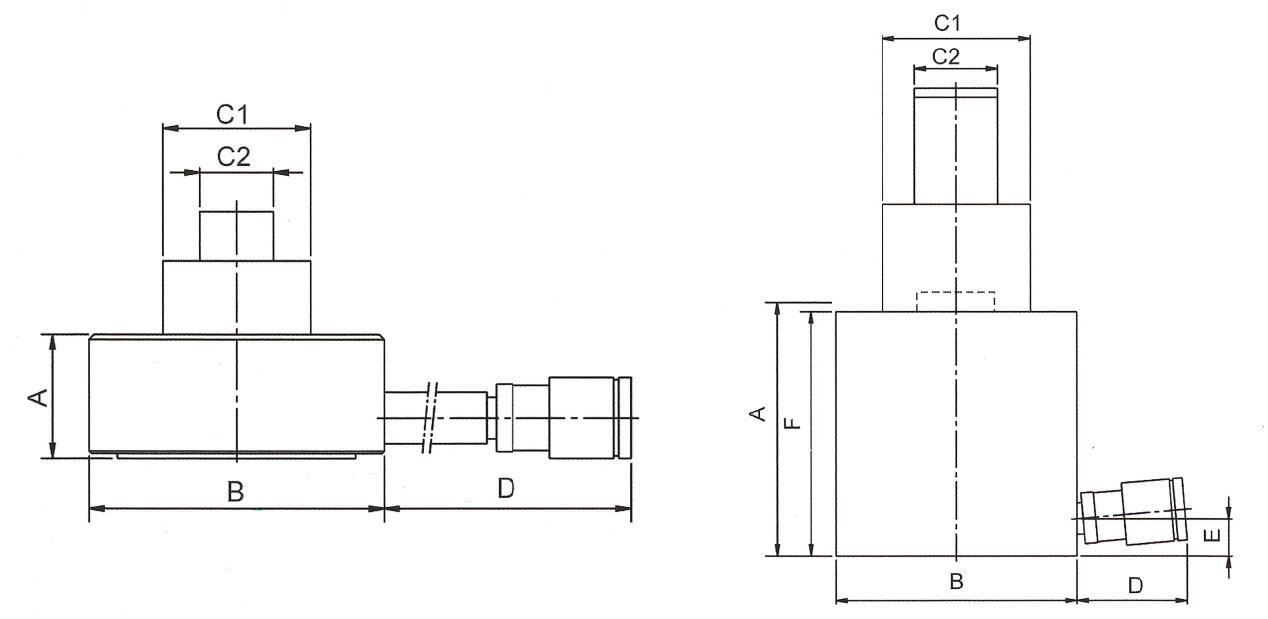

    Part Code Size Model Closed height
    mm
    tonnage t stroke length 1
    mm
    stroke length 2
    mm
    A
    mm
    B
    mm
    C1
    mm
    C2
    mm
    D
    mm
    E
    mm
    F
    mm
    Weight
    kg
    16.40100111005 49 HFJ 10/30 G 4 49 10 41 20 49 120 60 30 385 4,5
    16.40100112103 140 HJ 20/50 G 11 140 20 111 55 140 125 80 45 70 70 131 12,5
