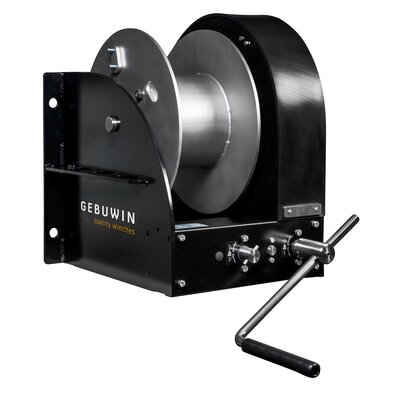

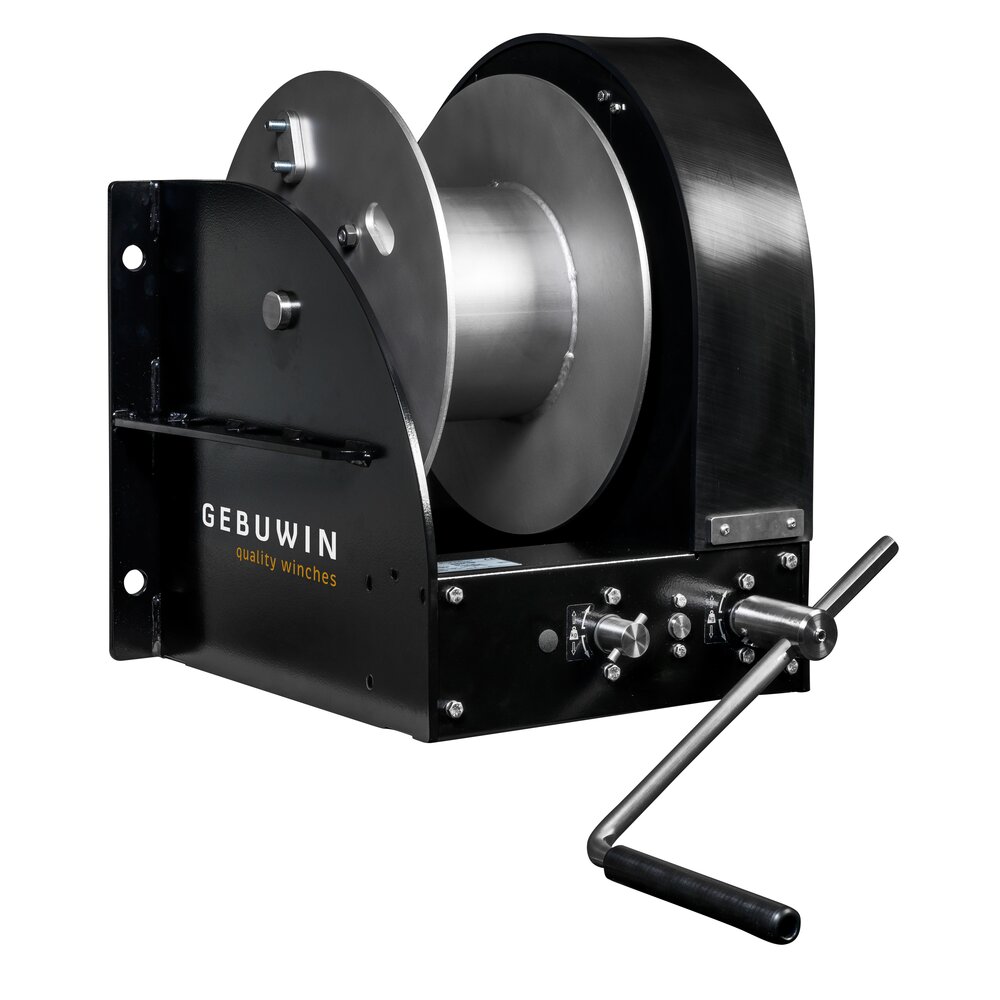

MR hand winch
MR hand winch

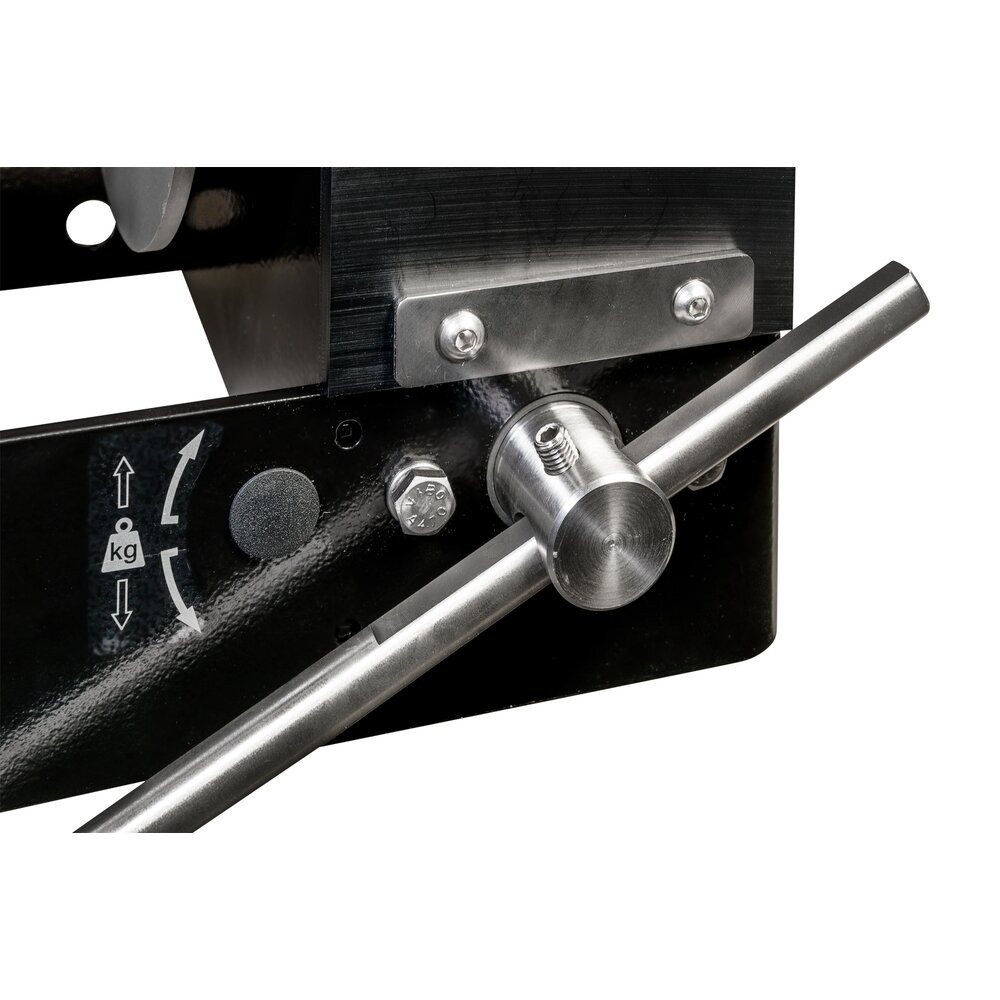

MR hand winch handle
MR hand winch handle

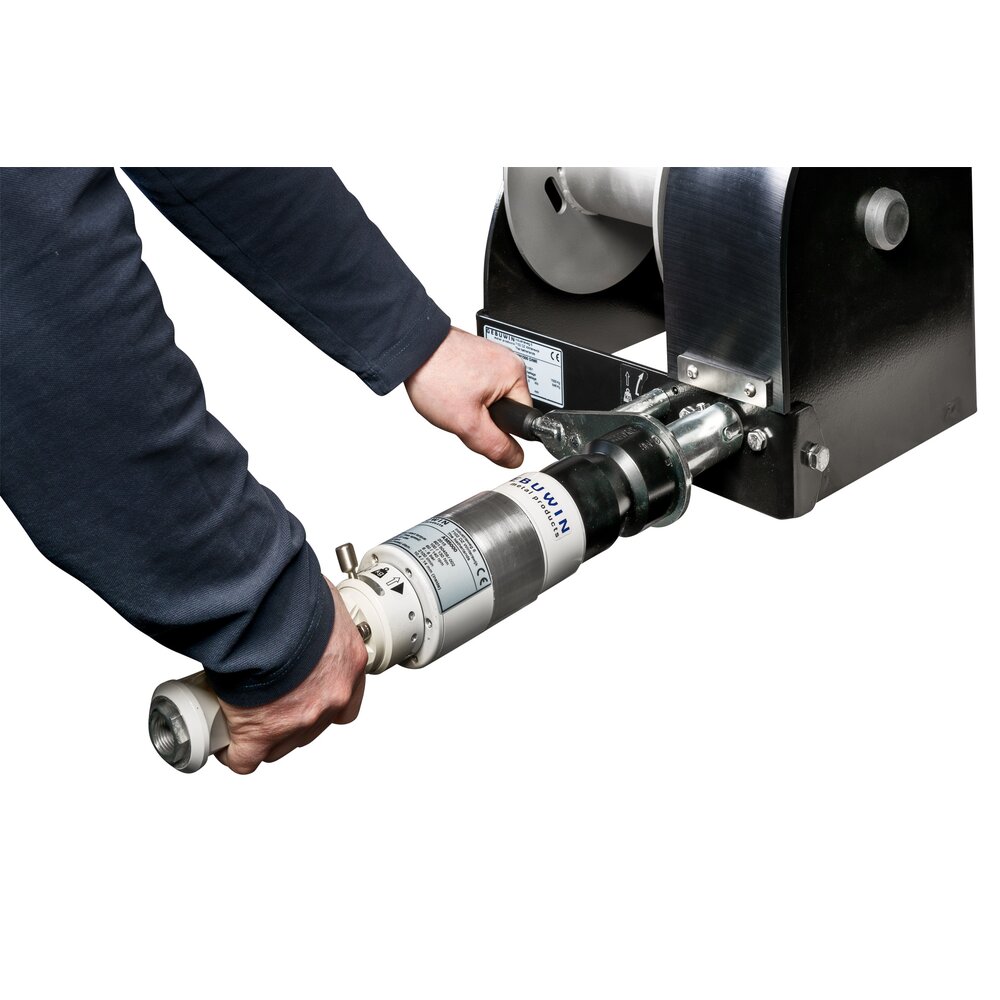

MR hand winch with Power Tool
MR hand winch
MR hand winch
MR hand winch handle
MR hand winch handle
MR hand winch with Power Tool
- load pressure brake with double ratchet system for safe stable hold of the load in any position
- closed gearbox to protect against environmental influence - protection classification IP54
- cable outlet upwards, downwards or at rear
- adjustable crank
- suitable for wall and (optional) floor mounting
- brushed steel frame with marine coating DIN/ISO 12944 C5M - RAL9005 (black)
- stainless steel 316 parts: drum, crank and all outgoing shafts, bolts and nuts
- corrosion resistant
Options:
- grooved drum (GD)
- 2 drum compartment (2D) or multiple up to 8 (XD)
- suitable for floor mounting (FM)
- suitable for Dyneema rope (DY)
- pressure roller (PR)
- ATEX certified zone 2 and 22 (EX)
CE II 3G Ex IIC T4 Gc, -20°C<T amb <+70°C
- Material: Steel, stainless steel
- Marking: According to standard
- Finish: Paint thickness is 240 micron in 3 layers
- Standard: EN 13157
- Note: Steel, stainless steel or fiber ropes must be ordered separately
- Safety factor: 4:1
