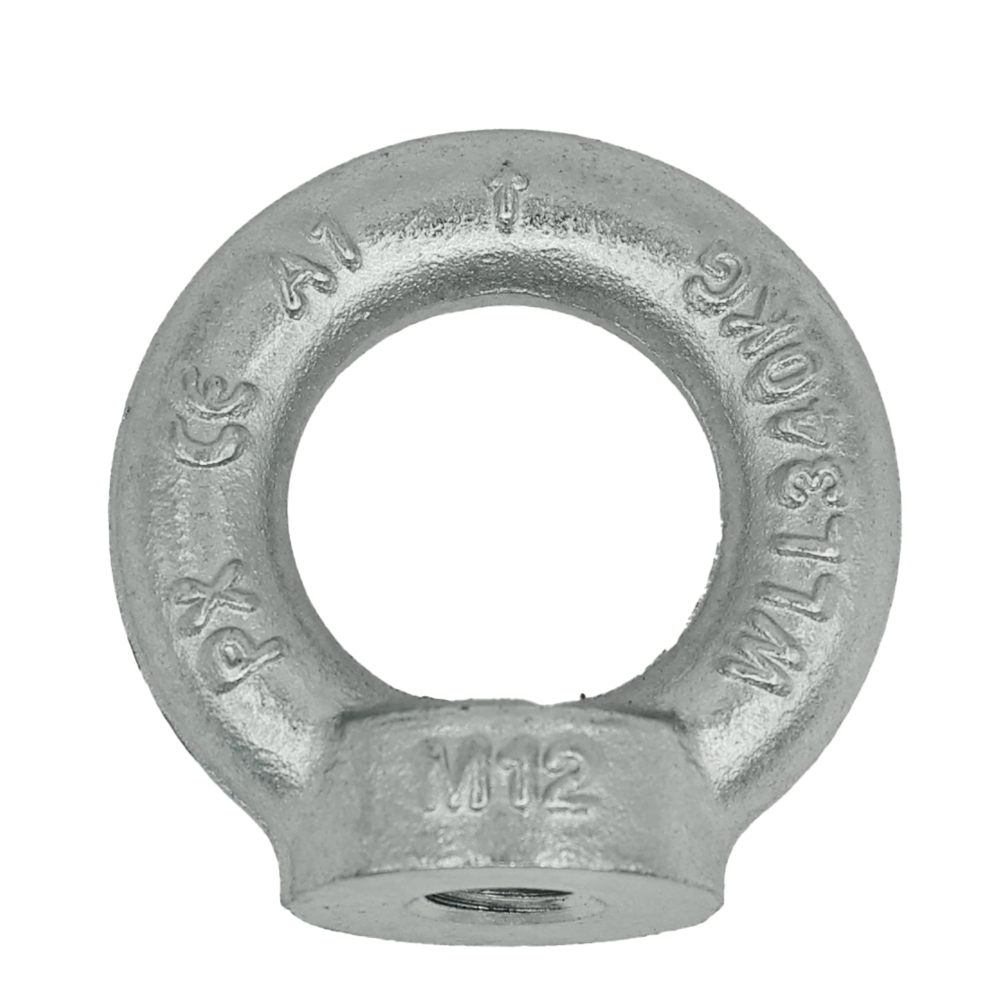

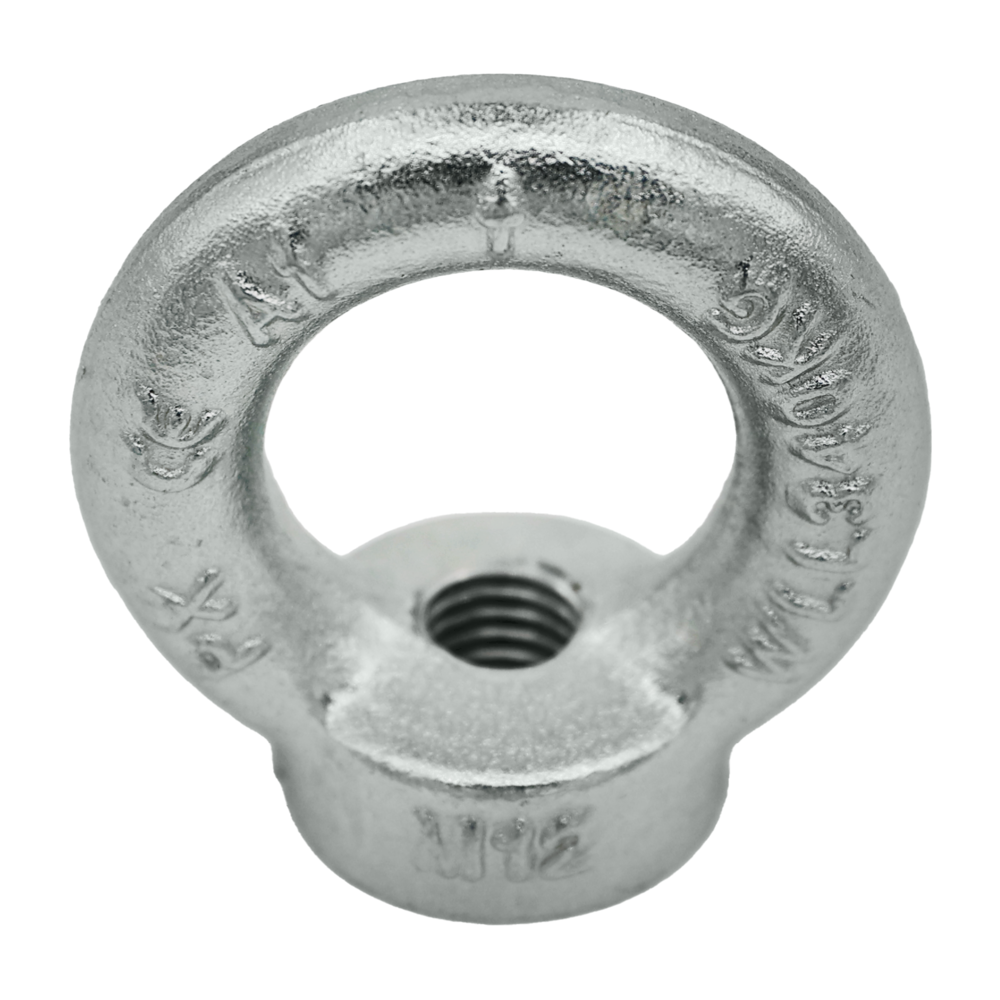

The Powertex LP580 lifting eye nut is a fixed lifting point for permanently attaching to equipment such as motors, control cabinets, and gearboxes. Designed primarily for straight single-point lifts, it must be screwed tightly against the structure or load before lifting. Please check other products in our range for more advanced and versatile lifting points.
Best used for
- Straight single-point lifting of equipment with a suitable threaded connection.
- Permanent lifting points where directional adjustment is not required.
Not ideal for
- Multi-directional lifting. Use a swivel lifting point for greater flexibility.
Product benefits
- Fixed eye provides a simple lifting connection for permanent installations.
- WLL marking and directional arrow support correct load planning.
- WLL table defines applicable reductions for permitted sideways loading.
- Manufactured to meet the testing requirements specified by DIN 580.
- Factory load-tested production samples support consistent product quality.
- Traceability code links components to the production lot and raw materials.
- Electro-galvanized, Chromium 6-free finish provides corrosion protection.
- Full WLL from -20°C to +200°C.
- Material: Carbon Steel C15E
- Marking: According to standard, CE-marked, PX, Material, WLL, Nominal size, Batch number, Arrow indicating the axial direction
- Temperature range: -20°C up to +200°C
- Finish: Electro galvanized
- Standard: DIN 582
- Note: The lifting eyes shall be screwed tight against the surface. Reduce WLL when not loading straight (see table).
- Safety factor: 6:1
Download Document
