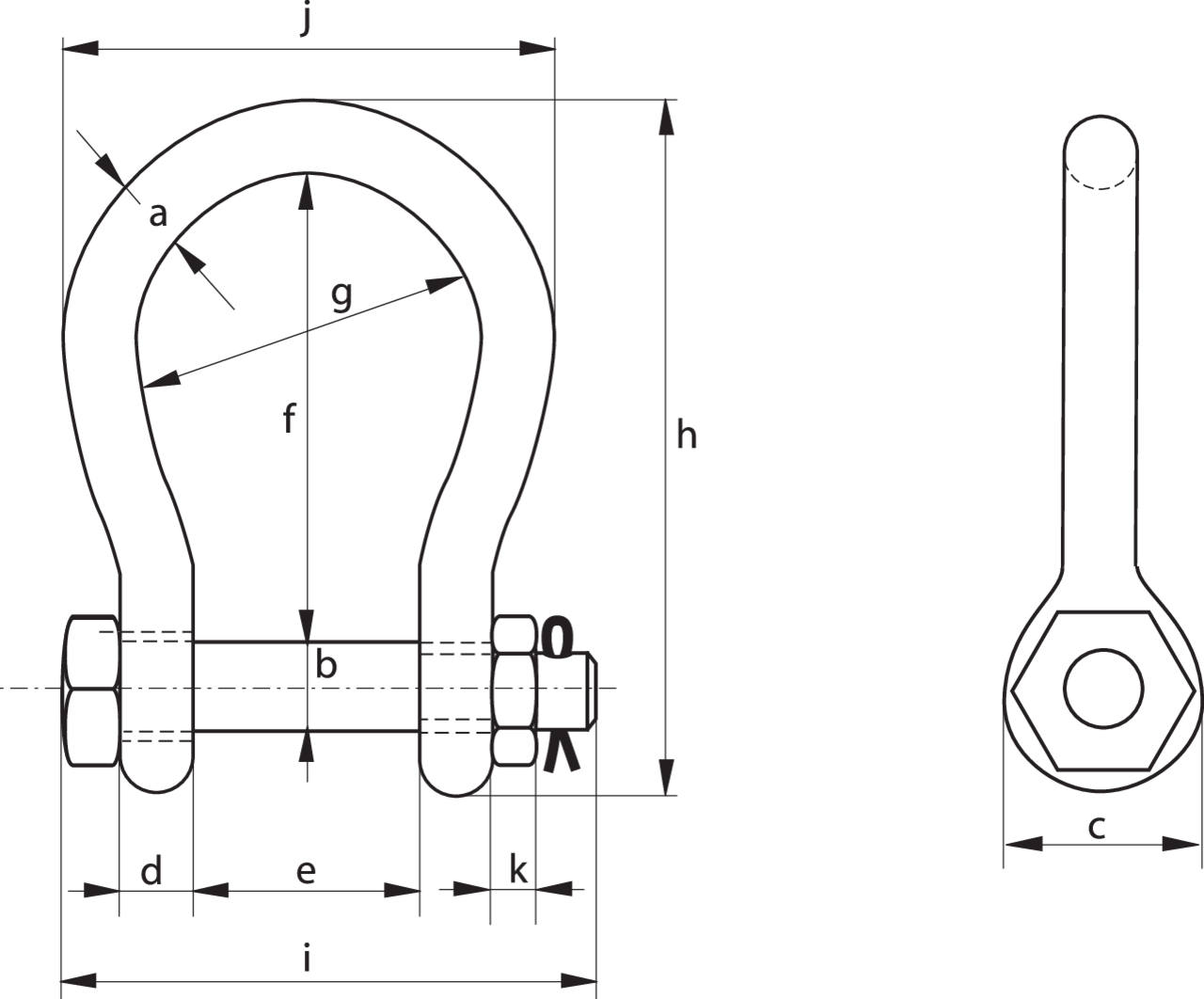

General: Bow shackles with safety bolt.
Certification: This product can be supplied with a works certificate, 3.1 material certificate, manufacturer test certificate and/or EC Declaration of Conformity.
- Medžiaga: Bow and pin alloy steel, Grade 8, quenched and tempered.
- Temperatūros diapazonas: -20°C up to +200°C.
- Padengimas: Hot dipped galvanized.
- Pastaba: This shackle can also be delivered with fixed nut (an extra AISI 316 securing bolt is drilled through both the nut and shackle pin. This securing bolt is fastened with two sets of Nord-Lock®
- Atsargos koeficientas: 6:1
- Klasė: 8


-->> KAINĄ pamatysite žemiau pasirinkę reikiamo dydžio produktą.
Atsisiusti CAD

Atsisiųskite CAD, pasirinkdami norimą produktą iš aukščiau pateiktos lentelės ir formatą iš žemiau esančio meniu. Spustelėkite „Gaukite CAD“ ir po to, kai failas pasikraus 100%, spustelkite atsisiuntimo piktogramą, kad pradėti siuntimą. Atminkite, kad CAD brėžiniai galimi tik tuo atveju, jei piktograma dešinėje lentelės pusėje yra spalvota, o ne pilka.
