The LIFTKET product portfolio offers you standardized hoists that can be adjusted to your requirements in a modular way, as well as highly specialized solutions. Larger lifting and operating heights are just as viable as deviating voltages and special solutions of any kind.

Features:

  • Power supply 400 V, 3 phase, 50 Hz
  • From 125 kg to 6.300 kg we lift everything that moves you
  • FEM ratings from Fem 1Bm to 4m (ISO M3 to M7)
  • Protection class IP55, insulation class F
  • Galvanized load chain to DIN 818-7 quality class DAT
  • A wide range of options can be selected as standard
  • Optional one or two lifting speeds from 2 to 32 m/min.
  • With heavy-duty end position switch-off as standard (at 24VAC)
  • Up to 200 meters high safely and anywhere
  • Patented safety-brake-clutch system
  • Modular hoist design
  • Simply and cost effective maintenance and repair
  • A unique ID makes it possible to trace exactly when a particular electric chain hoist was built by whom and with which materials – even after 10 years

Trolleys/Boogies: Manual or electric trolleys in various designs for each steel section girder.

  • Note: Standard version delivered with lifting eye (connection between crane and trolley). Alternatively, comes with suspension hook. Standard stock hoist with 6 m lifting height.
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Chain falls Duty rating % ED Class ISO/FEM Lifting speed at 50 Hz
m/min
Power of lifting motor at 50 Hz kW Load chain
mm
Weight
kg
CAD
13.05STAR012518-03 030/62 0.125 1 60 M7 / 4m 8 0.55 5,2x15 18
13.05STAR0125182-06 031/53 0.125 1 60/40 M7 / 4m 8/2 0,32/0,08 5,2x15 18
13.05STAR0250112-03 030/50 0.25 1 60 M5 / 2m 12 0.55 5,2x15 18
13.05STAR025014-03 030/65 0.25 1 60 M7 / 4m 4 0.37 5,2x15 18
13.05STAR025018-03 030/64 0.25 1 50 M6 / 3m 8 0.55 5,2x15 18
13.05STAR0250182-06 031/51 0.25 1 50/25 M6 / 3m 8/2 0,32/0,08 5,2x15 18
13.05STAR02501123-03 051/52 0.25 1 40/25 M6 / 3m 12/3 0,55/0,12 5,2x15 33
13.05STAR025011845-03 051/55 0.25 1 60/25 M6 / 3m 18/4,5 0,9/0,2 5,2x15 33
13.05STAR0250124-03 050/52 0.25 1 60 M6 / 3m 24 1.1 5,2x15 33
13.05STAR050014-03 030/54 0.5 1 40 M4 / 1Am 4 0.37 5,2x15 18
13.05STAR050018-03 030/52 0.5 1 40 M3 / 1Bm 8 0.7 5,2x15 18
13.05STAR0500241-03 031/51 0.5 2 50/25 M6 / 3m 4/1 0,32/0,08 5,2x15 21
13.05STAR0500110-03 070/51 0.5 1 60 M5 / 2m 10 1.1 7,2x21 36
13.05STAR0500118-03 050/55 0.5 1 60 M3 / 1Bm 18 1.5 5,2x15 38
13.05STAR050011025-03 071/53 0.5 1 60/25 M5 / 2m 10/2,5 0,9/0,2 7,2x21 42
13.05STAR0500182-06 071/54 0.5 1 60/25 M5 / 2m 8/2 0,9/0,2 7,2x21 42
13.05STAR080018-03 070/54 0.8 1 60 M5 / 2m 8 1.1 7,2x21 36
13.05STAR100014-03 070/61 1 1 60 M5 / 2m 4 0.75 7,2x21 36
13.05STAR100016-03 070/55 1 1 40 M5 / 2m 6 1.1 7,2x21 36
13.05STAR100025-03 070/51 1 2 60 M5 / 2m 5 1.1 7,2x21 41
13.05STAR1000110-03 070/53 1 1 60 M4 / 1Am 10 1.7 7,2x21 42
13.05STAR10001615-06 071/55 1 1 60/25 M5 / 2m 6/1,5 1,1/0,2 7,2x21 42
13.05STAR1000241-03 071/54 1 2 60/25 M5 / 2m 4/1 0,9/0,2 7,2x21 47
13.05STAR100025125-03 071/53 1 2 60/25 M5 / 2m 5/1,25 0,9/0,2 7,2x21 47
13.05STAR100011025-03 091/52 1 1 60/25 M6 / 3m 10/2,5 1,8/0,45 9x27 67
13.05STAR1000182-03 091/51 1 1 60/25 M6 / 3m 8/2 1,8/0,45 9x27 67
13.05STAR160024-03 070/54 1.6 2 60 M5 / 2m 4 1.1 7,2x21 41
13.05STAR160018-03 090/55 1.6 1 60 M5 / 2m 8 2.2 9x27 69
13.05STAR1600182-06 091/55 1.6 1 60/25 M5 / 2m 8/2 3,0/0,75 9x27 88
13.05STAR160011025-03 091/56 1.6 1 60/25 M5 / 2m 10/2,5 3,0/0,75 9x27 88
13.05STAR200023-03 070/55 2 2 40 M5 / 2m 3 1.1 7,2x21 41
13.05STAR200023075-06 071/55 2 2 60/25 M5 / 2m 3/0,75 1,1/0,2 7,2x21 47
13.05STAR200025-03 070/53 2 2 60 M4 / 1Am 5 1.7 7,2x21 47
13.05STAR2000241-03 091/51 2 2 60/25 M6 / 3m 4/1 1,8/0,45 9x27 76
13.05STAR200025125-03 091/52 2 2 60/25 M6 / 3m 5/1,25 1,8/0,45 9x27 76
13.05STAR200018-03 110/54 2 1 60 M5 / 2m 8 4 11,3x31 90
13.05STAR2000182-03 111/56 2 1 60/25 M5 / 2m 8/2 3,0/0,75 11,3x31 90
13.05STAR250024-03 090/55 2.5 2 60 M6 / 3m 4 2.2 9x27 78
13.05STAR250018-03 110/54 2.5 1 60 M4 / 1Am 8 4 11,3x31 90
13.05STAR2500110-03 110/52 2.5 1 60 M5 / 2m 10 4 11,3x31 90
13.05STAR2500241-03 091/55 2.5 2 60/25 M6 / 3m 4/1 3,0/0,75 9x27 97
13.05STAR250025125-03 091/56 2.5 2 60/25 M6 / 3m 5/1,25 3,0/0,75 9x27 97
13.05STAR250011025-03 111/52 2.5 1 40/25 M5 / 2m 10/2,5 4,4/1,1 11,3x31 118
13.05STAR2500182-03 111/54 2.5 1 25/25 M4 / 1Am 8/2 4,4/1,1 11,3x31 118
13.05STAR320024-03 090/55 3.2 2 60 M5 / 2m 4 2.2 9x27 78
13.05STAR320018-03 110/54 3.2 1 60 M3 / 1Bm 8 4 11,3x31 90
13.05STAR3200241-03 091/55 3.2 2 60/25 M5 / 2m 4/1 3,0/0,75 9x27 97
13.05STAR320025125-03 091/56 3.2 2 60/25 M5 / 2m 5/1,25 3,0/0,75 9x27 97
13.05STAR3200182-03 111/54 3.2 1 25/25 M3 / 1Bm 8/2 4,4/1,1 11,3x31 118
13.05STAR400024-03 110/54 4 2 60 M5 / 2m 4 4 11,3x31 102
13.05STAR4000241-03 111/56 4 2 60/25 M5 / 2m 4/1 4,4/1,1 11,3x31 130
13.05STAR500024-03 110/54 5 2 60 M3 / 1Bm 4 4 11,3x31 102
13.05STAR500025-03 110/52 5 2 60 M5 / 2m 5 4 11,3x31 102
13.05STAR500025125-03 111/52 5 2 40/25 M5 / 2m 5/1,25 4,4/1,1 11,3x31 130
13.05STAR6300241-03 111/54 6.3 2 25/25 M3 / 1Bm 4/1 4,4/1,1 11,3x31 130

Part Code = last two digits indicates the lifting height: 03 = 3 m lifting height
* Weight with 3 m lift chain

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download

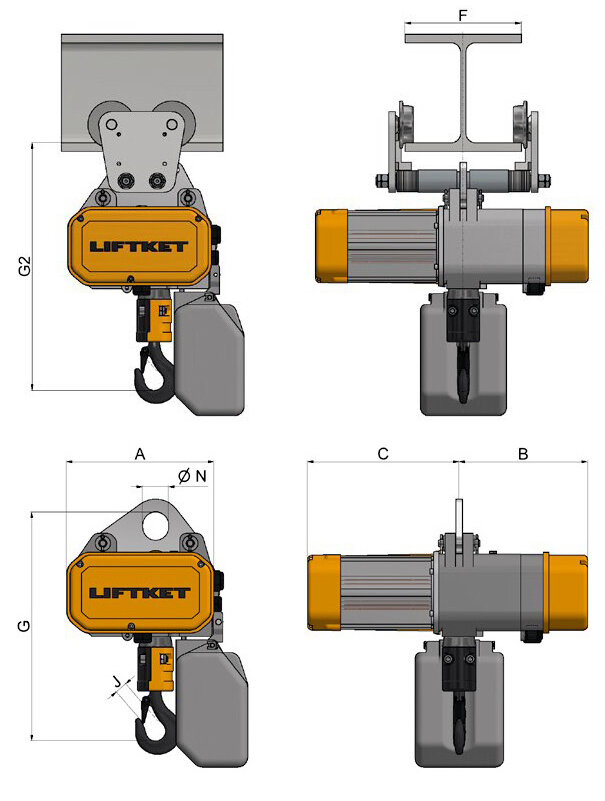

Code A B C G G2 ø N J
  (mm) (mm) (mm) (mm) (mm) (mm) (mm)
030/62
212 192 220 380 406 25 20
031-53
212 192 220 380 406 25 20
030/50
212 192 220 380 406 25 20
030/65
212 192 220 380 406 25 20
030/64
212 192 220 380 406 25 20
031/51
212 192 220 380 406 25 20
051/52
266 232 274 388 436 35 20
051/55
266 232 274 388 436 35 20
050/52
266 232 274 388 436 35 20
030/54
212 192 220 380 406 35 20
030/52
212 192 220 428 454 25 22
031/51
212 192 220 380 415 35 20
070/51
266 232 274 413 460 35 22
050/55
266 232 274 413 460 35 22
071/53
266 232 274 413 460 35 22
071/54
266 232 274 388 436 35 20
071/54
266 232 274 413 460 35 22
070/61
266 232 274 413 561 35 22
070/55
266 232 274 514 561 35 28
070/51
266 232 274 514 561 35 28
070/53
266 232 274 514 561 35 28
071/55
266 232 274 413 460 35 22
071/54
266 232 274 413 460 35 22
071/53
359 283 359 513 548 40 28
091/52
266 232 274 413 460 35 22
091/51
359 283 359 513 548 40 28
070/54
266 232 274 514 561 35 28
090/55
359 283 359 513 548 40 28
091/55
359 283 359 513 548 40 28
091/56
359 283 359 513 548 40 28
070/55
266 232 274 514 561 35 28
071/55
266 232 274 514 561 35 28
070/53
359 283 359 620 655 40 30
091/51
266 232 274 514 561 35 28
091/52
359 283 359 620 655 40 30
110/54
359 291 367 611 678 50 30
111/56
359 291 410 611 678 50 30
090/55
359 283 359 620 655 40 30
110/54
359 283 359 620 655 40 30
110/52
359 283 359 620 655 40 30
091/55
359 291 367 611 678 50 30
091/56
359 291 410 611 678 50 30
111/52
359 291 367 611 678 50 30
111/54
359 291 410 611 678 50 30
090/55
359 283 359 620 655 40 30
110/54
359 283 359 620 655 40 30
091/55
359 283 359 620 655 40 30
091/56
359 291 367 611 678 50 30
111/54
359 291 410 611 678 50 30
110/54
359 291 367 740 807 50 42
111/56
359 291 410 740 807 50 42
110/54
359 291 367 740 807 50 42
110/52
359 291 410 740 807 50 42
111/52
359 291 367 740 807 50 42
111/54
359 291 410 740 807 50 42
