General:
The KITO LB leverhoist is built with premium grade components and makes it particularly suitable for continious operation under most severe conditions.
Standard lifting height 1.5 m

Features:

  • Standard supplied with a unique freewheel chain adjusting mechanism with overload protection.
  • Rugged and ergonomic lever handle.
  • Smooth geared mechanism for effortless handling.
  • Robust mechanical load brake increases the safety of the operator.
  • Double-reduction gearing requires minimum manual power for operation at full load.
  • Open load sheave allows easy inspection and cleaning without dismantling the unit.
  • Sealed gears and brake are protected against damage from dust and water.
  • Fourfold riveted and forged carbon steel bottom hook.
  • Abrasion-resistant nickel-plated load chain V(G100) for high and uniform strength (1000 N/mm2), in accordance with standard DIN EN 818-7

Optional:

  • Friction clutch
  • Overload signal
  • Wire rope clip
  • Shipyard hooks
  • Without freewheel mechanism
  • Material: High grade Steel housing, nickel-plated load chain, Carbon steel hooks
  • Marking: CE-marked
  • Warning: Minimum load is needed for the load pressure brake to work correct.
  • Safety factor: 4:1
Kíto LB016
KITO LB016OF
KITO LBOLL
KITO Freewheel1
KITO Freewheel2

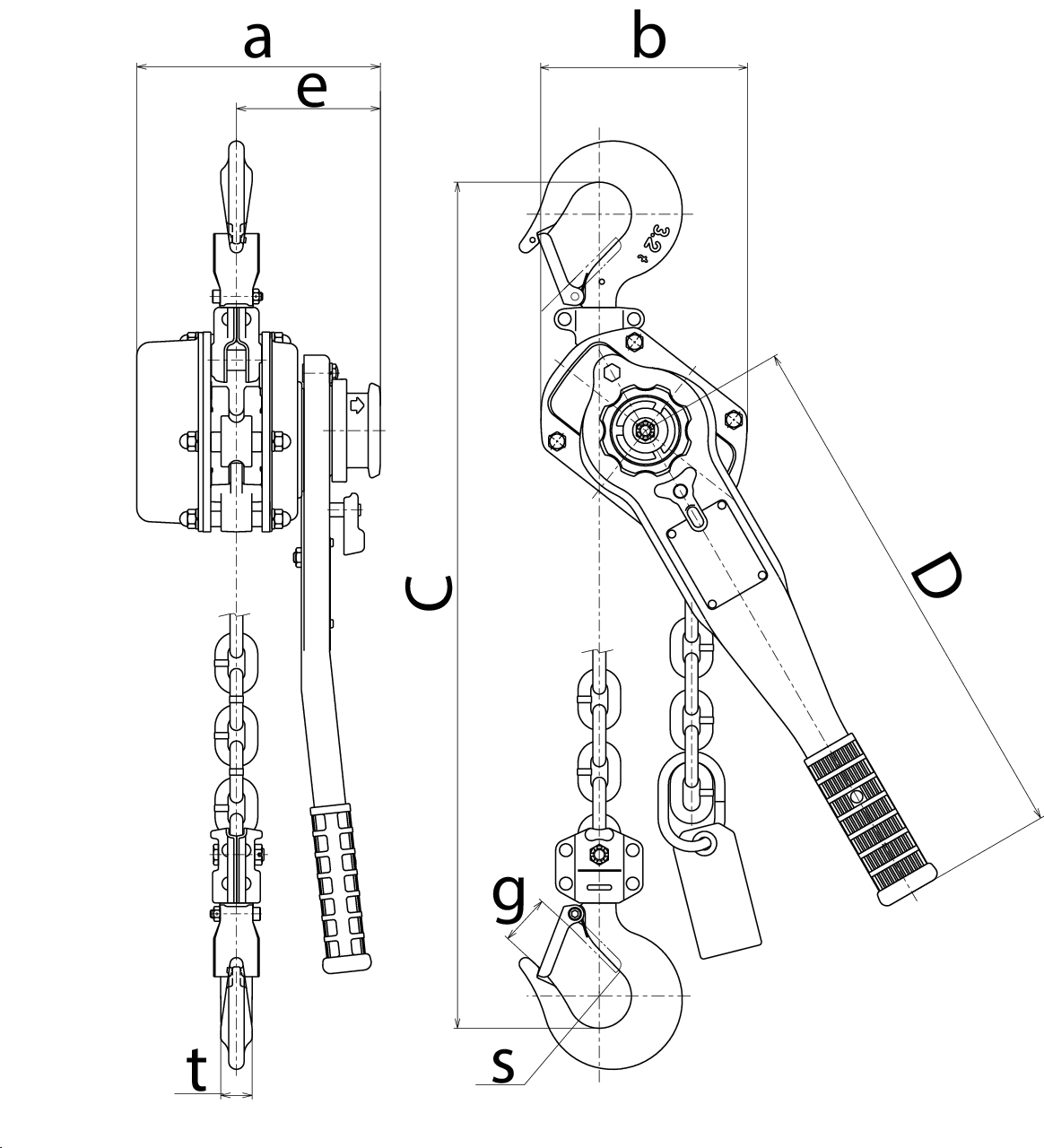

Kito Drawing
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Lifting height
m
Min. load
kg
Hand pull to lift full load
daN
Load chain Ø
mm
Chain falls A
mm
B
mm
C
mm
D
mm
e
mm
g
mm
S
mm
t
mm
Weight
kg
CAD
16.20LB008S015 LB008 0.8 1.5 25 28,4 5,6 x 15,7 1 114 119 280 245 97 23,5 32.5 14 5.7
16.20LB010S015 LB010 1 1.5 25 35,3 5,6 x 15,7 1 114 119 300 245 97 29 42.5 15 5.9
16.20LB016S015 LB016 1.6 1.5 38 33,3 7,1 x 19,9 1 159 126 335 265 100 32 42.5 19 8
16.20LB025S015 LB025 2.5 1.5 54 36,3 8,8 x 24,6 1 173 150 375 265 102 36.5 47 21 11.2
16.20LB032S015 LB032 3.2 1.5 35 36,3 10,0 x 28,0 1 190 159 395 415 112 39 50 24.5 15
16.20LB063S015 LB063 6.3 1.5 90 37,2 10,0 x 28,0 2 190 217 540 415 112 50 60 34 26
16.20LB090S015 LB090 9 1.5 130 38,2 10,0 x 28,0 3 190 304 680 415 112 72,5 85 41.5 40
*Weight with 1,5 m standard lifting height.
The last 2 digits in the Art No indicates the lifting height.
