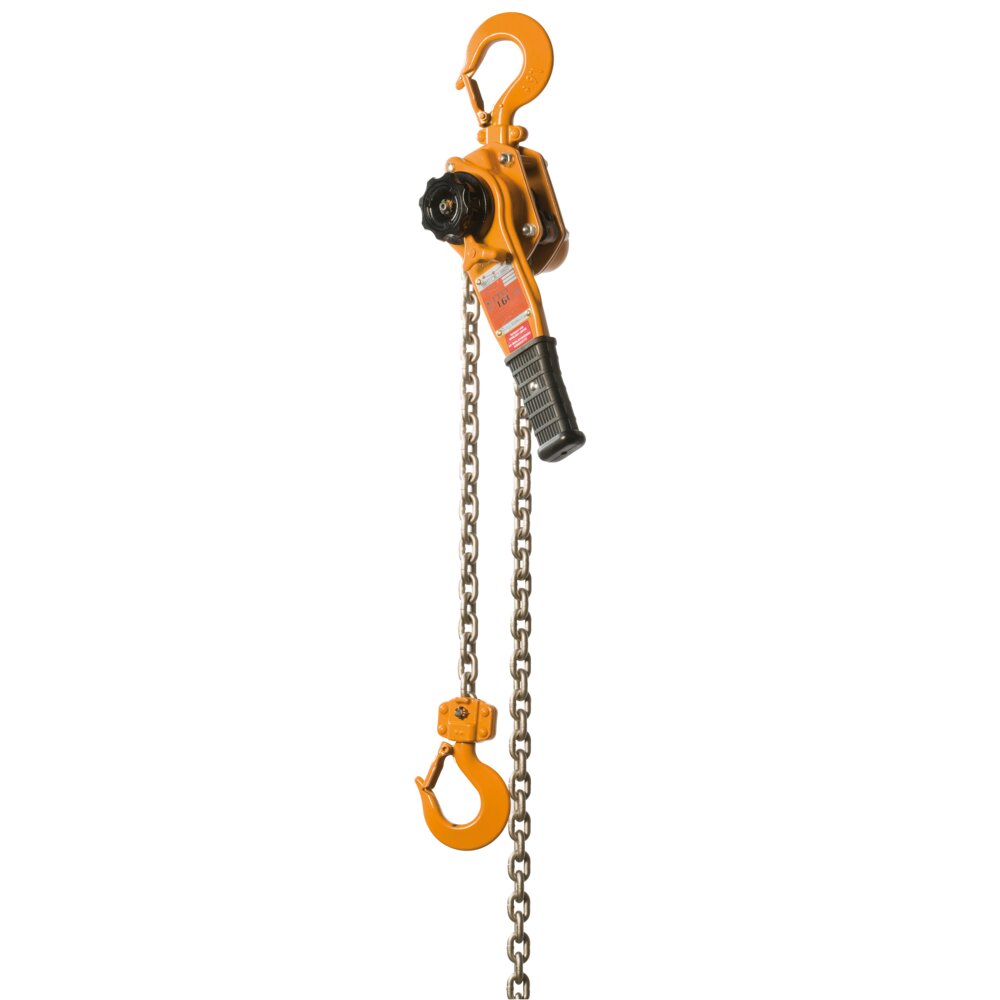

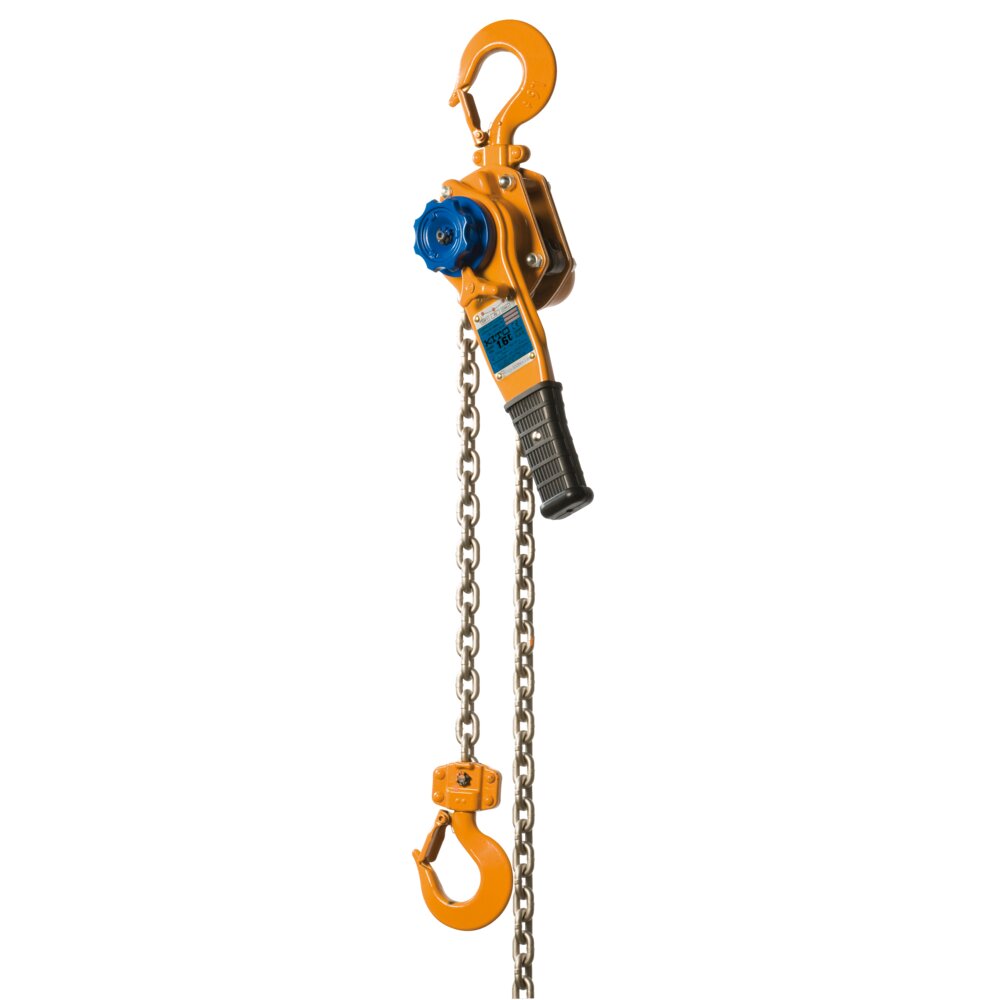

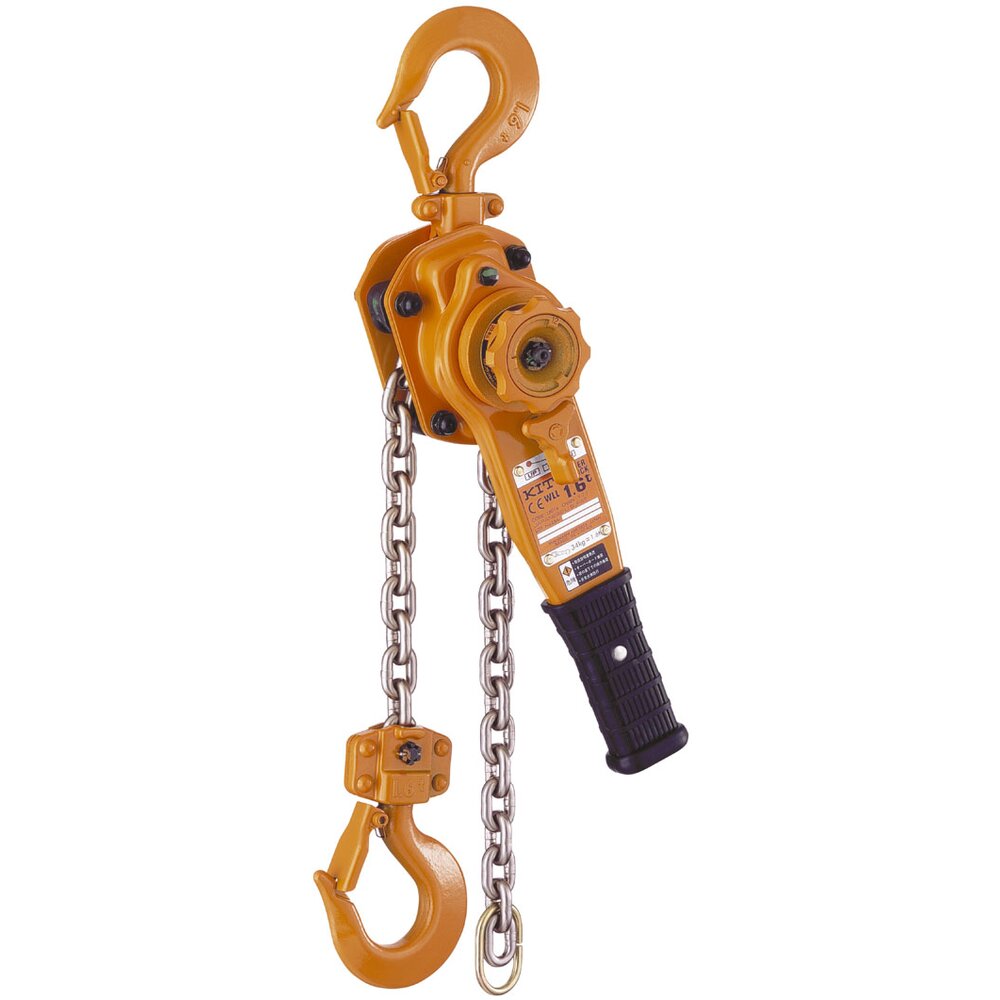

Lever Hoist KITO LB Series

Kito

The KITO LB leverhoist is built with premium grade components and makes it particularly suitable for continuous operation under most severe conditions.

Features:

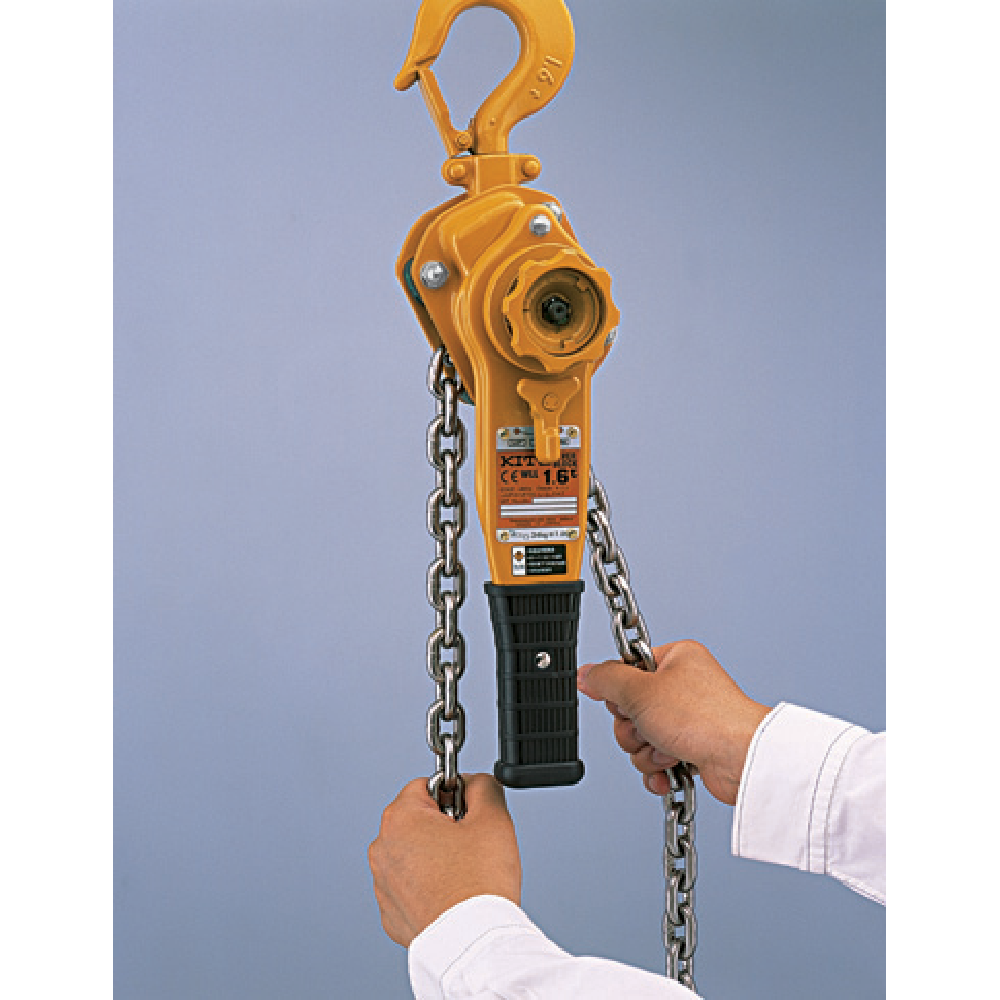

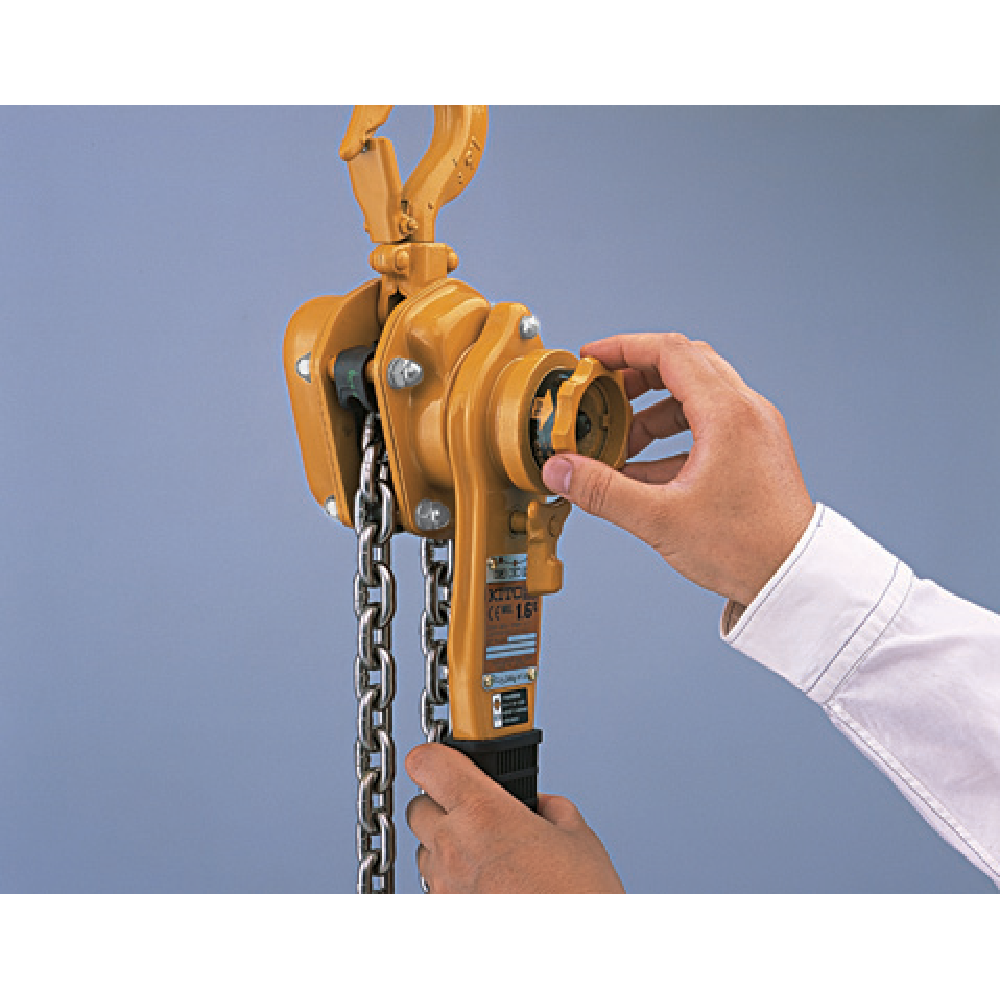

  • Standard supplied with a unique freewheel chain adjusting mechanism with overload protection.
  • Rugged and ergonomic lever handle.
  • Smooth geared mechanism for effortless handling.
  • Robust mechanical load brake increases the safety of the operator.
  • Double-reduction gearing requires minimum manual power for operation at full load.
  • Open load sheave allows easy inspection and cleaning without dismantling the unit.
  • Sealed gears and brake are protected against damage from dust and water.
  • Fourfold riveted and forged carbon steel bottom hook.
  • Abrasion-resistant nickel-plated load chain V(G100) for high and uniform strength (1000 N/mm2), in accordance with standard DIN EN 818-7.

Optional:

  • Friction clutch
  • Overload signal
  • Wire rope clip
  • Shipyard hooks
  • Without freewheel mechanism
  • Material: High grade Steel housing, nickel-plated load chain, Carbon steel hooks
  • Marking: CE-marked
  • Warning: Minimum load is needed for the load pressure brake to work correct.
  • Safety factor: 4:1
