General: We recommend this type of wall jib crane for lifting and handling of lightweight items. Our standard programme has been designed in load groups from 30 kg up to 800 kg. All these wall mounted swing cranes are designed with a jib arm in a special C-profile characterized by a very low net weight as well as a very smooth running trolley.
Design: Lightweight welded beam construction providing good torsional stiffness.
Proof load: Usually 1,5 x WLL.

  • Material: Beam and plate of high-strength structural steel.
  • Marking: Working load limit (WLL), CE marking, manufacturer, serial number, year of manufacturing, etc.
  • Finish: Yellow painted. Other treatments available on request.

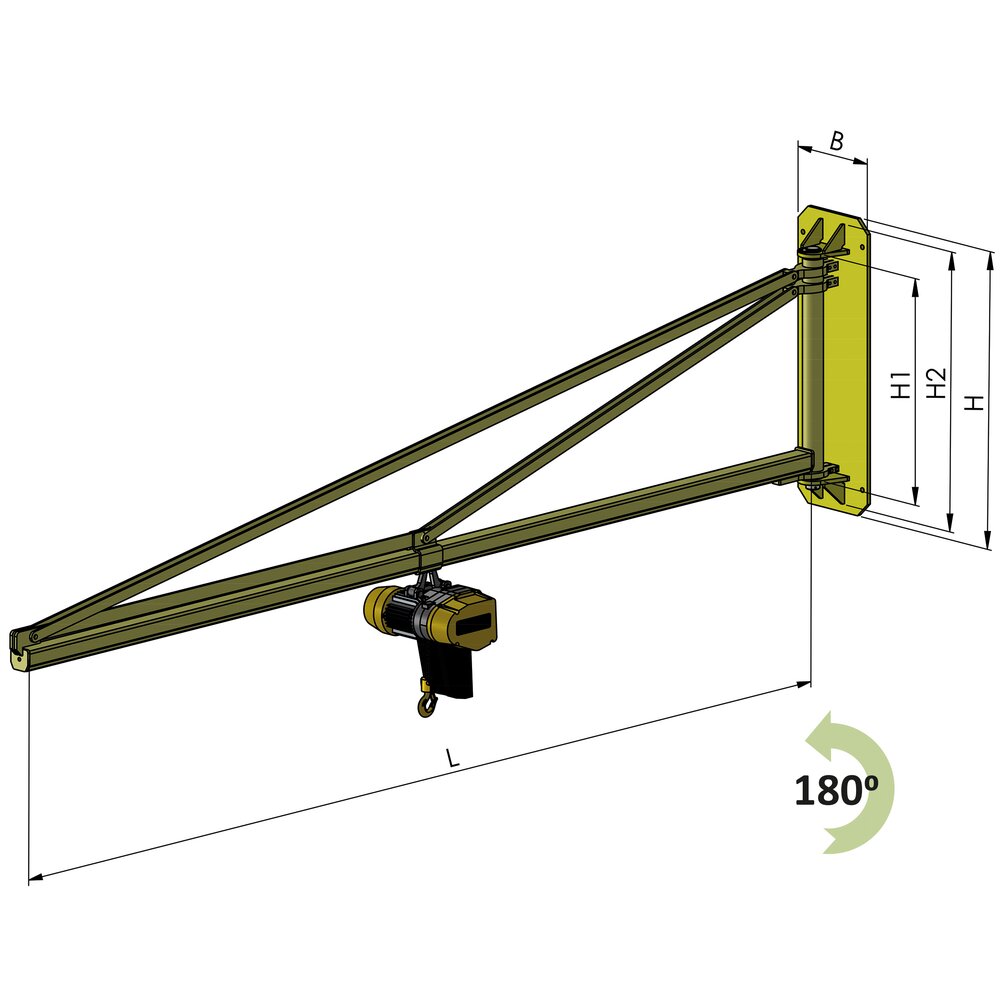

    Wall jib crane type VK-C for lifting and handling of lightweight items.
    Select a row from the table, then click the add to cart button
    Part Code WLL
    ton
    Type Number of brace Profile No. Max. hoist weight
    kg
    Max. total weight
    kg
    L
    mm
    H
    mm
    H1
    mm
    H2
    mm
    B
    mm
    13.2153-10302000 0,03 VK-C-30/2 1 24 000 15 45 2 000 800 500 600 250
    13.2153-10304000 0,03 VK-C-30/4 1 25 000 15 45 4 000 800 500 600 250
    13.2153-10303000 0,03 VK-C-30/3 1 24 000 15 45 3 000 800 500 600 250
    13.2153-10502000 0,05 VK-C-50/2 1 25 000 15 65 2 000 800 500 600 250
    13.2153-10503000 0,05 VK-C-50/3 1 25 000 15 65 3 000 800 500 600 250
    13.2153-10504000 0,05 VK-C-50/4 2 25 000 15 65 4 000 800 500 600 250
    13.2153-10802000 0,08 VK-C-80/2 1 25 000 15 95 2 000 800 500 600 250
    13.2153-10803000 0,08 VK-C-80/3 2 25 000 15 95 3 000 800 500 600 250
    13.2153-10804000 0,08 VK-C-80/4 2 25 000 15 95 4 000 800 500 600 250
    13.2153-11252000 0,125 VK-C-125/2 1 25 000 15 140 2 000 1 000 750 800 350
    13.2153-11253000 0,125 VK-C-125/3 2 25 000 15 140 3 000 1 000 750 800 350
    13.2153-11254000 0,125 VK-C-125/4 2 25 000 15 140 4 000 1 000 750 800 350
    13.2153-11255000 0,125 VK-C-125/5 3 25 000 15 140 5 000 1 000 750 800 350
    13.2153-11256000 0,125 VK-C-125/6 3 25 000 15 140 6 000 1 000 750 800 350
    13.2153-12505000 0,25 VK-C-250/5 3 26 000 15 265 5 000 1 000 750 800 350
    13.2153-12506000 0,25 VK-C-250/6 3 26 000 15 265 6 000 1 000 750 800 350
    13.2153-12502000 0,25 VK-C-250/2 1 26 000 15 265 2 000 1 000 750 800 350
    13.2153-12504000 0,25 VK-C-250/4 2 26 000 15 265 4 000 1 000 750 800 350
    13.2153-12503000 0,25 VK-C-250/3 2 26 000 15 265 3 000 1 000 750 800 350
    13.2153-15002000 0,5 VK-C-500/2 1 27 000 30 530 2 000 1 000 750 850 400
    13.2153-15003000 0,5 VK-C-500/3 2 27 000 30 530 3 000 1 000 750 850 400
    13.2153-15004000 0,5 VK-C-500/4 2 27 000 30 530 4 000 1 000 750 850 400
    13.2153-15005000 0,5 VK-C-500/5 3 27 000 30 530 5 000 1 000 750 850 400
    13.2153-15006000 0,5 VK-C-500/6 3 27 000 30 530 6 000 1 000 750 850 400
    13.2153-18002000 0,8 VK-C-800/2 1 27 000 30 830 2 000 1 000 750 850 400
    13.2153-18003000 0,8 VK-C-800/3 2 27 000 30 830 3 000 1 000 750 850 400
    13.2153-18004000 0,8 VK-C-800/4 2 27 000 30 830 4 000 1 000 750 850 400
    13.2153-18005000 0,8 VK-C-800/5 3 27 000 30 830 5 000 1 000 750 850 400
    13.2153-18006000 0,8 VK-C-800/6 3 27 000 30 830 6 000 1 000 750 850 400
