We recommend this type of pillar jib crane for lifting and handling of loads heavier than 500 kg. Our standard programme has been designed in load groups from 500 kg up to 3.200 kg. All these jib cranes are designed with an IPE-profile jib arm, which is ideal for use together with an electrical trolley.
The cranes are assembled with a separate C-profile for cable, hose etc.
Electrical chainhoist: When using an electrical chain hoist we can offer a wide selection of hoists as well as electrical and manual trolleys. We recommend an electrical trolley for this type of crane.
Design: Lightweight welded beam construction providing good torsional stiffness.
Proof load: Usually 1,5 x WLL.

  • Material: Beam and plate of high-strength structural steel.
  • Marking: Working load limit (WLL), CE marking, manufacturer, serial number, year of manufacturing, etc.
  • Finish: Yellow painted. Other treatments available on request.

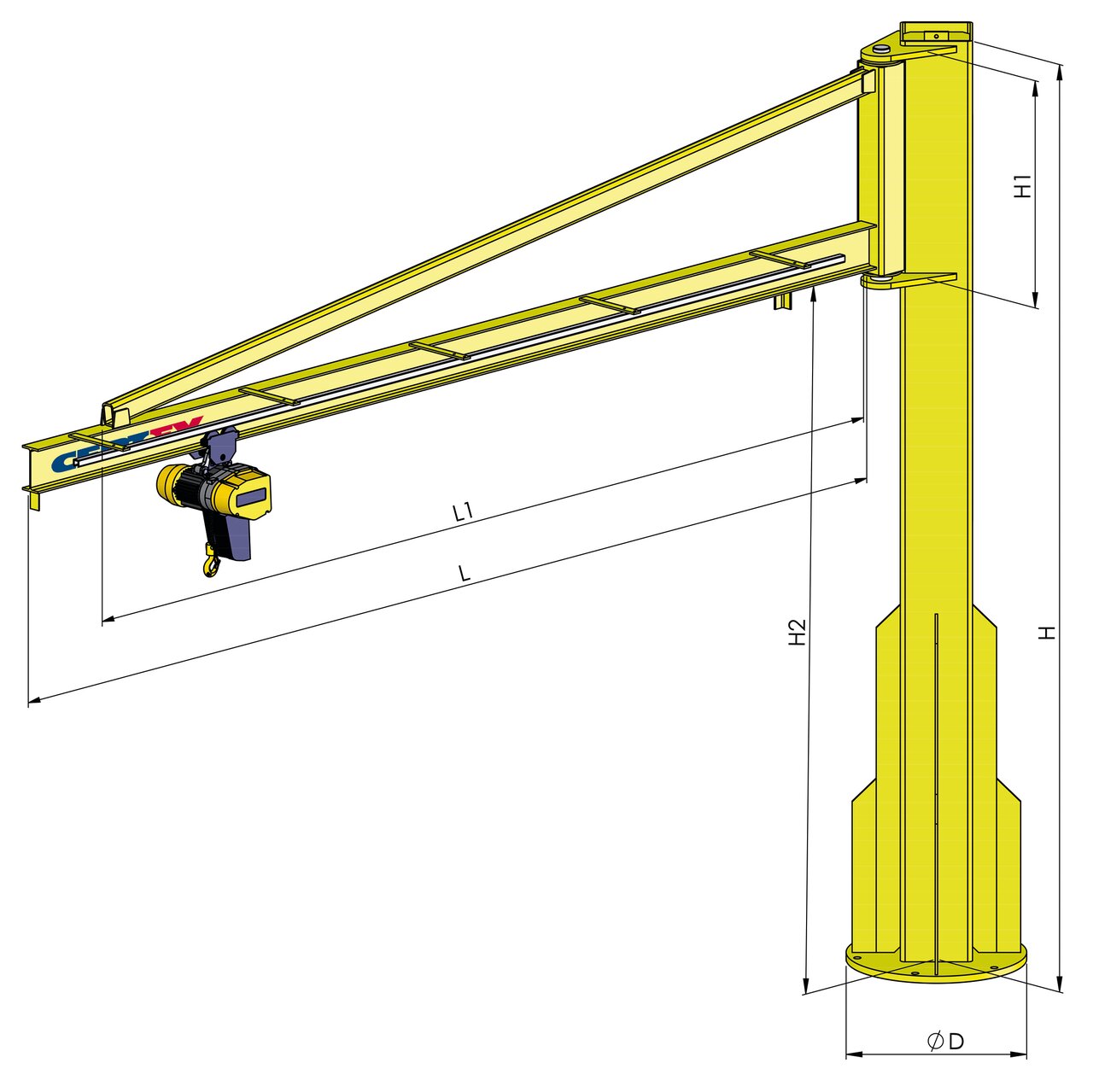

    Pillar Jib Crane Type SK-I measurements
    Pillar Jib Crane Type SK-I documentation
    Select a row from the table, then click the add to cart button
    Part Code WLL
    ton
    Type Max. hoist weight
    kg
    Max. total weight
    kg
    IPE Flange width
    mm
    L
    mm
    L1
    mm
    H
    mm
    H1
    mm
    H2
    mm
    Ø D
    mm
    13.2052-20053000 0,5 SK-I-500/3 55 555 120 64 3 000 2 500 4 000 750 3 285 580
    13.2052-20054000 0,5 SK-I-500/4 55 555 140 73 4 000 3 500 4 000 750 3 285 580
    13.2052-20055000 0,5 SK-I-500/5 55 555 160 82 5 000 4 500 4 000 750 3 285 580
    13.2052-20056000 0,5 SK-I-500/6 55 555 160 82 6 000 5 500 4 000 750 3 285 680
    13.2052-20103000 1 SK-I-1000/3 58 1 058 140 73 3 000 2 500 4 000 750 3 285 580
    13.2052-20104000 1 SK-I-1000/4 58 1 058 160 82 4 000 3 500 4 000 750 3 285 680
    13.2052-20105000 1 SK-I-1000/5 58 1 058 180 91 5 000 4 500 4 000 1 000 3 070 680
    13.2052-20106000 1 SK-I-1000/6 58 1 058 200 100 6 000 5 500 4 000 1 000 3 070 810
    13.2052-20203000 2 SK-I-2000/3 88 2 088 180 91 3 000 2 500 4 000 1 000 3 070 680
    13.2052-20204000 2 SK-I-2000/4 88 2 088 200 100 4 000 3 500 4 000 1 000 3 070 810
    13.2052-20323000 3,2 SK-I-3200/3 142 3 342 200 100 3 000 2 500 4 000 1 000 3 070 810
    13.2052-20324000 3,2 SK-I-3200/4 142 3 342 240 120 4 000 3 500 4 000 1 000 3 070 810
