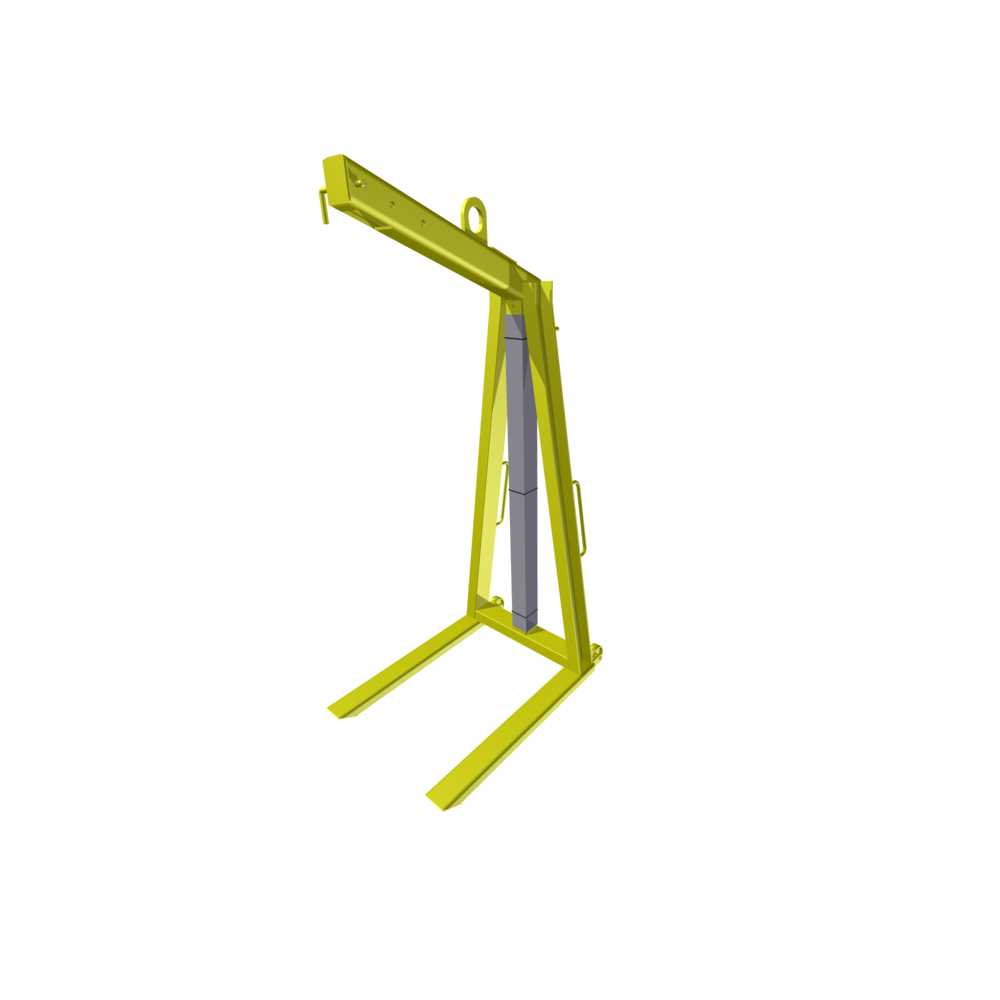

Pallet fork for handling of standard pallets from the long side.
Design: Thanks to the spring-loaded lifting eye, the pallet fork is self-balancing, which means that the forks are always horizontal, regardless of whether the pallet fork is empty or loaded. Please note the minimum load specified in the table. Concealed spring and linkage.
Proof: Batch proof 2 x max load.

  • Material: Beam and plate of high-strength structural steel.
  • Marking: Minimum load, maximum load and CE-marking.
  • Finish: Yellow painted.
  • Note: :Other sizes and designs are available upon request. For custom made forks the type has some restrictions regarding small loads and low profile goods (measure H).
    Self-blancing pallet fork for lifting ordinary pallets along the long side. RAL-1003
    Select a row from the table, then click the add to cart button
    Part Code Code WLL
    ton
    Height
    m
    Min load
    kg
    Tp max*
    mm
    A
    mm
    E
    mm
    H
    mm
    L
    mm
    S
    mm
    Weight
    kg
    13.306022F 6022-F 1,5 1,5 300 500 700 980 1 500 485 50 86
    13.306020F 6020-F 2 1,5 300 400 700 800 1 500 485 50 80
    13.306023F 6023-F 2,5 1,5 300 500 700 980 1 500 515 60 100
    13.306021F 6021-F 3 1,5 300 400 700 800 1 500 515 60 92

    *The "Tp max" value is valid for maximum load. The pallet forks can be used with a greater point of balance if the load is reduced.
