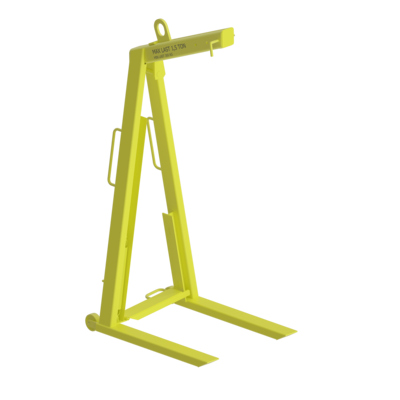

For handling of standard pallets from the long side.
Design: Thanks to the spring-loaded lifting eye, the pallet fork is self-balancing, which means that the forks are always horizontal, regardless of whether the pallet fork is empty or loaded. Please note the minimum load specified in the table. Concealed spring and linkage. The 6044 model has extra thin forks (size S).
When folded down, the pallet fork must not be used for lifting.
Proof: Batch proof 2 x max load.
- Material: Beam and plate of high-strength structural steel.
- Marking: Maximum load and CE-marking.
- Finish: Yellow painted.
- Note: Other sizes and designs are available upon request. For customer made forks the type has some restrictions regarding small loads and low built goods (measure H).
