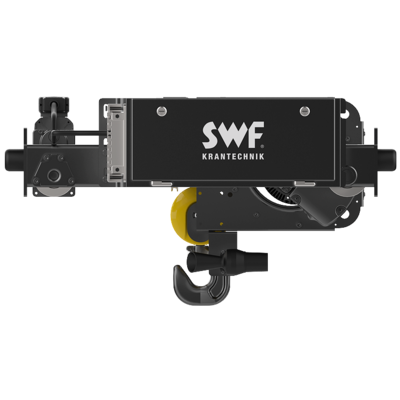

General: The NOVA Blackline meets the high demands of a SWF hoist in regards to safety, quality and reliability.

- Ultimate load from 2-12,5 tons and a lifting weight up to 12 meters
- Optimal space and land utilization due to compact headroom and optimum hook dimension
- Minimized attrition of rope by a big drum diameter
- Robust contactor control for hoist motor and trolley motor
- Mechanical overload protection protects crane and building structure
- Plug and play - quick and easy installation and maintenance
- Overheat protection

-->> KAINĄ pamatysite žemiau pasirinkę reikiamo dydžio produktą.
Tipas Kėlimo aukštis
m
Maks. apkrova
kg
FEM Kėlimo greitis
m/min.
ISO Pervažiavimo greitis
m/min
NOVA BB 6 2 000 2m 5/0,8 M5 20/5
NOVA BB 9,5 2 000 2m 5/0,8 M5 20/5
NOVA BB 6 2 500 3m 5/0,8 M6 20/5
NOVA BB 9,5 2 500 3m 5/0,8 M6 20/5
NOVA BB 6 3 200 2m 5/0,8 M5 20/5
NOVA BB 9,5 3 200 2m 5/0,8 M5 20/5
NOVA BC 6 4 000 3m 5/0,8 M6 20/5
NOVA BC 9 4 000 3m 5/0,8 M6 20/5
NOVA BC 6 5 000 2m 5/0,8 M5 20/5
NOVA BC 9 5 000 2m 5/0,8 M5 20/5
NOVA BC 6 6 300 1Am 4/0,7 M4 20/5
NOVA BC 9 6 300 1Am 4/0,7 M4 20/5
NOVA BD 9 8 000 3m 5/0,8 M6 20/5
NOVA BD 12 8 000 3m 5/0,8 M6 20/5
NOVA BD 9 10 000 2m 5/0,8 M5 20/5
NOVA BD 12 10 000 2m 5/0,8 M5 20/5
NOVA BD 9 12 500 1Am 4/0,7 M4 24/6
NOVA BD 12 12 500 1Am 4/0,7 M4 24/6
