General: Electric hoist for material lifting and pulling.
Proven technology in numerous applications.

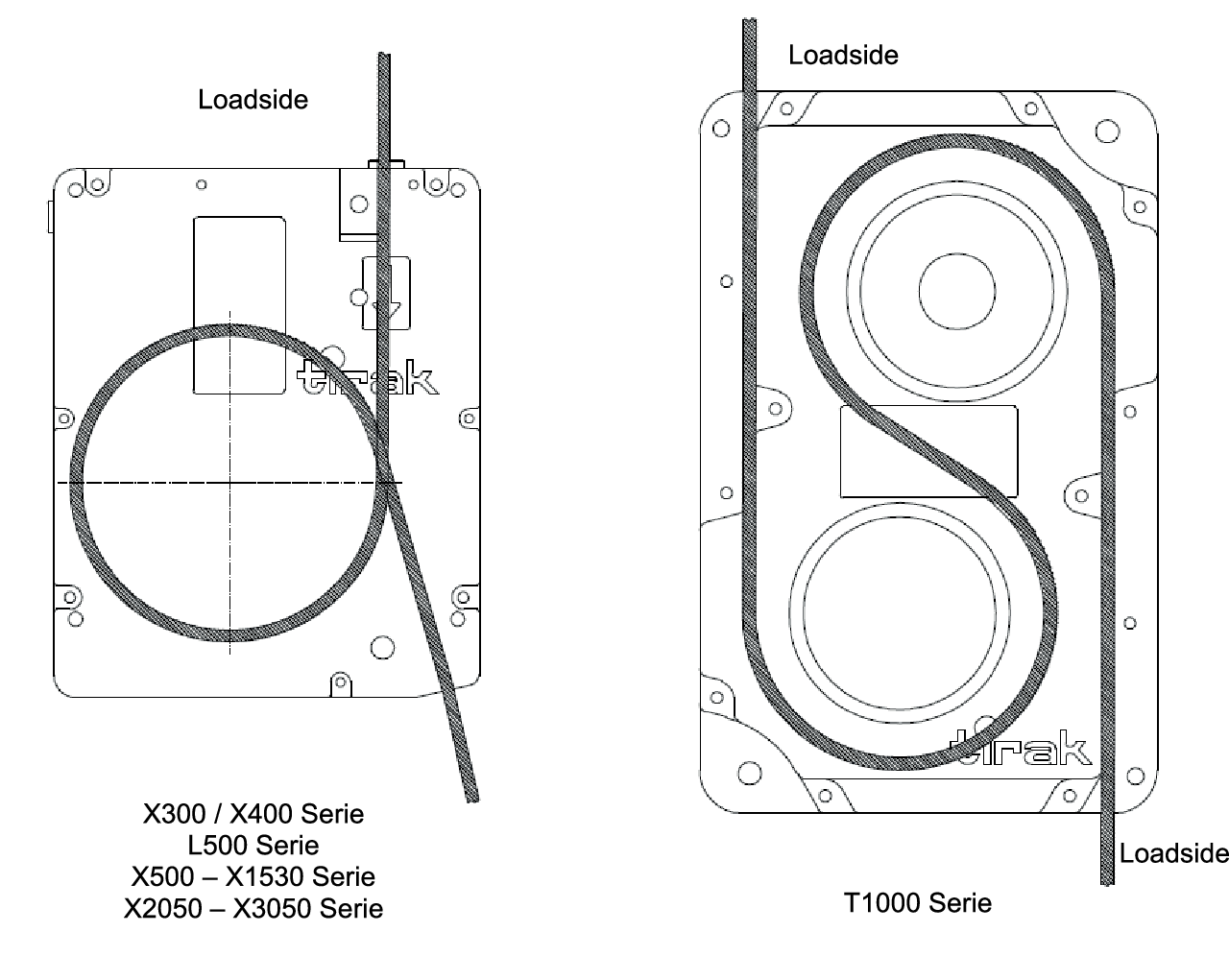

The models of our Tirak™ X-type traction hoist are lighter and can therefore ideally be used when a low weight for the application is essential. The X models have only a single drive disc. The grip of the wire rope on the pulley is obtained by springloaded pressure rollers.

The advantage of the T type models is their ability to pull into both directions. The hoists of the T-series have two clamping wheels. The wire rope travels around the two pulleys along an „S“-path.

Technical details Tirak X- and T-type hoists for material handling:

Our Tirak models are available in following wire rope speed versions:
for X 300 to X 1530 (depending on model):
4,5 m/min, 9 m/min, 18 m/min, 4,5/9 m/min, 4,5/18 m/min, 9/18 m/min for X 3050 P:
6 m/min, 12 m/min, 6/12 m/min

  • Unlimited height of lift; the wire rope is not stored in the machine.
  • Compared to its capacity (up to 3.000 kg), the Tirak is very easy to handle and extremely compact, and may be simply moved from site to site.
  • Centrifugal brake for controlled descent in case of powerfailure.
  • Pendant control with up/down and emergency stop.
  • Cable length 3 m.
  • They can move loads to-and-from.
  • Extremely reliable: Less maintenance, higher productivity and better efficiency.
  • Compact design: Easy installation and incorporation in your specific application.
  • Light weight: This maximizes the usable workload for better efficiency.
  • Stability: Constant lifting torque and speed, independent from lifting height.
  • Flexibility: Power supply in your required voltage, or also air powered possible.

  • Note: Excl. wire (to be ordered separately).
TGZ catalogue 2014 pages 22-26-4
Tirak for man riding_dwg
Select a row from the table below, then click the add to quote button
Code Diameter
mm
WLL
ton
Weight
kg
Power* kW CAD
X 300 8 0.3 27/29 0,45 - 0,9
X 400 8 0.4 29/35 0,75 - 1,5
X 500 8 0.5 40/47 0,9 - 1,8
X 800 8 0.8 45/71 0,8 - 3,5
T 1000 8 0.98 71/94 0,9 - 3,8
T 1020 9 0.98 71/94 0,9 - 3,8
X 1020 9 0.98 45/71 0,9 - 3,8
X 1530 10 1.5 49 2,8
X 3050 14 3 105/156 3,8 - 7,5
* Absorbed power depending on wire rope speed
