General:
Closed body Turnbuckles jaw/jaw with trapezoid thread standard supplied with lock nuts.

Features:
- Standard painted blue, but can be supplied in any colour or galvanised.
- Available in all combinations of eyes, stud eyes and welding ends.
- Lock plates or special locking devices possible.
- Can be supplied with turning wheel or rachet.
- Other sizes possible.

  • Temperature range: -40°C t/m +110° C at 100% capacity rating. Higher temperature possible with reduction of WLL.
  • Warning: Straight or in-line pull only.
  • Safety factor: 5:1
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

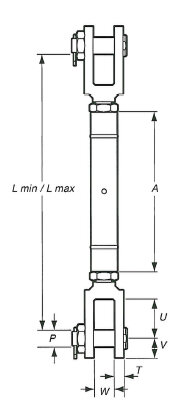

Part Code WLL
ton
Take up
mm
Thread trap. L min.
mm
L max.
mm
A
mm
P
mm
U
mm
V
mm
W
mm
T
mm
Weight
kg
CAD
11.50410016011 1.6 167 22 X 5 398 565 240 20 55 22.5 23 11 3
11.50410020011 2 181 24 X 5 422 603 260 22 58 25 26 12 4
11.50410025011 2.5 215 28 X 5 512 727 280 24 73 27.5 30 12 6
11.50410031011 3.1 225 30 X 6 543 768 300 27 80 30 32 15 8
11.50410040011 4 232 32 X 6 584 816 320 30 86 32.5 35 15 10
11.50410050011 5 242 36 X 6 612 854 340 36 93 37.5 40 20 15
11.50410063011 6.3 270 44 X 7 701 971 380 39 108 42.5 45 20 20
11.50410080011 8 296 48 X 8 755 1,051 420 45 112 47.5 50 25 28
11.50410100011 10 306 52 X 8 798 1,104 460 48 115 55 60 25 35
11.50410126011 12.6 352 55 X 9 862 1,214 500 52 122 60 65 30 47
11.50410160011 16 366 65 X 10 944 1,310 540 60 130 65 70 30 62
11.50410200011 20 380 70 X 10 1,042 1,422 580 68 145 70 75 35 85
11.50410250011 25 402 75 X 10 1,126 1,528 620 72 160 75 80 35 100
11.50410315011 31.5 438 80 X 10 1,192 1,630 660 80 170 85 90 40 130
11.50410400011 40 464 90 X 10 1,280 1,744 695 90 190 92 100 45 175
11.50410500011 50 520 100 x 10 1,390 1,910 770 100 205 105 110 50 236
11.50410630011 63 564 110 X 10 1,526 2,090 855 110 220 112 120 60 325
11.50410800011 80 630 120 X 10 1,653 2,283 920 125 235 127 140 70 452
11.50411000011 100 720 130 X 10 1,748 2,468 995 140 250 142 156 70 577
11.50411250011 125 752 140 X 10 1,900 2,652 1,070 160 270 162 176 80 811
11.50411600011 160 880 160 X 10 2,090 2,970 1,220 180 290 182 200 90 1,120
