• Not for lifting
  • Material: Mild steel, grade 3
  • Finish: Galvanized.
  • Warning: Not for lifting.

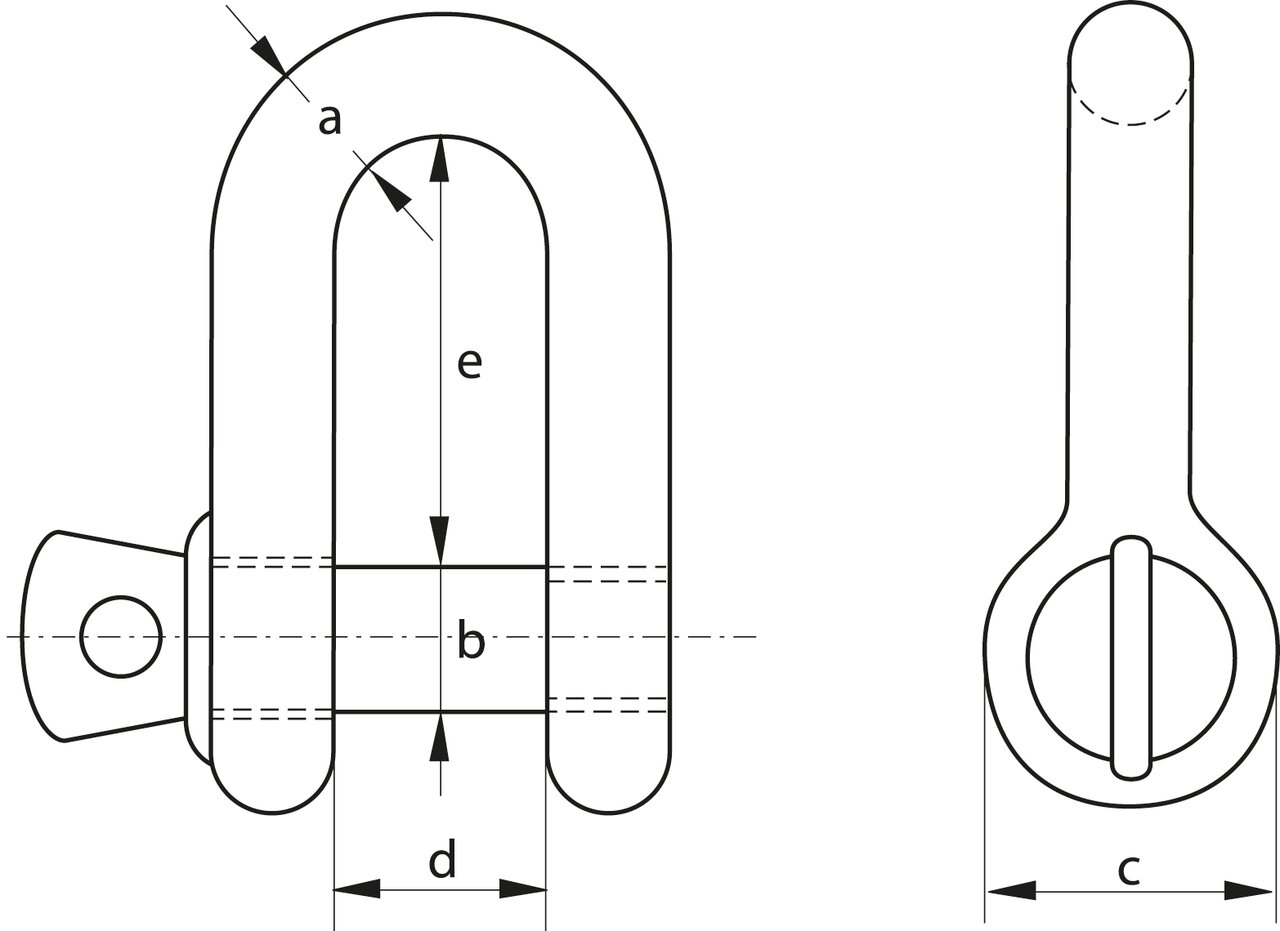

Select a row from the table below, then click the add to quote button
Part Code a
mm
b
mm
c
mm
d
mm
e
mm
Weight
kg/100pc
CAD
11.55MH010105 5 5 10 10 20 1.4
11.55MH010106 6 6 12 12 24 2.2
11.55MH010108 8 8 16 16 32 5.2
11.55MH010110 10 10 20 20 40 11.8
11.55MH010112 11 11 22 22 44 14
11.55MH010116 12 12 24 24 48 20.5
11.55MH010119 14 14 28 28 56 29.4



Download CAD
