POWERTEX Chain bags are durable and designed to be easily mounted to chain blocks. They can contain up to 10 meter of chains.

  • Universal - Fits many brands and models of chain hoists in the market
  • Easy to mount without dismantling the hoist
  • Comes in two different sizes
  • The chain bags can be combined with POWERTEX Chain Block – both Blackline BK and standard S1 and S2 versions.
    Blackline BT products are suitable to be used in theatres and entertainment industry.
  • Material: PVC-coated fabric.
  • Finish: Black.
Select a row from the table below, then click the add to quote button

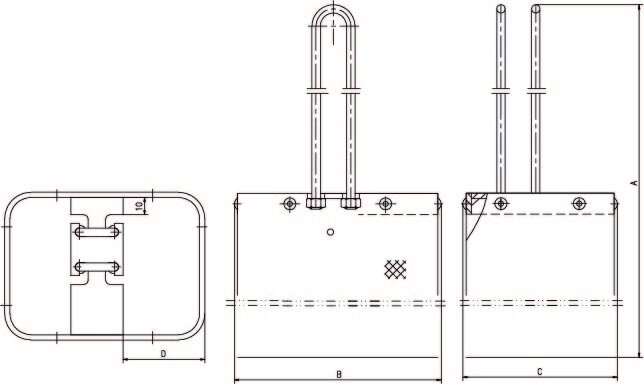

Part Code A
mm
B
mm
C
mm
D
mm
CAD
16.10PCB100301 375 120 90 47
16.10PCB100302 426 145 110 60

16.10PCB100301 is for hoists 0,5 t and 1,0 t
16.10PCB100302 is for hoist 2 t

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
