Wire Rope Grip POWERTEX PWRG

POWERTEX Wire rope grip PWRG is approved for lifting when assembly is made according to the user instructions.

It is designed to be used with 6 or 8 stranded steel wire rope with steel or fiber core with tensile strength up to 1960 N/mm2.

Correctly mounted the assembly will withstand 80% of th

Show more

Product number:
Powertex
  • Cr6+ Free

POWERTEX Wire rope grip PWRG is approved for lifting when assembly is made according to the user instructions.

It is designed to be used with 6 or 8 stranded steel wire rope with steel or fiber core with tensile strength up to 1960 N/mm2.

Correctly mounted the assembly will withstand 80% of the steel wire ropes minimum breaking strength.

  • Safe - The grips are designed to assure high friction between wire rope and grip

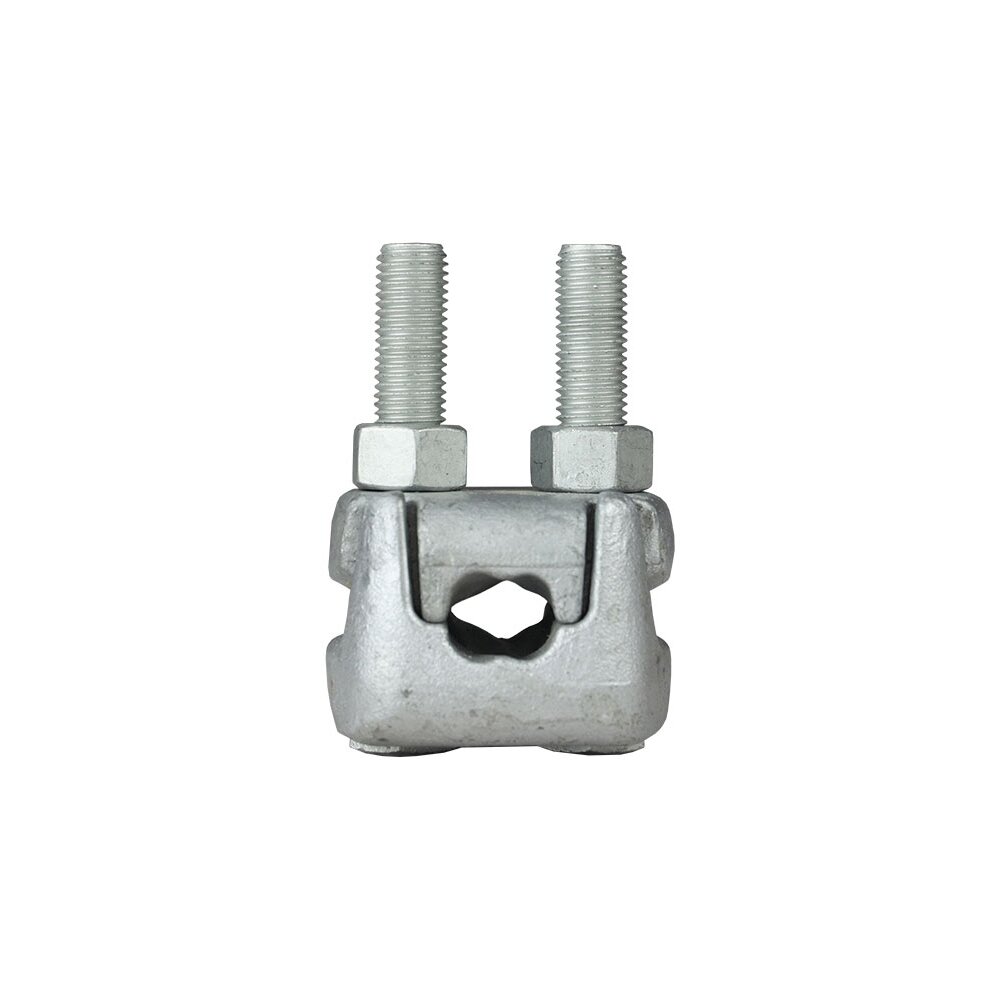

  • PWRG is symmetrical and can be turned as preferred
  • Quick and easy to use

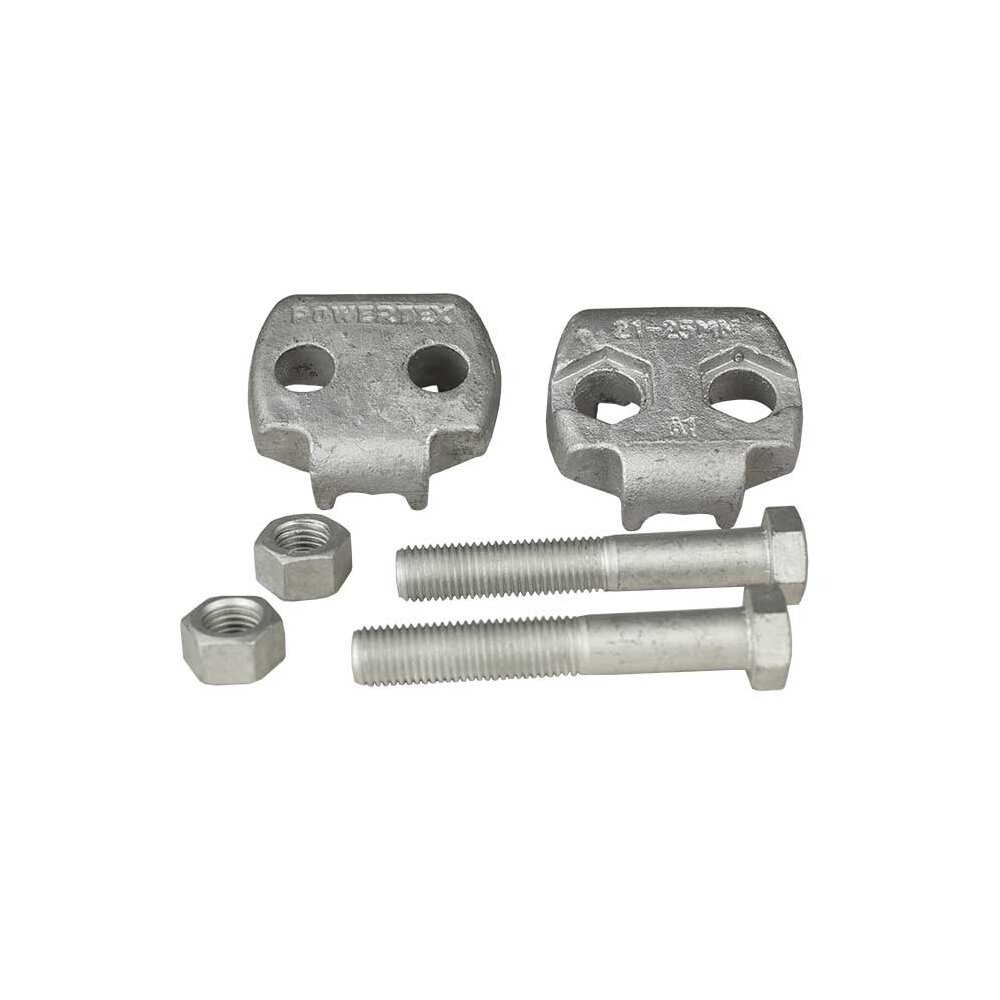

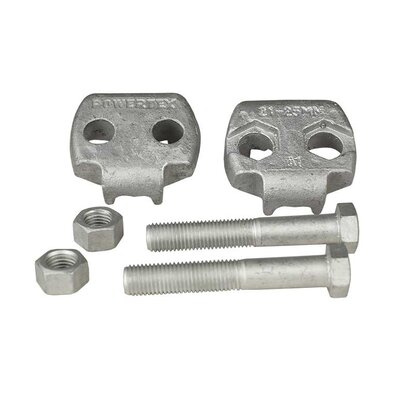

  • Quick mounting thanks to the recessed bolt head seats that hold the bolt while tightening the nuts
  • Low maintenance thanks to galvanization of grips and Dacrotized bolt and nuts
  • Tested according to 13411-5

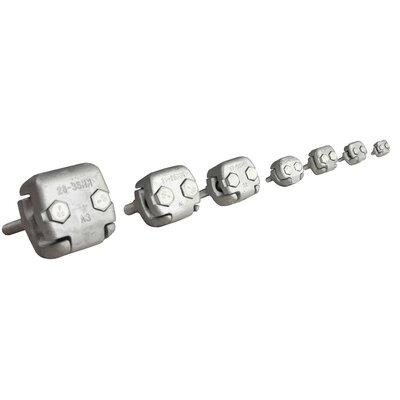

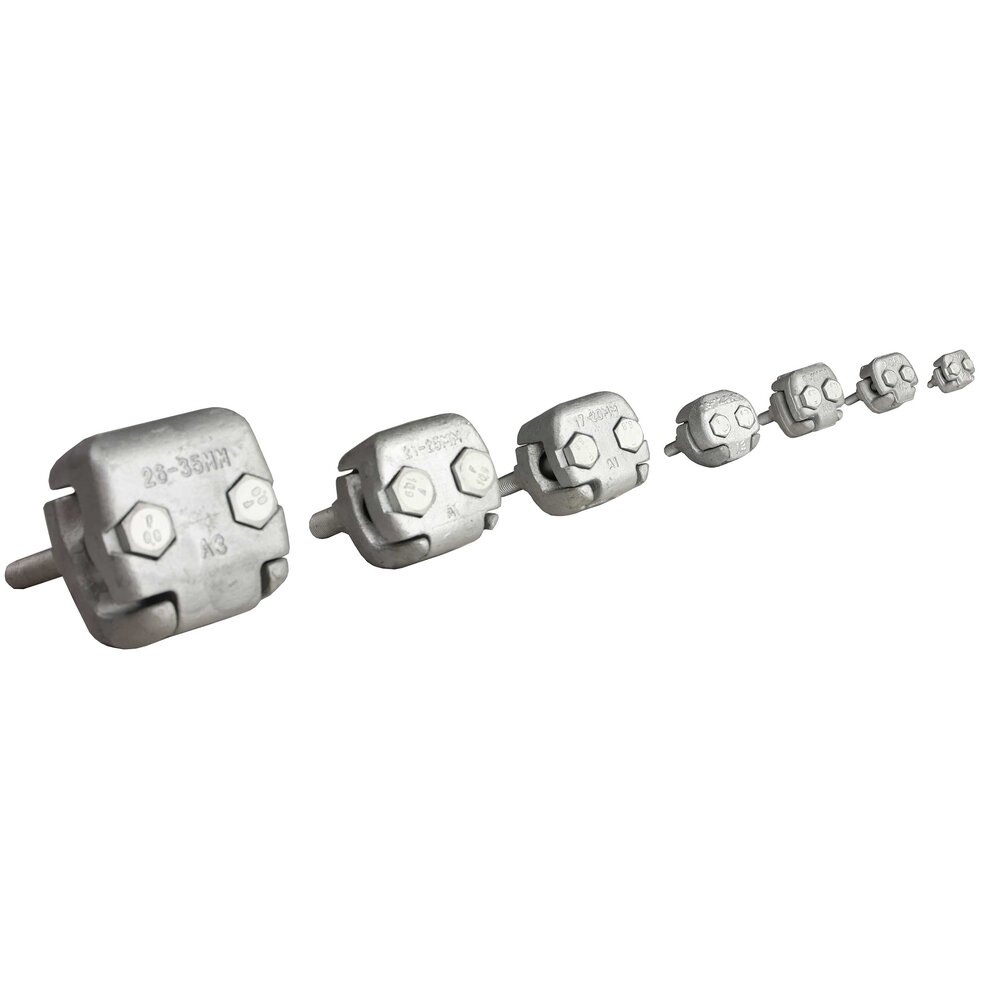

  • Features: PWRG-4 and 6 are drop forged. PWRG-8, 10, 12, 16, 20, 25, 35 are casted.
  • Finish: Galvanized.
  • Warning: Not for use with compacted or hammered wire ropes. It is not recommended to use plastic covered ropes for lifting purposes with wire rope grips
