Intended for attaching of wire rope where switching often occur, e.g. blocks of mobilecranes, or to be able to adjust the length of the wire rope. See recommended assembly to get correct results.

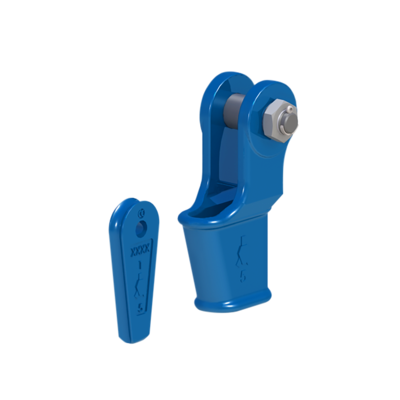

The wedge socket is delivered complete with wedge, bolt, nut and cotterpin.

2 surface finishes available:

  • Model OWS B: blue painted.
  • Model OWS BGAL: Hot dipped galvanized.

Model OWS0.25 and OWS0.5 only standard available in hot dipped galvanized.

  • Material: Quenched and tempered cast steel
  • Marking: CE-marked
  • Temperature range: - 40°C to + 110°C - Use at higher temperatures possible with reduction of WLL.
  • Finish: Blue painting or hot dipped galvanized
  • Note: The efficiency of a 6 and 8 strand wire rope/wedge socket connection is 80% of the minimum breaking load of the wire but limited to the minimum breaking load of the socket (MBL).
Select a row from the table below, then click the add to cart button
Part Code MBL
ton
For wire Ø
mm
A
mm
B
mm
C
mm
øP
mm
T
mm
TL
mm
TB
mm
W
mm
Weight
kg
CAD
10.20OWS0.25B.GAL 8 7-8 110 18 36 16 9 128 51 18 0.8
10.20OWS0.5B.GAL 12 9-10 145 23 46 21 11 168 63 21 1.7
10.20OWS1B 20 11-13 157 29 57 25 12 185 67 25 2.1
10.20OWS1B.GAL 20 11-13 157 29 57 25 12 185 67 25 2.1
10.20OWS2B 25 14-16 190 35 70 30 15 225 85 31 4
10.20OWS2B.GAL 25 14-16 190 35 70 30 15 225 85 31 4
10.20OWS3B.GAL 40 18-19 210 40 80 35 16 250 95 38 7
10.20OWS3B 40 18-19 210 40 80 35 16 250 95 38 7
10.20OWS4B 55 20-22 252 48 95 41 18 300 110 44 10
10.20OWS4B.GAL 55 20-22 252 48 95 41 18 300 110 44 10
10.20OWS5B 75 23-26 298 55 110 51 22 353 128 51 15
10.20OWS5B.GAL 75 23-26 298 55 110 51 22 353 128 51 15
10.20OWS6B 90 27-29 322 65 130 57 25 387 142 57 21
10.20OWS6B.GAL 90 27-29 322 65 130 57 25 387 142 57 21
10.20OWS7B 110 30-32 350 73 146 63 28 423 155 63 31
10.20OWS7B.GAL 110 30-32 350 73 146 63 28 423 155 63 31
10.20OWS8B.GAL 125 34-36 400 74 148 64 28 474 160 70 37
10.20OWS8B 125 34-36 400 74 148 64 28 474 160 70 37
10.20OWS9B 150 37-39 450 80 142 70 30 530 177 77 51
10.20OWS9B.GAL 150 37-39 450 80 142 70 30 530 177 77 51
10.20OWS10B 170 40-42 500 87 160 76 33 587 187 76 64
10.20OWS10B.GAL 170 40-42 500 87 160 76 33 587 187 76 64
10.20OWS11B 225 43-48 550 100 186 89 39 650 215 89 96
10.20OWS11B.GAL 225 43-48 550 100 186 89 39 650 215 89 96
10.20OWS12B 280 49-52 637 105 205 95 46 740 244 101 130
10.20OWS12BGAL 280 49-52 637 105 205 95 46 740 244 101 130
10.20OWS13B 360 54-58 660 125 250 108 54 785 275 114 180
10.20OWS13B.GAL 360 54-58 660 125 250 108 54 785 275 114 180
10.20OWS14B 425 60-68 835 135 270 121 60 970 300 127 275
10.20OWS14B.GAL 425 60-68 835 135 270 121 60 970 300 127 275
10.20OWS15B 460 72-76 1,000 150 300 133 76 1,150 355 146 440
10.20OWS15B.GAL 460 72-76 1,000 150 300 133 76 1,150 355 146 440
10.20OWS16B 625 81-86 1,160 150 300 140 79 1,310 375 159 510
10.20OWS16B.GAL 625 81-86 1,160 150 300 140 79 1,310 375 159 510
