Ropetex TYCLIFT 8SC
Product information
Ropetex TYCLIFT 8SC is a steel wire rope developed for elevator installations where both bending fatigue and load stability influence rope performance. Its 8×19S construction, combined with an independent wire rope core, offers a balance between flexibility and structural stability. Compared to fiber-core designs, this rope provides controlled elongation while maintaining good bending behavior. It is well-suited for mid- to high-rise elevators with normal to heavy usage.
When to choose this product
- Elevator installations requiring a balance of flexibility and stability
- Mid- to high-rise applications with intermediate to high bending cycles
- Situations where controlled elongation improves long-term adjustment
Product benefits
- 8×19S construction with independent steel core (IWRC)
Combines good bending performance with improved structural stability compared to fiber-core ropes. - Controlled elongation behavior
Supports consistent elevator performance and reduces the frequency of rope re-tensioning. - Suitable for higher bending demands
Designed to handle intermediate to high bending cycles in daily operation. - Normal to heavy usage capability
Covers a wide range of passenger elevator duty levels without over-specification.
Tolerances
- ≤10 mm 0% − +3%
- >10 mm 0% − +2%
Total number of wires: 227

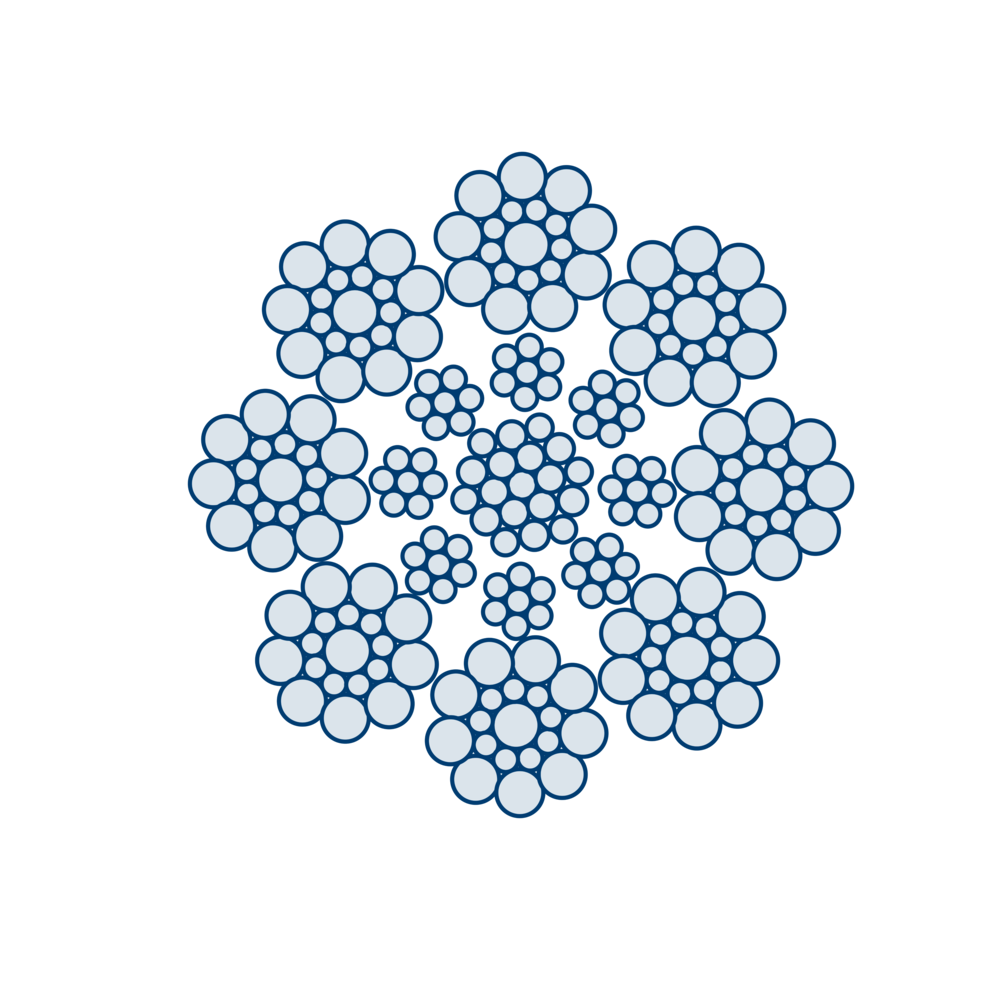

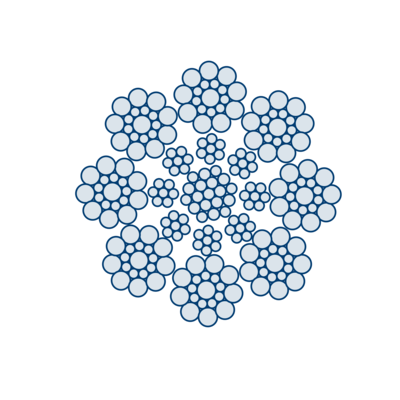

- Rope construction: 8x19S-IWRC
- Marking: According to standard, CE-marked, UKCA-marked
- Temperature range: -40°C up to +100°C
- Finish: Bright (U)
- Standard: EN 12385-5
- Fill factor: 0,582
