Ropetex TYCLIFT 8MC
Product information
Ropetex TYCLIFT 8MC is a steel wire rope designed for elevator installations where service life is more affected by wear at the traction sheave than by bending fatigue. The Seale strand construction uses thicker outer wires to improve abrasion resistance in sheave contact. A mixed core combining steel and fiber supports dimensional stability while also acting as a lubricant reservoir. This makes TYCLIFT 8MC a practical choice for low- to mid-rise elevators with higher sheave wear.
When to choose this product
- Elevator installations with increased wear at the traction sheave
- Low- to mid-rise applications with small to intermediate bending cycles
- Situations where abrasion resistance has a stronger impact than fatigue
Product benefits
- Seale strand construction with thicker outer wires
Improves resistance to wear from repeated traction sheave contact, supporting longer service intervals. - Mixed core with steel and fiber content
Provides low elongation while the fiber component helps retain lubricant inside the rope. - Stable performance under normal usage levels
Designed for everyday elevator operation where wear is the primary limiting factor. - Good balance of stability and flexibility
Supports smooth running without sacrificing structural control.
Tolerances
- ≤10 mm 0% − +3%
- >10 mm 0% − +2%
Total number of wires: 187

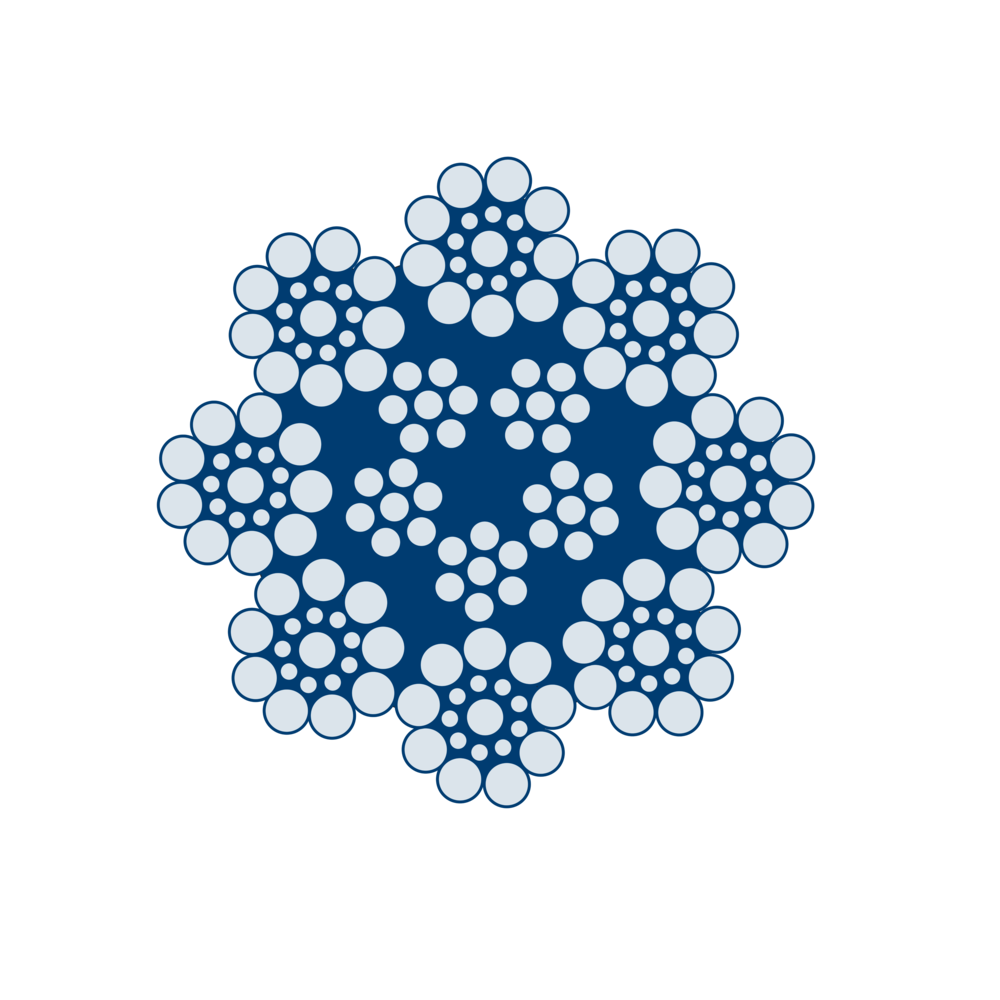

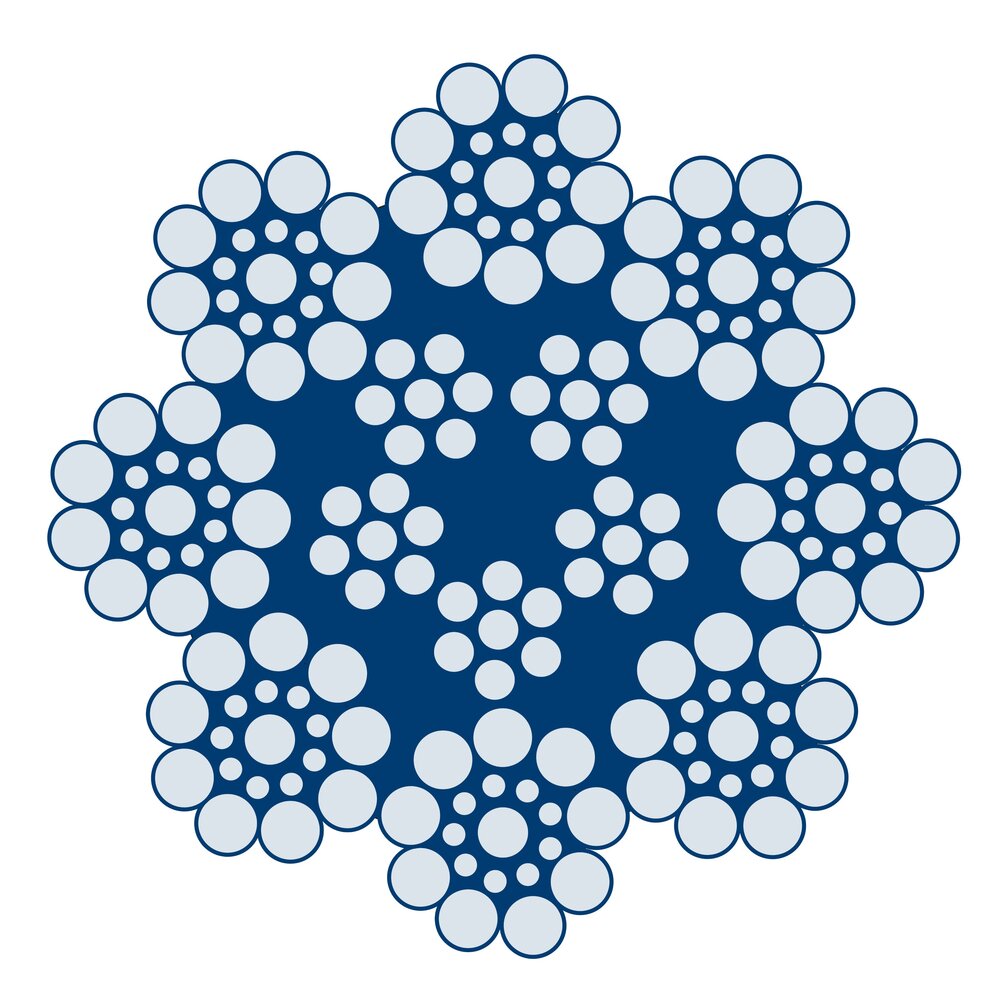

- Rope construction: 8x19S-MC
- Marking: According to standard, CE-marked, UKCA-marked
- Temperature range: -40°C up to +100°C
- Finish: Bright (U)
- Standard: EN 12385-5, ISO 4344
- Fill factor: 0,582
