PAWO 7S
Product information

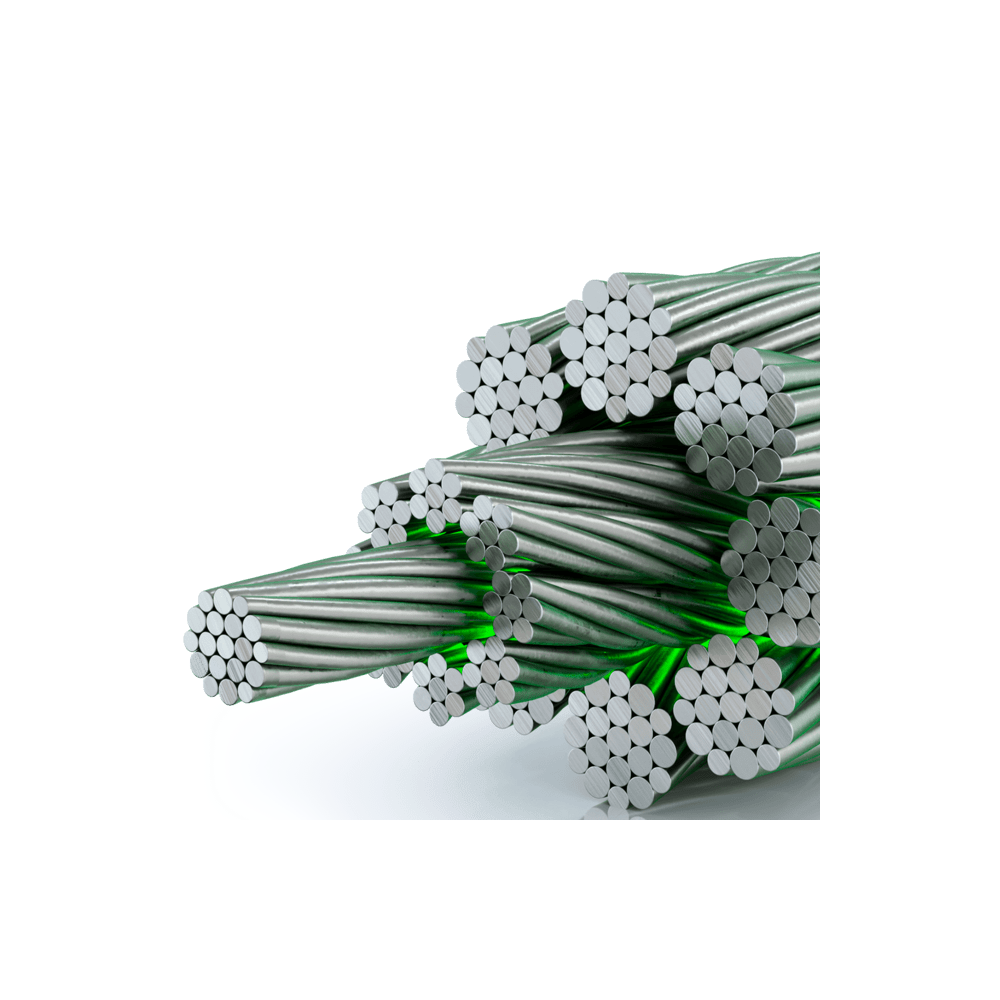

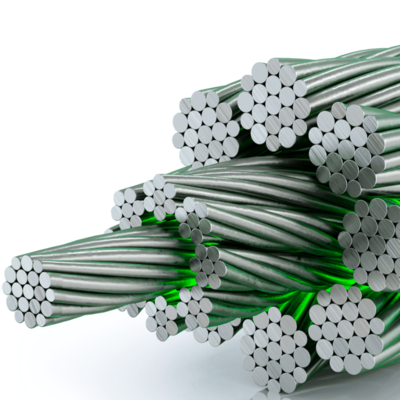

Special full steel rope with IWRC
In PAWO F7S the fiber component of the F7 steel core was replaced by a steel strand, thus achieving an even higher metallic cross-section plus an even higher breaking strength.
This full steel rope is primarily used in installations where the rope service life is more affected by the impact of permanent bends than by wear from the traction sheave. The steel wire rope core minimizes rope elongation in comparison to the types F3 and F7. As a consequence, the rope is particularly suitable for high-rise applications with many bending cycles.
Properties
- medium and high-rise
- intermediate to high number of bending cycles
- normal to heavy usage levels
- low stretch
- long service life
- Rope construction: 8x19 Warrington with steel core.
- Marking: According to standard
- Standard: EN 12385-5
-
Elevator
Product FAQ
What surface finish and tensile strength does this steel wire rope have?
This steel wire rope has a Bright and is manufactured with a tensile strength of 1570 N/mm².A bright (uncoated) finish has no corrosion protection and is therefore primarily used in dry, indoor, or controlled environments. Bright wire ropes are generally selected for cost reasons.
What is the construction, core type, and lay of this steel wire rope?
This steel wire rope is constructed with 8 strands.
It is manufactured with a steel core, offering higher structural stability, improved resistance to crushing, and reliable performance under heavy loads and multi-layer winding conditions.
It is manufactured with an ordinary right-hand lay (sZ), providing a balanced combination of flexibility, wear resistance, and stable handling. This is the most commonly used lay for general
