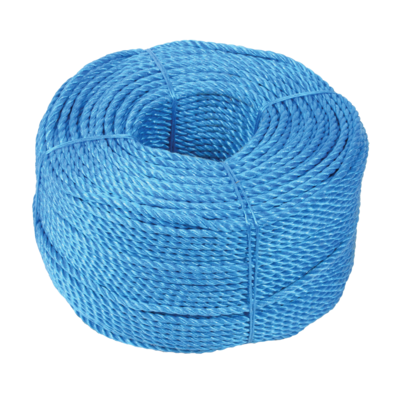

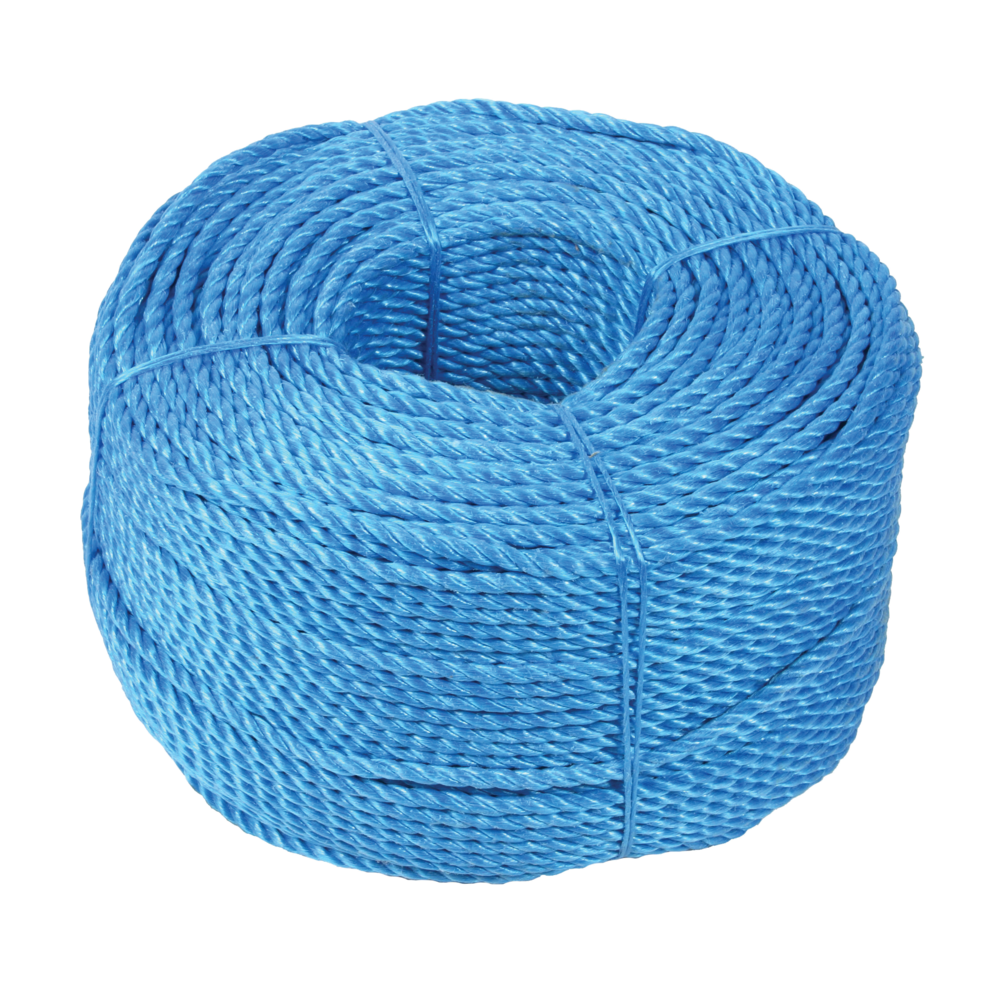

General: Fibre rope of polypropylene for all different kinds of applications like: tarpaulin- and towing-ropes, lifting slings, ropes for the fishing industry, cargo nets, rope ladders, and more. The structure of the fibre rope makes it non-sliding in knots and splices.

Design: Spliced fibre.

Specific gravity: 0,91 (floats).
Melting point: Approx. 165°C.
Elongation: Approx. 30%.
Strength wet/dry: 100%
Shock Absorption: Very Good
Water Absorption: None
Abrasion Resistance: Good

  • Material:  Polypropylene, resistant to rot, most acids and alkalies. The fibre is UV-stabilized against sunlight.
  • Marking: According to standard
  • Finish: Blue.
  • Standard: EN ISO 1346
pp-film
Select a row from the table below, then click the add to cart button
Part Code Diameter
mm
Min. breaking force
kN
Colour Mass
g/m
Weight
kg/220m
CAD
12.03PPE030BEC22 3 1.18 blue 3,5 0.8
12.03PPE030BESPL 3 1.18 blue 3,5 0.8
12.03PPE040BEC22 4 2.7 blue 8 1.8
12.03PPE040BESPL 4 2.7 blue 8 1.8
12.03PPE050BEC22 5 3.9 blue 12 2.6
12.03PPE060BESPL 6 5.4 blue 17 2.6
12.03PPE060BEC22 6 5.4 blue 17 3.7
12.03PPE080BESPL 8 9.4 blue 30 3.7
12.03PPE080BEC22 8 9.4 blue 30 6.6
12.03PPE100BESPL 10 14 blue 45 6.6
12.03PPE100BEC22 10 14 blue 45 9.9
12.03PPE120BESPL 12 19.9 blue 65 9.9
12.03PPE120BEC22 12 19.9 blue 65 14
12.03PPE140BEC22 14 27.4 blue 90 20
12.03PPE140BESPL 14 27.4 blue 90 20
12.03PPE160BEC22 16 34.3 blue 115 25
12.03PPE160BESPL 16 34.3 blue 115 25
12.03PPE180BEC22 18 43.6 blue 148 33
12.03PPE200BEC22 20 52.7 blue 180 40
12.03PPE220BEC22 22 63.7 blue 220 48
12.03PPE240BEC22 24 74.5 blue 260 57
12.03PPE260BEC22 26 87.8 blue 305 67
12.03PPE280BEC22 28 99.1 blue 355 78
12.03PPE300BEC22 30 113 blue 405 89
12.03PPE320BEC22 32 126 blue 460 101
12.03PPE360BEC22 36 158 blue 585 129
12.03PPE340BEC22 40 190 blue 720 158
