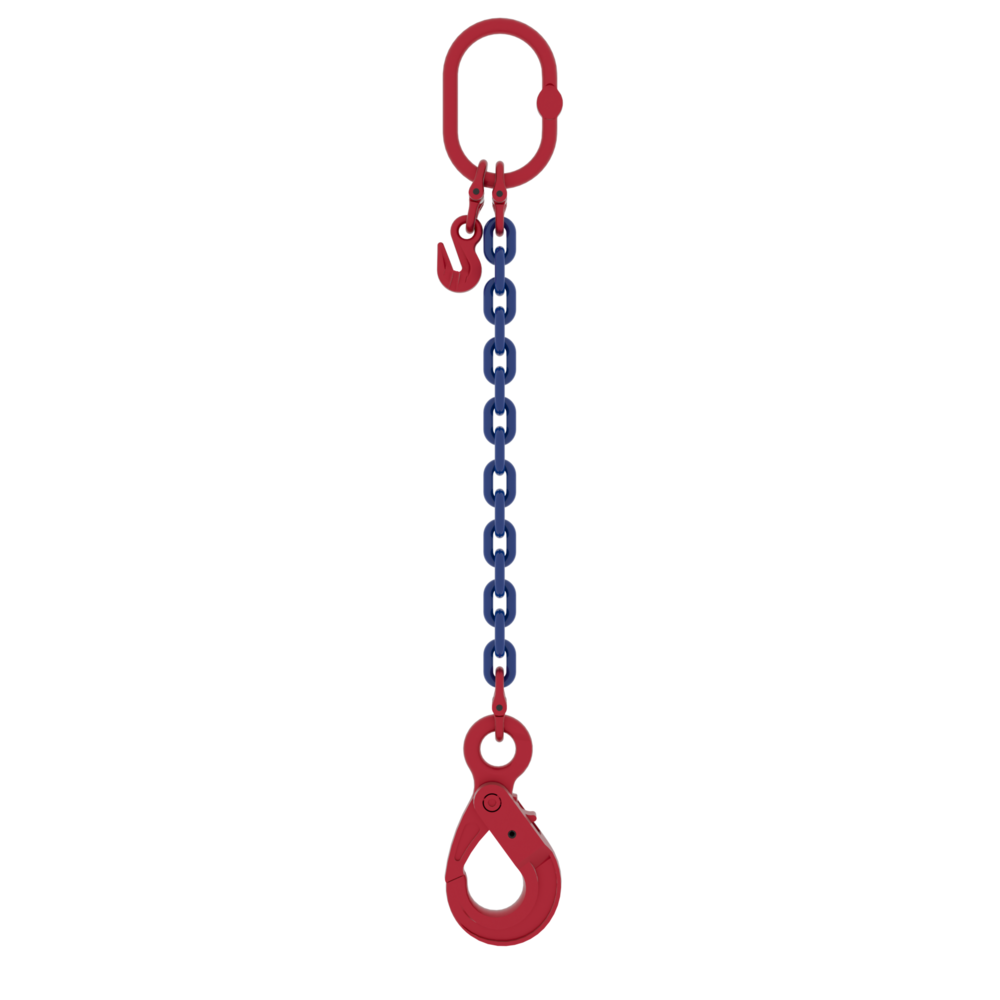

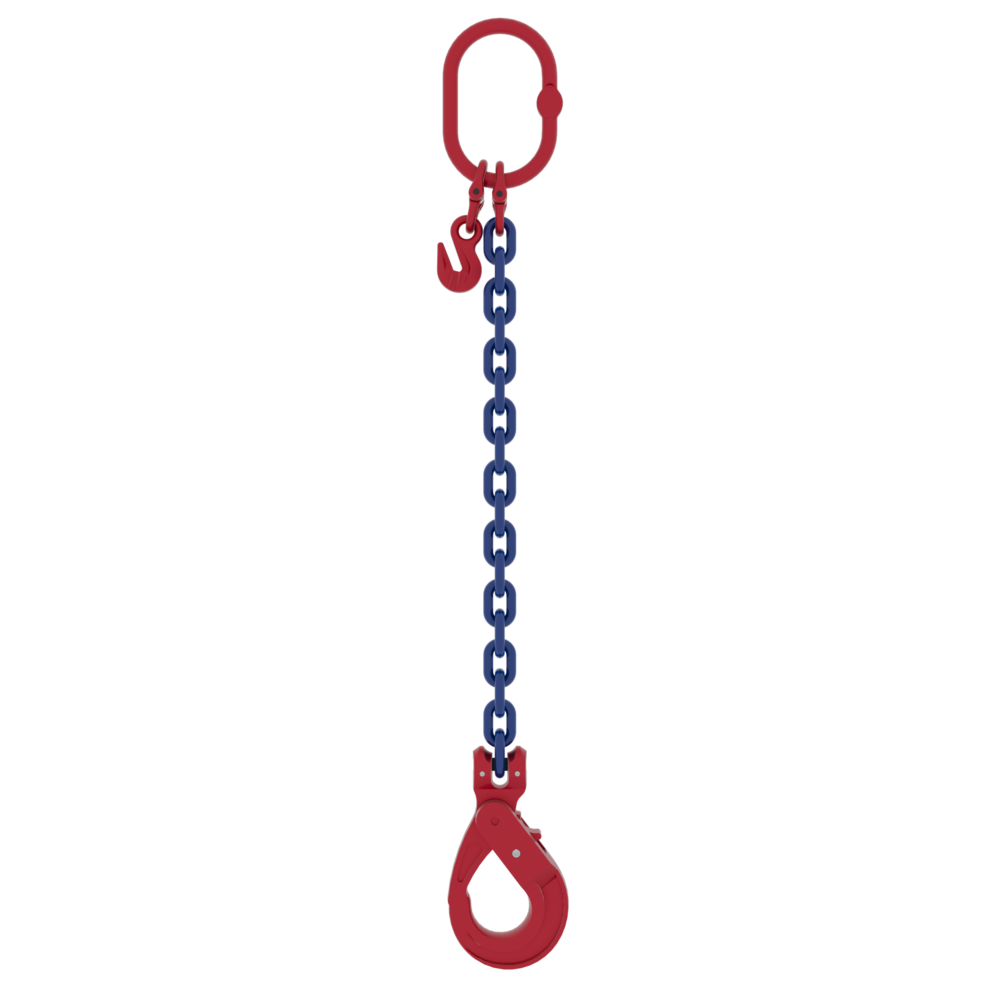

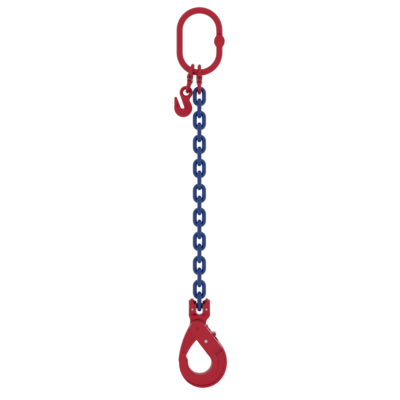

The Chain Sling Powertex 1-leg with safety hook is a single-leg lifting assembly for general industrial use. It is designed for controlled vertical lifting where secure attachment, optional shortening, and predictable performance are required.
The standard assembly includes a master link, a Grade 10 chain, a shortening grab hook, a safety hook, and a marking plate with WLL information. This provides a complete and ready-to-use configuration for everyday lifting tasks.

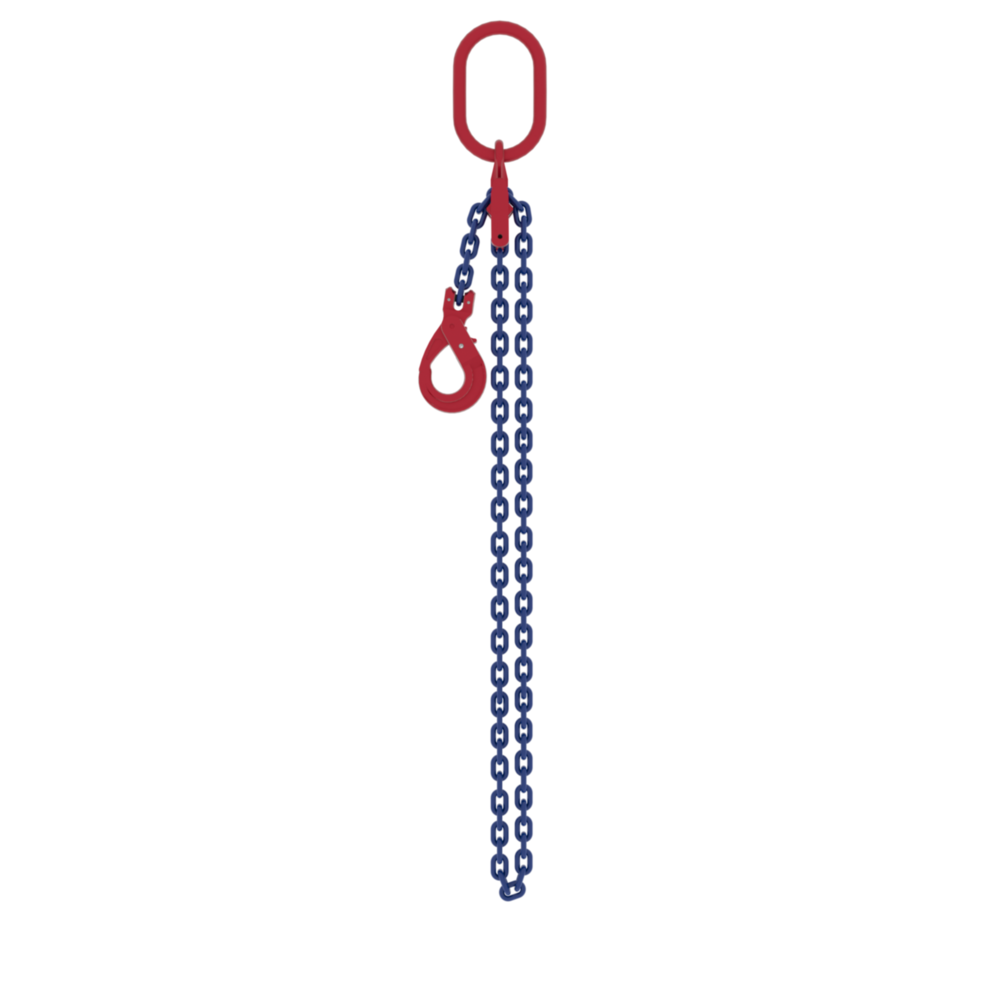

The sling can also be supplied in alternative configurations with different hooks, master links, or shortening options on request.
When to choose this product
Best for:
- Straight vertical lifts with a single lifting point
- Applications where secure hook closure is preferred during lifting
Product benefits
- Safety hook provides a more secure connection, helping reduce the chance of unintentional hook release during lifting
- Shortening grab hook allows chain length adjustment, supporting accurate load positioning without extra components
- Grade 10 chain provides higher capacity compared to Grade 8, enabling compact setups without increasing chain diameter
- Components are crack detection tested, and samples from each batch are proof load tested, supporting consistent quality control
- Fatigue rated to 20,000 cycles at 1.5x WLL, helping maintain predictable behaviour in repetitive lifting applications
- Marking plate shows WLL and angle capacities, simplifying load planning and reducing interpretation errors on site
- Full traceability through batch marking supports inspection routines and documentation requirements
Configuration notes
Assemblies up to 22 mm can be equipped with clevis connections, while all variants can also be built with connecting links. Chain sling assemblies from 26 mm chain are supplied with hooks with eye and connecting links.
- Material: Alloy steel
- Marking: According to standard, CE-marked
- Temperature range: -40°C up to +200°C without reduction in WLL
- Finish: Red powder paint
-
Standard:
EN 818-4
(+25 % WLL)
- Safety factor: 4:1
- Grade: 10
Chain Sling Grade 10
EN 818-4, but with higher WLL
|
Safety Factor 4:1 |
Chain Ø | 1-part | 2-part | 3-4-part | Endless | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
| Straight pull | Choke hitch | Basket hitch | 0°−45° | 45°−60° | 0°−45° | 45°−60° | Straight pull | Choke hitch | Basket hitch | ||
| mm | Max last (WLL) i ton | ||||||||||
| 6 | 1,40 | 1,12 | 2,80 | 2,00 | 1,40 | 3,00 | 2,12 | 2,80 | 2,24 | 5,60 | |
| 7 | 1,90 | 1,50 | 3,80 | 2,65 | 1,90 | 4,00 | 2,80 | 3,80 | 3,00 | 7,60 | |
| 8 | 2,50 | 2,00 | 5,00 | 3,55 | 2,50 | 5,30 | 3,75 | 5,00 | 4,00 | 10,00 | |
| 10 | 4,00 | 3,15 | 8,00 | 5,60 | 4,00 | 8,40 | 6,00 | 8,00 | 6,30 | 16,00 | |
| 13 | 6,70 | 5,30 | 13,40 | 9,50 | 6,70 | 14,00 | 10,00 | 13,40 | 10,60 | 26,80 | |
| 16 | 10,00 | 8,00 | 20,00 | 14,00 | 10,00 | 21,20 | 15,00 | 20,00 | 16,00 | 40,00 | |
| 19 | 14,00 | 11,20 | 28,00 | 20,00 | 14,00 | 30,00 | 21,20 | 28,00 | 22,40 | 56,00 | |
| 20 | 16,00 | 12,80 | 32,00 | 22,40 | 16,00 | 33,60 | 24,00 | 32,00 | 25,60 | 64,00 | |
| 22 | 19,00 | 15,00 | 38,00 | 26,50 | 19,00 | 40,00 | 28,00 | 38,00 | 30,00 | 76,00 | |
| 26 | 26,50 | 21,20 | 53,00 | 37,50 | 26,50 | 56,00 | 40,00 | 53,00 | 42,50 | 106,00 | |
| 32 | 40,00 | 31,50 | 80,00 | 56,00 | 40,00 | 85,00 | 60,00 | 80,00 | 64,00 | 160,00 | |
| Factor (KL) | 1 | 0,8 | 2 | 1,4 | 1 | 2,1 | 1,5 | 2 | 1,6 | 4 | |
| When a multi-leg sling is used in a chocker hitch, reduce the values by 20% | |||||||||||
