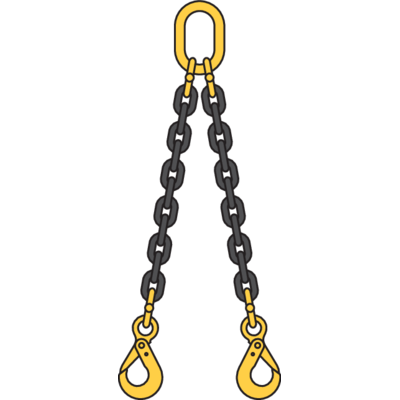

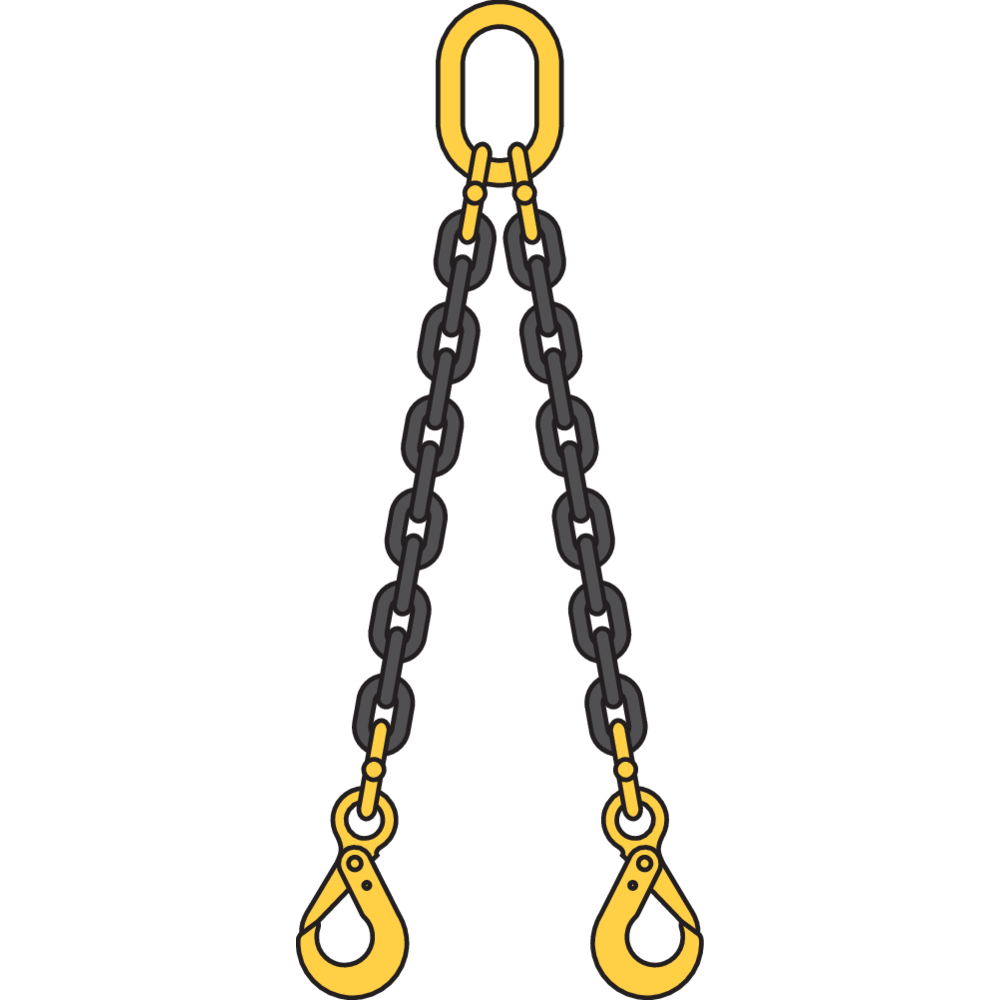

Design: Master link in one end and safety hook in each leg.
Dimension: Ø 6–20 mm, other dimensions on request.
Design: Master link in one end and safety hook in each leg.
Dimension: Ø 6–20 mm, other dimensions on request.
EN 818-4
|
Safety Factor 4:1 |
Chain ø | 1-part | 2-part | 3-4-part | Endless | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
| Straight pull | Choke hitch | Basket hitch | 0°−45° | 45°−60° | 0°−45° | 45°−60° | Straight pull | Choke hitch | Basket hitch | ||
| mm | Working load limit (WLL) in tons | ||||||||||
| 6 | 1,12 | 0,90 | 2,24 | 1,60 | 1,12 | 2,36 | 1,70 | 2,24 | 1,80 | 4,48 | |
| 7 | 1,50 | 1,20 | 3,00 | 2,12 | 1,50 | 3,15 | 2,24 | 3,00 | 2,50 | 6,00 | |
| 8 | 2,00 | 1,60 | 4,00 | 2,80 | 2,00 | 4,25 | 3,00 | 4,00 | 3,15 | 8,00 | |
| 10 | 3,15 | 2,50 | 6,30 | 4,25 | 3,15 | 6,70 | 4,75 | 6,30 | 5,00 | 12,6 | |
| 13 | 5,30 | 4,25 | 10,6 | 7,50 | 5,30 | 11,20 | 8,00 | 10,60 | 8,50 | 21,20 | |
| 16 | 8,00 | 6,30 | 16,00 | 11,20 | 8,00 | 17,00 | 11,80 | 16,00 | 12,50 | 32,00 | |
| 19 | 11,20 | 9,00 | 22,40 | 16,00 | 11,20 | 23,60 | 17,00 | 22,40 | 18,00 | 44,80 | |
| 20 | 12,50 | 10,00 | 25,00 | 17,00 | 12,50 | 26,50 | 19,00 | 26,00 | 20,00 | 50,00 | |
| 22 | 15,00 | 12,00 | 30,00 | 21,20 | 15,00 | 31,50 | 22,40 | 30,00 | 23,60 | 60,00 | |
| 26 | 21,20 | 17,00 | 42,40 | 30,00 | 21,20 | 45,00 | 31,50 | 42,40 | 33,50 | 84,80 | |
| 32 | 31,50 | 25,20 | 63,00 | 45,00 | 31,50 | 67,00 | 47,50 | 63,00 | 50,00 | 126,00 | |
| Factor (KL) | 1 | 0,8 | 2 | 1,4 | 1 | 2,1 | 1,5 | 2 | 1,6 | 4 | |
| When a multi-leg sling is used in a chocker hitch, reduce the values by 20% | |||||||||||
