Kratos Safety

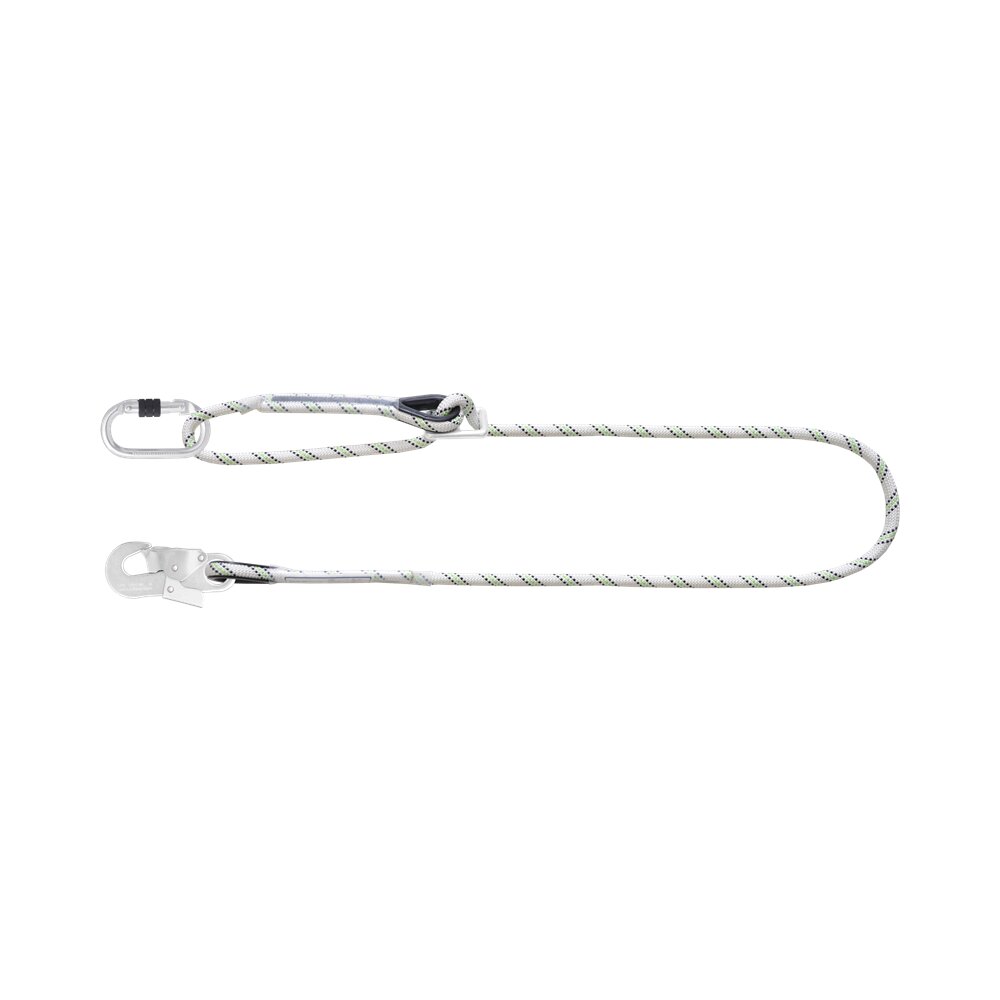

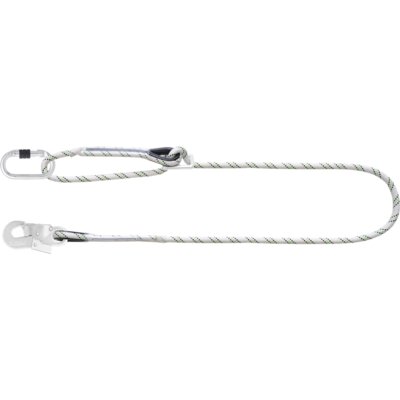

This Work Positioning Rope has one steel screw-locking karabiner FA 50 101 17, and one steel snap hook FA 50 202 17.
It is made up of 11 mm diam polyamide kernmantle rope
Abrasion resistant thimble to protect the Loops from being damaged by metallic contact
Sewing protected with a strong transparent covering sleeve which not only protects the end, but also make the stitches visible for easy inspection before the use.

Forged alloy steel ring adjuster

  • Material: Lanyard: Polyamide, Connector And Buckle: Steel
  • Marking: According to standard, CE-marked
  • Standard: EN 358
Select a row from the table below, then click the add to cart button
Part Code Max. number of persons Length Rope diameter
mm
Weight
kg
CAD
19.04FA4090220 1 2 12 0.69
