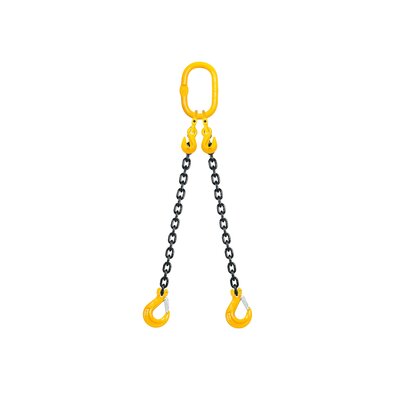

Assembled 2-Legs chain sling with latch hook and grab hook. Slings are equipped with a load plate.

Sling length measured from the top of the master link to the bottom of the hook.

  • Material: Alloy Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40°C up to +200°C / 400°C = WLL 75%
  • Finish: Painted, black / yellow
  • Standard: EN 818-4
  • Note: The last three digits of the product code refer to the length: 010 = 1,0 m.
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table, then click the add to cart button
Part Code WLL
ton
11.90CS27506XXX 1,6
11.90CS27508XXX 2,8
11.90CS27510XXX 4,25
11.90CS27513XXX 7,5
11.90CS27516XXX 11,2
11.90CS27520XXX 17,5

* β - angle of any leg to the vertical

Other dimensions, WLL and special lengths on request.
