Thimble DIN 3091

Protection of rope loops with holes for bolts.

Design: Casted type DIN 3091.

  • Finish: Cast.
3408_e_225mm_2 Thimble DIN 3091
3408_e_225mm_2
3408m_e_225mm
Select a row from the table below, then click the add to quote button

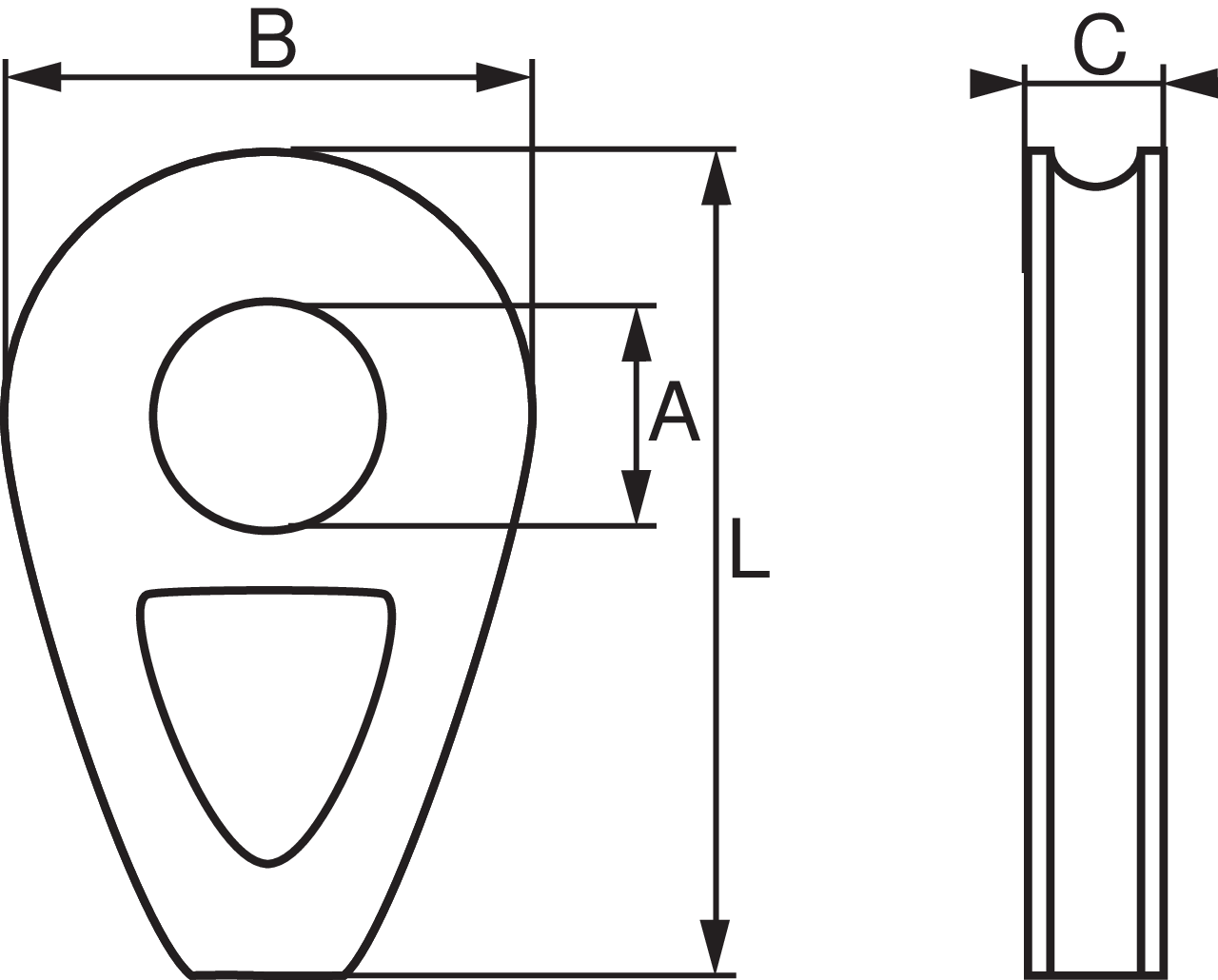

Part Code Code Wire Ø
mm		 A Not worked A Min worked A Max worked B
mm		 C
mm		 L
mm		 Weight
kg/100pc		 CAD
10.27309109 3408 8 14 17 20 40 15 66 18
10.27309111 3410 10 18 21 25 50 17,5 82 32
10.27309113 3412 12 21 24 30 60 20 98 52
10.27309116 3414 14 25 29 35 70 23,5 114 80
10.27309118 3416 16 28 32 40 80 26 130 90
10.27309120 3418 18 31 35 45 90 28,5 145 121
10.27309122 3420 20 35 40 50 100 31 161 161
10.27309124 3422 22 38 43 55 110 33,5 177 211
10.27309126 3424 24 41 46 60 120 36 193 271
10.27309129 3426 26 44 49 65 130 39,5 209 355
10.27309131 3428 28 47 52 70 140 42 224 420
10.27309135 3432 32 53 58 80 160 47 256 630
10.27309140 3436 36 59 65 90 180 53 288 884
10.27309144 3440 40 65 71 100 200 58 320 1,100
10.27309148 3444 44 70 76 110 220 63 352 1,500
10.27309153 3448 48 76 82 120 240 69 384 2,000

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
