General: POWERTEX chain slings for efficient and safe operation. All slings are equipped with integrated shorting hooks and safety lifting hooks. For convenient storage and transportation, slings are supply in reusable packaging.

  • Material: Alloy steel grade 10
  • Marking: WLL, Serial No., Manufactor ID, CE
  • Finish: Painted
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

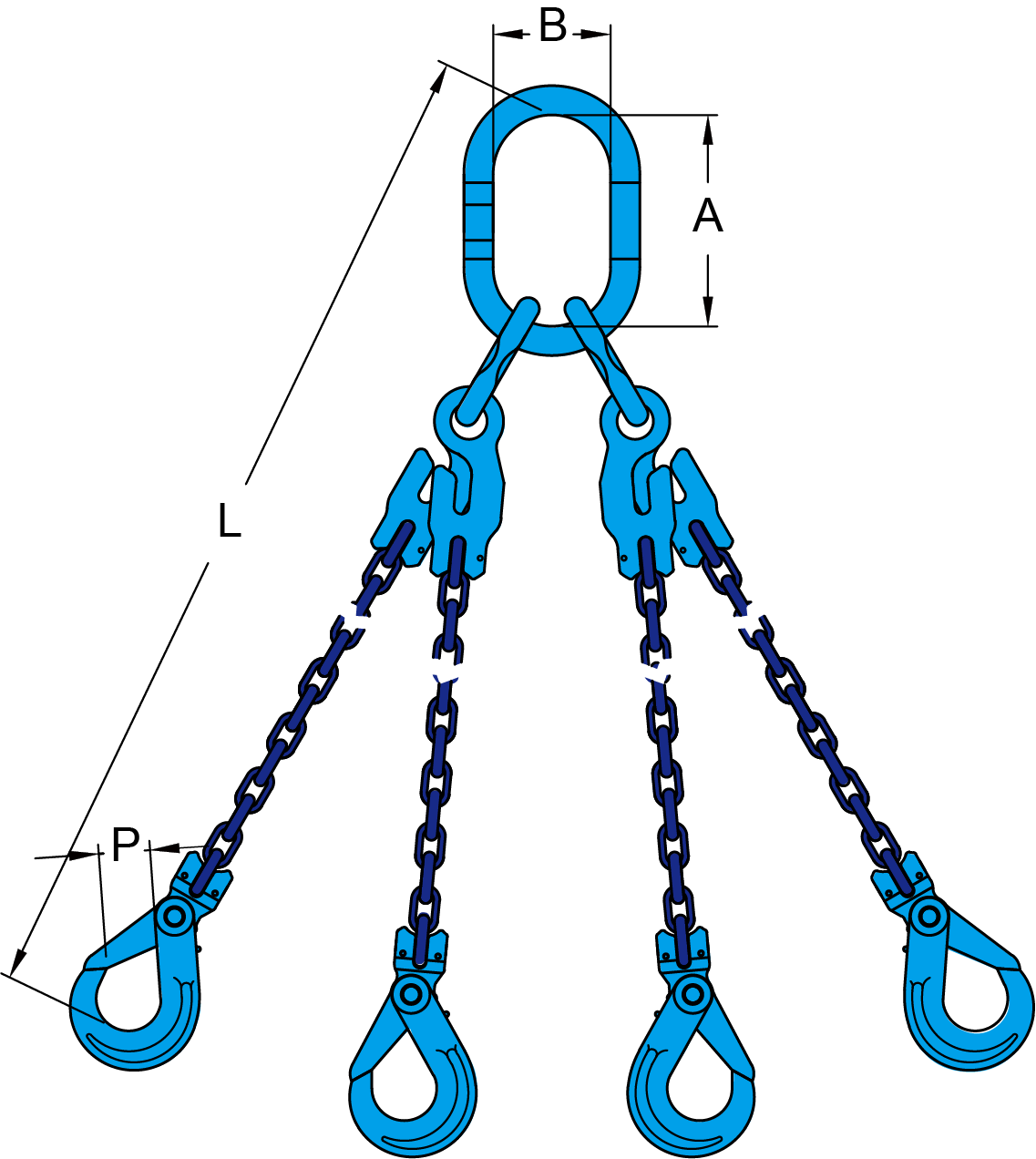

Part Code Length (m) chain Ø (mm) WLL in tons grade10 0°-45° WLL in tons grade10 45°-60° A (mm) B (mm) P (mm) Weight
kg
CAD
11.91PCX46606015 1.5 6 3,0 2.12 160 95 28 7.9
11.91PCX46606020 2,0 6 3,0 2.12 160 95 28 9.6
11.91PCX46608020 2,0 8 5.3 3.75 170 105 34 17.7
11.91PCX46608025 2.5 8 5.3 3.75 170 105 34 20.7
11.91PCX46608030 3,0 8 5.3 3.75 170 105 34 23.8
11.91PCX46610025 2.5 10 8,0 6,0 190 110 44 31.9
11.91PCX46610030 3,0 10 8,0 6,0 190 110 44 36.5
11.91PCX46610035 3,5 10 8,0 6,0 190 110 44 41.1

* β - angle of any leg to the vertical

Other dimensions, WLL and special lengths on request.
