General: For handling of standard pallets from the long side.
Design: Thanks to the spring-loaded lifting eye, the pallet fork is self-balancing, which means that the forks are always horizontal, regardless of whether the pallet fork is empty or loaded. Please note the minimum load specified in the table. Concealed spring and linkage. The 6044 model has extra thin forks (size S). When folded down, the pallet fork must not be used for lifting.
Proof: Batch proof 1,5 x max load.

  • Material: Beam and plate of high-strength structural steel.
  • Marking: Maximum load and CE-marking.
  • Finish: Yellow painted.
  • Note: Other sizes and designs are available upon request. For customer made forks the type has some restrictions regarding small loads and low built goods (measure H).
6040-44_e_225mm
6040-44m_new_225mm
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

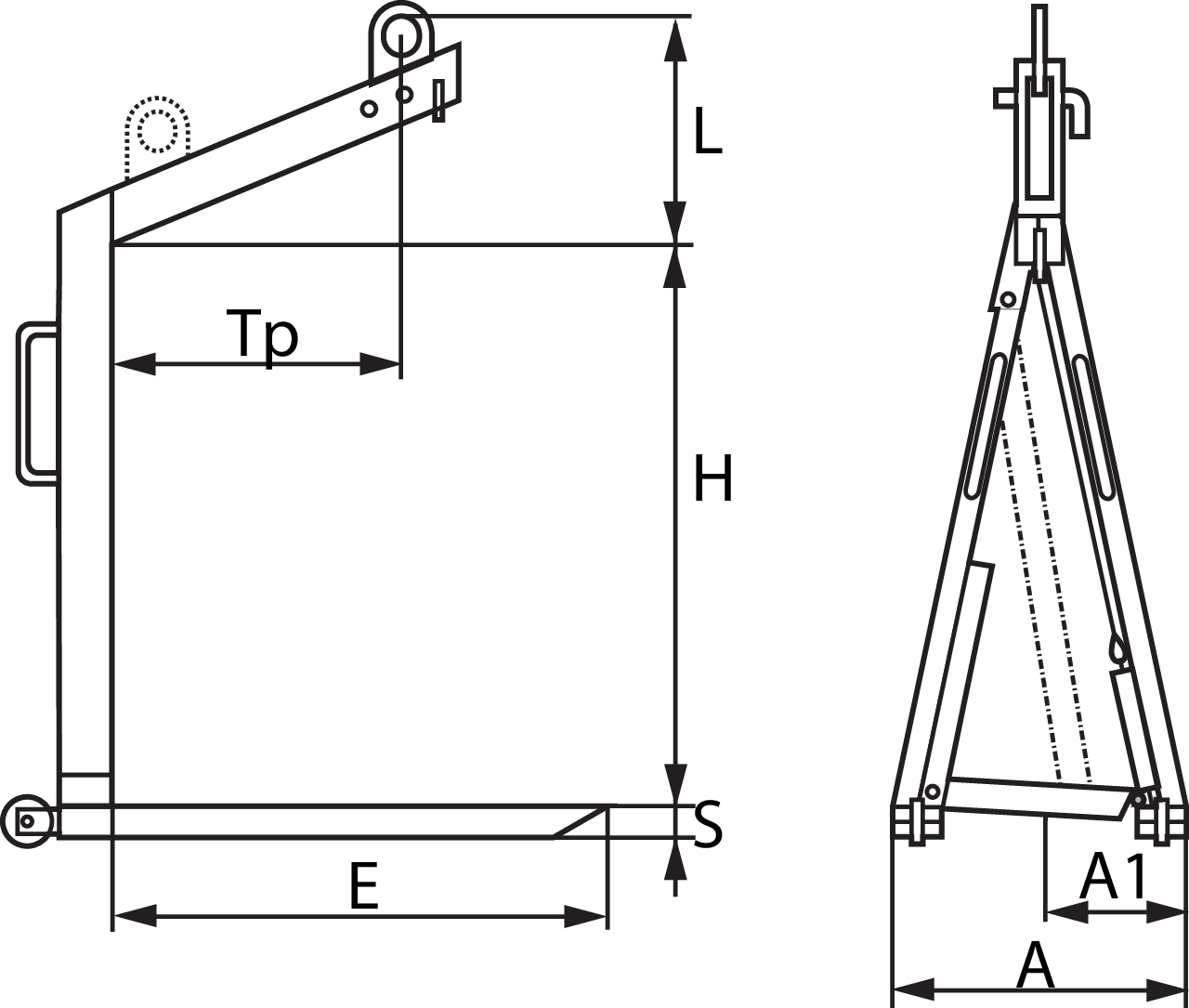

A (mm) A1 (mm) E (mm) H (mm) L (mm) S (mm) Min load kg Tp max* Weight
kg
CAD
13.306042F 6042-F 1.5 700 290 980 1,500 450 50 300 500 105
13.306044F 6044-F 1.5 700 290 800 1,250 450 35 300 450 120
13.306040F 6040-F 2 700 290 800 1,500 450 50 300 400 98
*The "Tp max" value is valid for maximum load. The pallet forks can be used with a greater point of balance if the load is reduced.
