Terrier

General: Horizontal pipe lifting clamp TPH/TPH-HD - Non marking.  Clamp for horizontal lifting and transporting of steel and concrete pipes without damaging the product.
Model THP: Standard clamp
Model THP-HD: special for extreme heavy duty lifting situations

Features:

  • TPH Jaw is covered with a special high quality pressure resistant plastic.
  • TPH-HD Jaw is covered with special high quality extreme high pressure resistant plastic.
  • Maintenance-friendly clamps, plastic pressure resistant cover is easy to change.
  • TPH-HD has special handle for easy handling.
  • Compact design and high lifting capacity.
  • Lightweight design for easy handling.
  • Tough quality heavy duty body.
  • Marking: According to standard, Type, serial number, WLL, Jaw opening and CE marking.
  • Temperature range: TPH: - 40°C to + 100°C. / TPH-HD - 30°C to + 50°C.
  • Standard: EN 13155
Select a row from the table below, then click the add to cart button
Part Code Code WLL
ton
Jaw opening
mm
V
mm
S
mm
W
mm
U
mm
T
mm
X
mm
Y
mm
Weight
kg

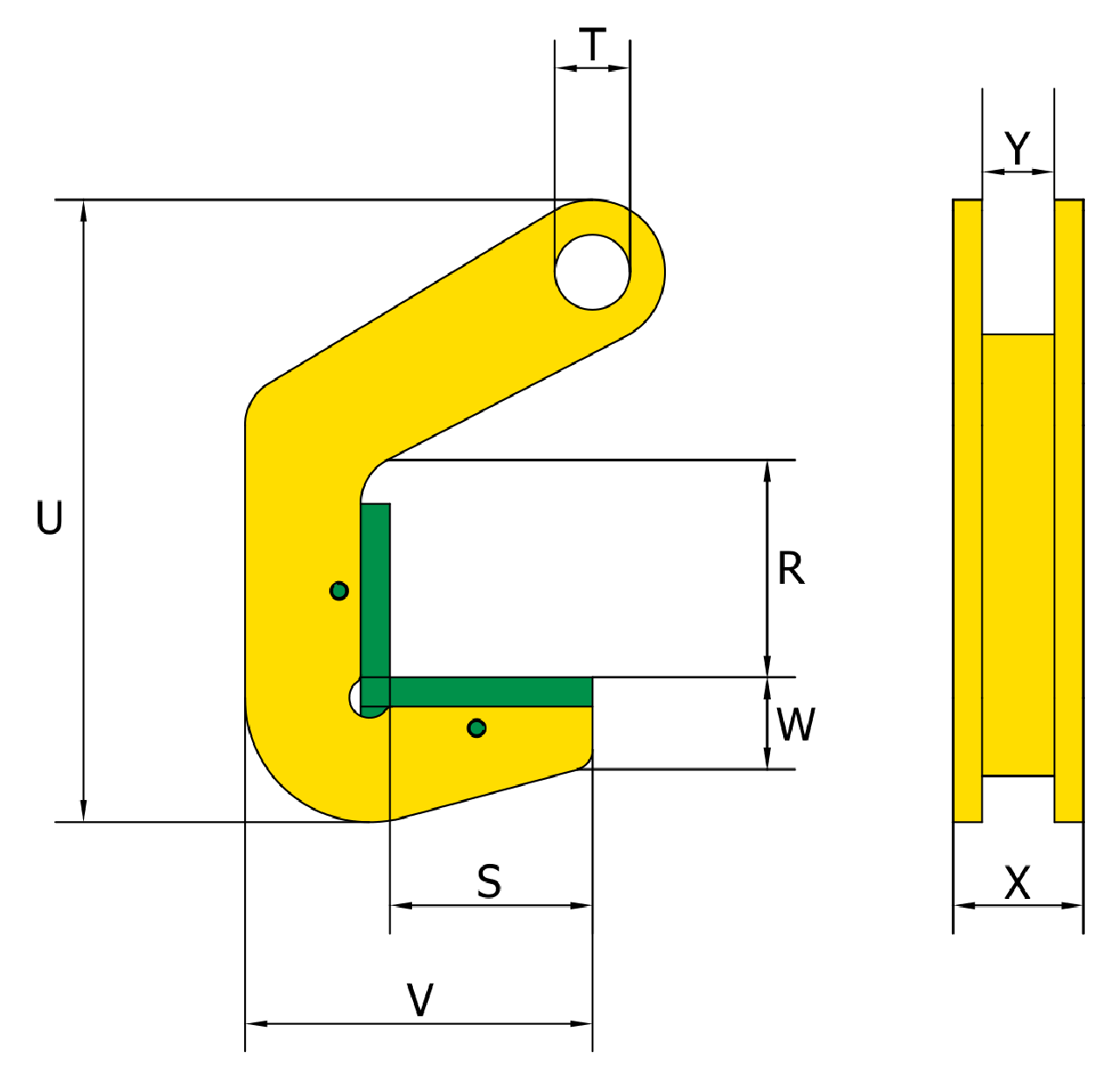

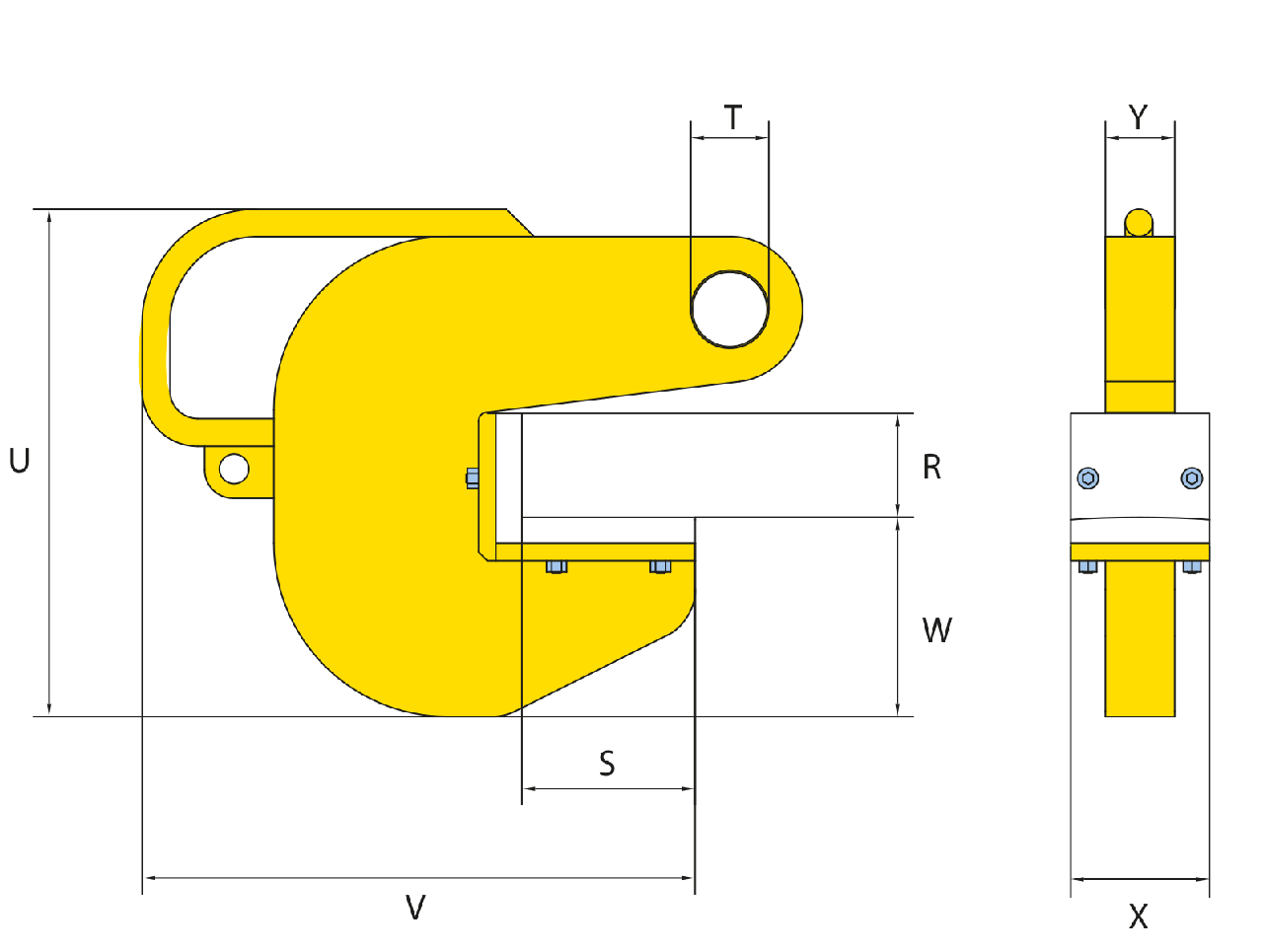

CAD
16.01960150 1.5 TPH 1.5 40 120 70 50 185 16 41 25 2
16.01960300 3 TPH 3 40 120 70 50 185 16 41 25 2
16.01960400 4 TPH 4 50 140 70 58 204 26 41 25 3
16.01965050 5 TPH-HD 5 60 309 100 85 232 26 80 20 6.7
16.01960600 6 TPH 6 50 140 70 58 204 26 41 25 3
16.01960800 8 TPH 8 70 140 70 58 224 26 45 25 3.4
16.01960810 10TPH 10 70 140 70 58 224 26 85 45 5
16.01965100 10 TPH-HD 10 60 319 100 85 236 36 80 30 9.7
16.01960812 12TPH 12 70 140 70 58 224 26 85 45 7
16.01960815 15TPH 15 70 155 70 76 250 26 100 60 9
16.01960820 20TPH 20 70 155 70 76 250 26 100 60 9
16.01965200 20 TPH-HD 20 60 362 100 105 285 51 80 35 14
16.01965300 30 TPH-HD 30 60 387 100 115 310 58 80 40 19
16.01965600 60 TPH-HD 60 60 418 100 115 350 85 80 60 28.5
