General: Single acting, compact air pump.


- Lightweight.
- Safe; when the air pressure is lost, the oil pressure is maintained.
- Spark-free; suitable for explosive rooms.
- Low-noise because of built-in silencer.
- Energy-saving; stops as soon as the maximum pressure has been reached
- Standard Supplied with compressed air connector.

  • Features: Usable at any place because of compact construction.
Product Image 1
Product Image 2
Select a row from the table below, then click the add to cart button

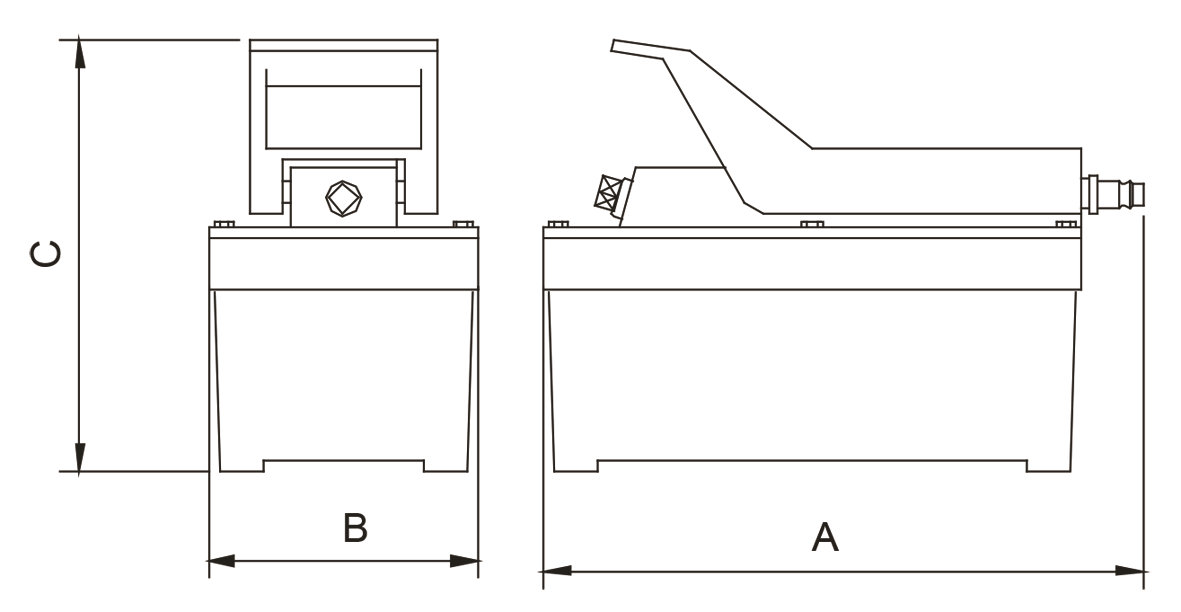

Model max. working pressure
bar/Mpa
oil capacity cc connection max. air pressure
bar/Mpa
A
mm
B
mm
C
mm
Weight
kg
CAD
AHS 1400 FS 720 / 72 1,400 3/8"NPT female 8.5 / 0.9 282 182 200 6.5

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
