Design: The hook self-locks when it is closed and during load. Opening the hook by a remote control is possible.


  • Material: Alloy steel grade 8.
  • Marking: Working load limit and code.
  • Finish: Zinc-plated.
  • Warning: Not to be heat-treated.
  • Safety factor: 5:1.
  • Grade: 8
H44-3_e_225mm
H44-3m_lom_225mm
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton

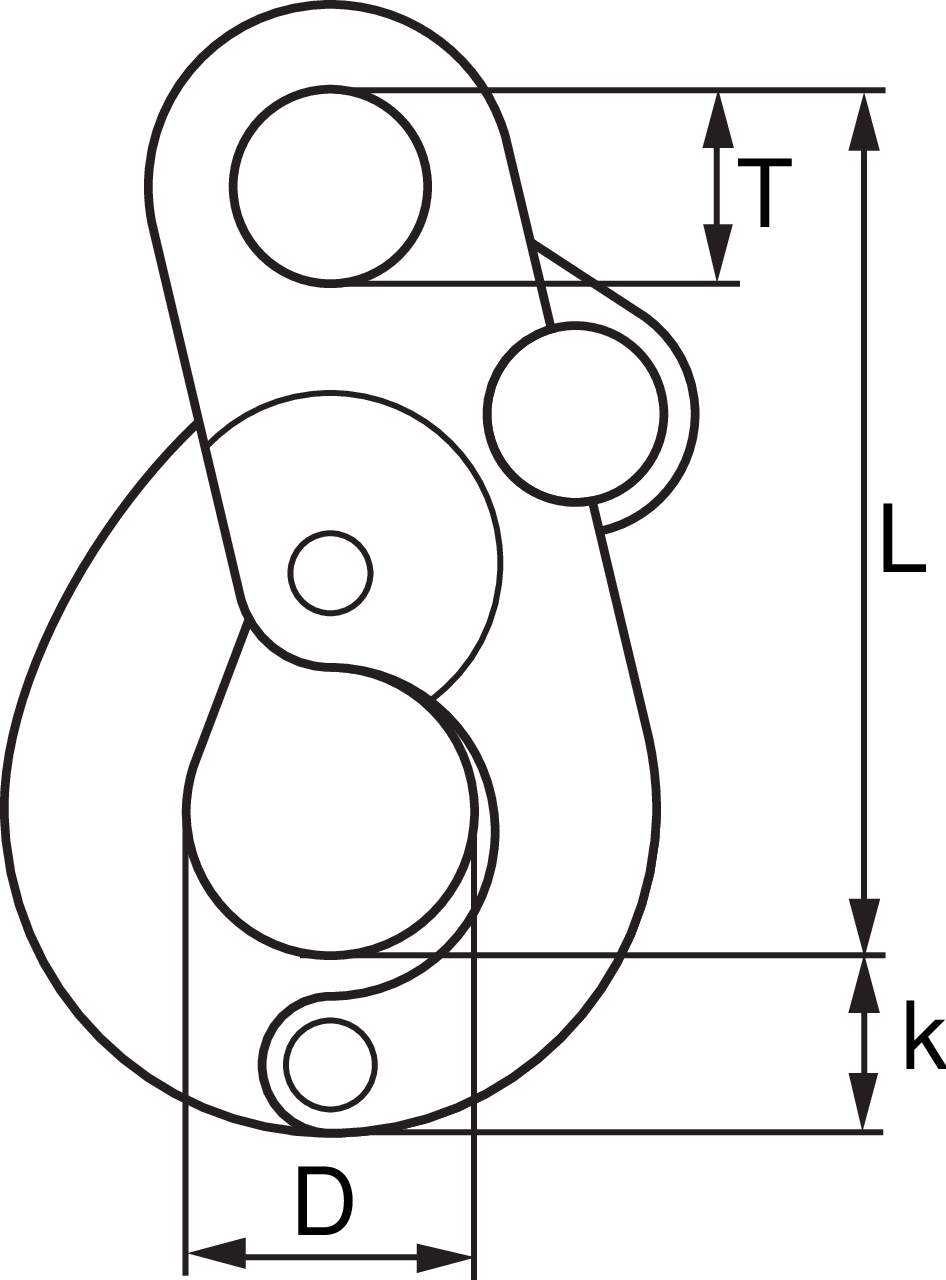

Maximum load that can be released tons Force to release load kg D (mm) L (mm) T (mm) k (mm) Weight
kg
CAD
11.29H443 H-44.3 2.1 1,6 7 35 114 24 23 0.9
11.29H449 H-44.9 8.1 4,5 11 55 178 38 42 5
