Design: Swivels with out bearing.

The swivels are positioning devices and are not intended to rotate under load. For load swivels, see ball bearing swivels.

  • Material: Alloy steel.
  • Marking: WLL.
  • Finish: Galvanized.
  • Note:
  • Safety factor: 5:1.
5351_e_225mm
5351m_micke_225mm
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton

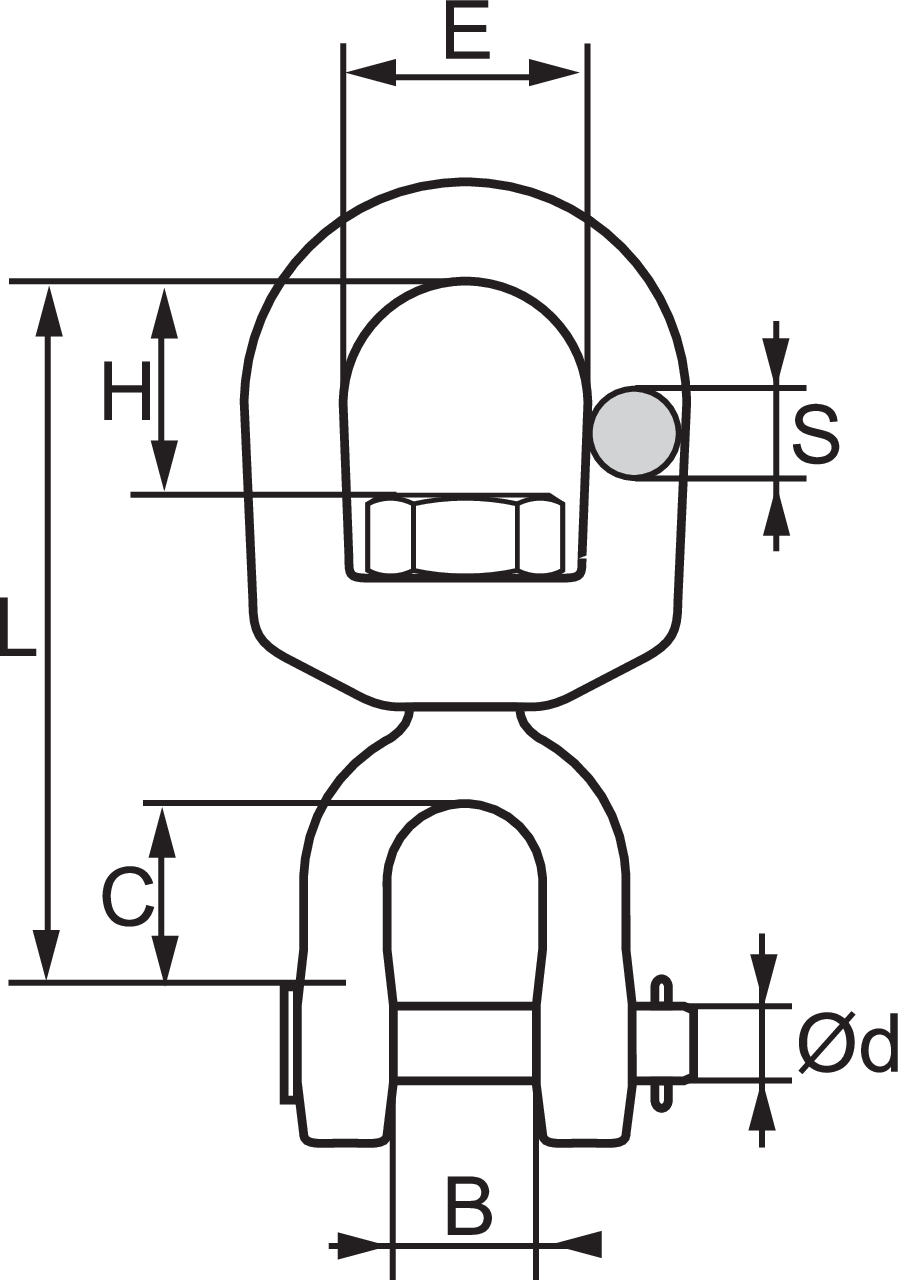

B (mm) C (mm) E (mm) H (mm) L (mm) S (mm) D (mm) Weight
kg
CAD
11.45271D0039EJ 5351 0.39 11,9 22 19 17 67 6 6,35 0.1
11.45271D0057EJ 5352 0.57 12,7 22 25 20 74,5 8 7,85 0.15
11.45271D0100EJ 5353 1.02 16 27 31 24 92 10 9,65 0.3
11.45271D0160EJ 5354 1.63 19,1 33 38 33 114 13 12,7 0.61
11.45271D0230EJ 5355 2.36 23,9 38 44 39 135 16 16 1
