• Rotates through 360° and pivot 90°
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolts are Metric thread (ASME / ANSI B18.3.1M).
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • Quick and simple assembly, just a tapped hole is required.
  • Material: Alloy steel, quenched and tempered
  • Marking: According to standard, CE-marked
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

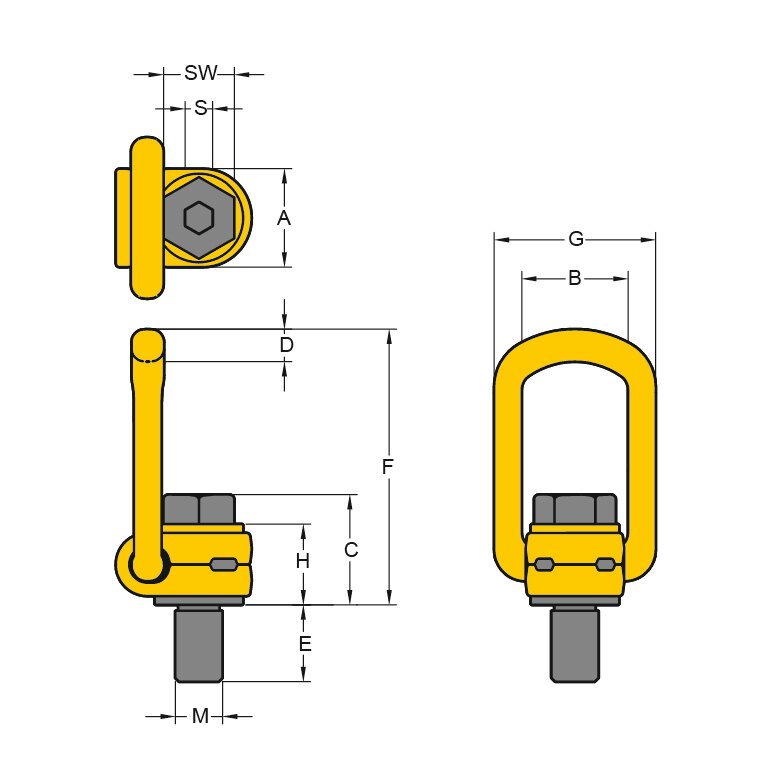

Part Code WLL
ton
Torque
Nm
Thread
M
mm
Thread length (E)
mm
Pitch DIN13 A
mm
B
mm
C
mm
D
mm
F
mm
G
mm
H
mm
S
mm
SW
mm
Weight
kg
CAD
11.428-211-003-105L 0.3 30 M 8 76 1.25 30 35 35 10 85 55 29 6 13 0.3
11.428-211-006-125L 0.63 60 M 10 96 1.5 30 35 36 10 85 55 29 6 17 0.4
11.428-211-010-150L 1 100 M 12 114 1.75 33 37 44 14 98 57 36 8 19 0.6
11.428-211-015-185L 1.5 150 M 16 149 2 33 37 46 14 98 57 36 10 24 0.7
11.428-211-025-230L 2.5 250 M 20 186 2.5 50 54 57 17 140 82 44 12 30 1.7
11.428-211-040-265L 4 400 M 24 221 3 50 54 59 17 140 82 44 14 36 2.1
11.428-211-050-340L 5 500 M 30 278 3.5 60 65 81 23 170 99 62 17 46 4.3
11.428-211-080-300L 8 800 M 36 222 4 77 85 101 27 225 124 78 22 55 7.3
11.428-211-100-350L 10 1,000 M 42 272 4.5 77 85 104 27 225 124 78 24 65 8.7

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
