General: Specially rugged profile chain in grade 12 for lifting.

  • Material: Alloy steel grade 12
  • Marking: Every link is marked with manufacturer ID and grade
  • Temperature range: -60ºC to 300ºC
  • Finish: Light blue powdercoated
  • Note: Not to be heat-treated
  • Grade: 12
Chain
KLM_e_225mm
Select a row from the table below, then click the add to quote button

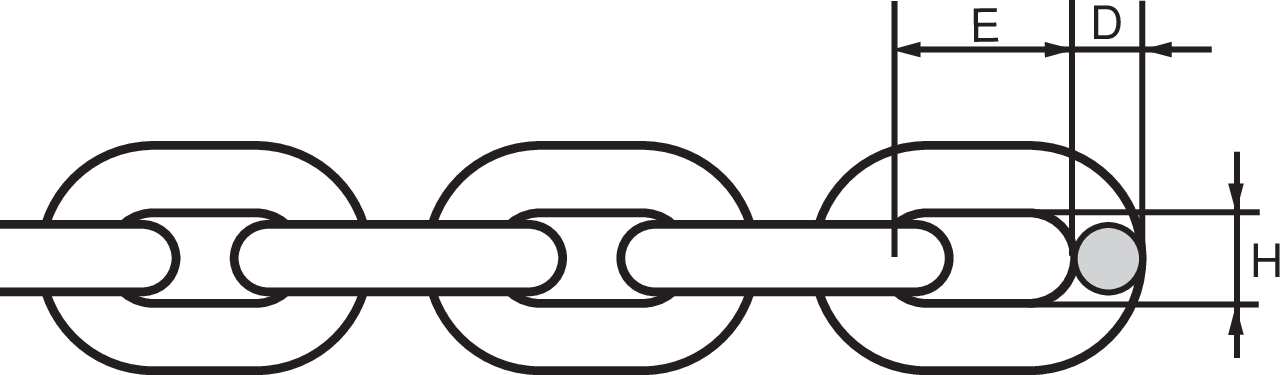

Part Code Code Diameter
mm
WLL
ton
Breaking force (kN) Outside width
mm
E
mm
H
mm
Weight
kg/m
CAD
11.6676999 WINPRO 7 7 2.36 92,6 26 22 10 1.36
11.6677058 WINPRO 8 8 3 118 29 25 11 1.64
11.6677065 WINPRO 10 10 5 196 37 33 14 2.7
11.6677072 WINPRO 13 13 8 314 50 41 19 4.8
*Lifting applications for safety factor 4:1

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
