Enlarged master link assembly for creating II- III- and IV-leg chain slings for all chain dimensions.

  • Material: Alloy stee
  • Marking: According to standard, CE-marked, Pewag or PW, winner pro or 12, H16, batch code and type.
  • Temperature range: -60ºC up to +300ºC.
  • Finish: Light blue powdercoated.
  • Standard: EN 1677-4
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 12
kwb_GT_S_m_225mm
Select a row from the table below, then click the add to quote button

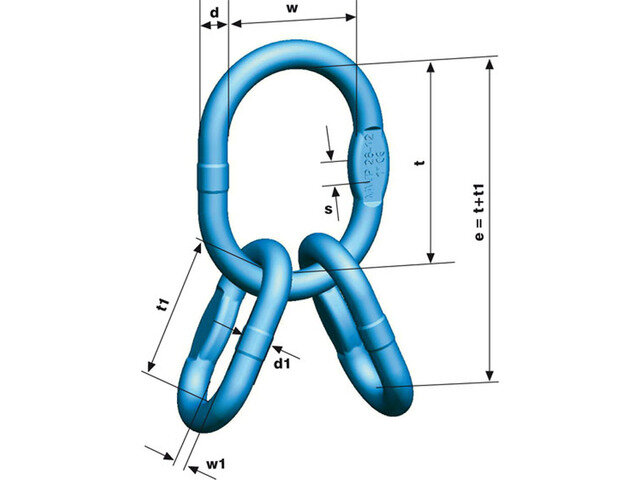

Part Code Code WLL
ton
Single hook DIN 15401 Double hook DIN 15402 Nr. d
mm
d1
mm
e
mm
s
mm
t
mm
t1
mm
w
mm
w1
mm
Weight
kg
CAD
11.0387994 VMWP 2- 7/8 4.25 6 8 19 13 214 14 160 54 95 25 1.47
11.0387996 VMWP 2-10/4-7/8 8.8 10 12 27 17 260 20 190 70 110 34 3.45
11.0387998 VMWP 2-13/4-10 12.3 12 16 33 20 315 26 230 85 130 40 6.28
11.0387992 VMWP 4-13 21.2 20 25 38 27 415 29 275 140 150 65 11.5
11.0332132 VMWP 4-16 26.5 20 25 38 33 425 29 275 150 150 70 13.8

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
