Terrier

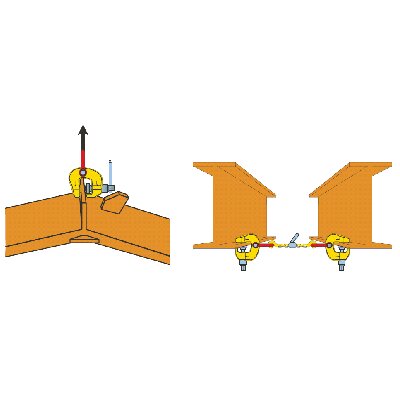

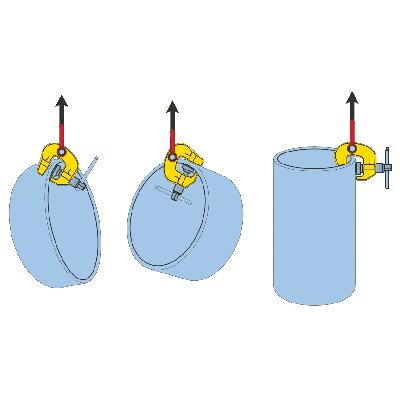

Universal screw clamp for vertical and horizontal lifting and transporting of a large variety of steel structures. Can also be attached upside down and be used as a (temporary) lifting point.
Model TSCC : standard screw clamp.
Model TSCC-W: With enlarged jaw opening.

Features:

  • Special universal design ensures multi-purpose application of lifting steel structures.

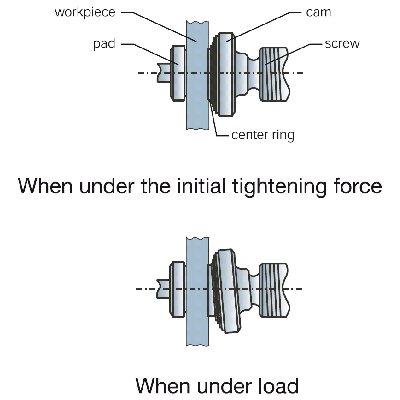

  • Fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece.
  • Equipped with a safety screw spindle mechanism, ensuring the clamp does not slip when lifting force is applied.
  • Lightweight design for easy handling.
  • Tough quality heavy duty drop forged body.
  • Forged alloy components, where required.
  • Maintenance-friendly, easy to exchange parts which are available upon request.
  • No minimal WLL needed.
  • Marking: CE-marked, Type, serial number, WLL, Jaw opening.
  • Temperature range: -40°C up to +100°C.
  • Warning: Hardness level of the material surface may not exceed 37 HrC (345 Hb, 1166 N/mm2)
    Select a row from the table below, then click the add to cart button

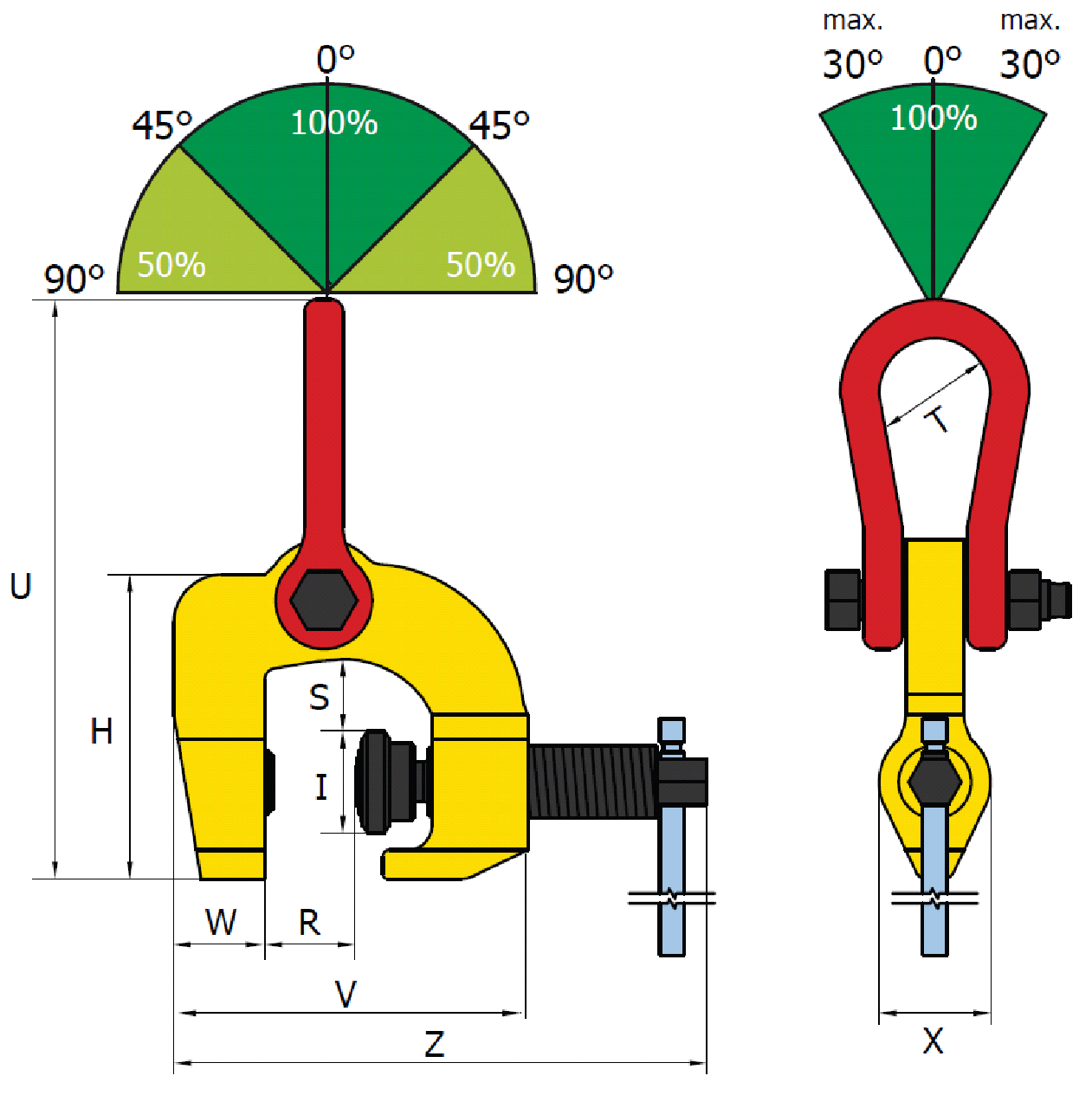

    Part Code Code WLL
    ton
    Jaw width
    mm
    S
    mm
    I
    mm
    W
    mm
    V
    mm
    Z
    mm
    U
    mm
    H
    mm
    T
    mm
    X
    mm
    Weight
    kg
    16.01900500 0.5 TSCC 0,5 0-35 18 27,5 26 108 158 211 82 25 27 1
    16.01901000 1 TSCC 1 0-40 29 42 40 150 220 232 140 46 46 3,3
    16.01903000 3 TSCC 3 0-60 38 50 46 190 280 278 184 50 60 7,8
    16.01906000 6 TSCC 6 0-100 60 63 70 296 446 390 249 100 75 22
