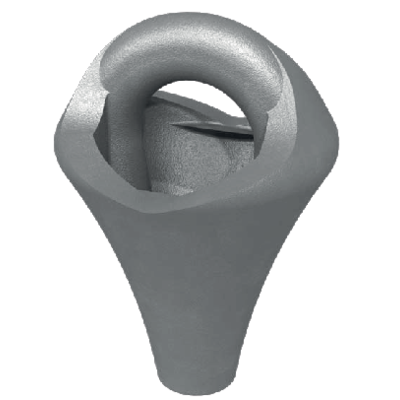

The pear socket type S is specially designed for endfitting of a steel wire rope, and the breaking load is related to steel wire ropes with a smaller diameter that have a higher breaking load. Such as 8 strand and/or compacted wire ropes.
- Material: High grade casted steel.
- Marking: Manufacturers logo, size and batch number.
- Warning: The specified capacities shown are for grab operation. For other applications use safety factor 5:1
- Safety factor: 5:1
Combination of the Nemag Rope Pear Socket type S with Nemag Quick Release Link.
A Rope Pear Socket can be fitted to a Quick Release Link of the same size, or to a link with a different size as indicated in table
|Pear code:||Link code:|
|RPS-924||RL-8 / RL-9 / RL-10|
|RPS-1026||RL-9 / RL-10 / RL-11|
|RPS-1130||RL-10 / RL-11 / RL-12|
|RPS-1232||RL-11 / RL-12|
|RPS-1336||RL-12 / RL-13 / RL-14|
|RPS-1440||RL-13 / RL-14 / RL-15|
|RPS-1548||RL-14 / RL-15|
|RPS-1648||RL-15 / RL-17|
