Talurit

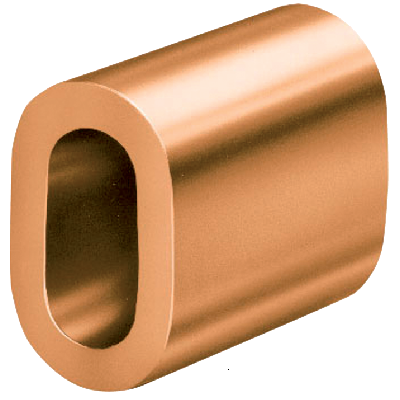

The copper ferrule (TCU) is intended for stainless steel wire rope to avoid galvanic corrosion. The pressing of TCU ferrules requires approx 25% higher pressure than the corresponding T ferrule of aluminium alloy.

Note:
We do not guarantee the strength of slings for lifting activities made of Copper turnback ferrules. A termination performed according to our instructions will normally withstand a tensile strength of 90% of minimum breaking load (MBL) of the wire rope. Verifying tests must be done in order to secure the strength of the termination.

These ferrules have been validated according to TALURIT™ splicing system, which is within the framework of EN 13411-3. The copper material is not accepted in this standard.

  • Material: Copper (almost 99,9%)
  • Marking: According to standard
  • Standard: EN 13411-3
  • Note: See the manufacturer's product data sheet below for guidance on dimension selection.
    TCU
    Select a row from the table, then click the add to cart button
    Part Code Ferrule size
    mm
    Length
    mm
    10.02TCU01 1 6,5
    10.02TCU02 1,5 8
    10.02TCU03 2 9
    10.02TCU04 2,5 12
    10.02TCU05 3 14
    10.02TCU06 3,5 16
    10.02TCU07 4 18
    10.02TCU08 4,5 20
    10.02TCU09 5 23
    10.02TCU10 6 27
    10.02TCU11 6,5 29
    10.02TCU12 7 32
    10.02TCU13 8 36
    10.02TCU14 9 40
    10.02TCU16 10 45
    10.02TCU18 11 50
    10.02TCU20 12 54

    Diameter after pressing, see instruction.
    Length is after pressing.

    info / downloads
