• Not for lifting

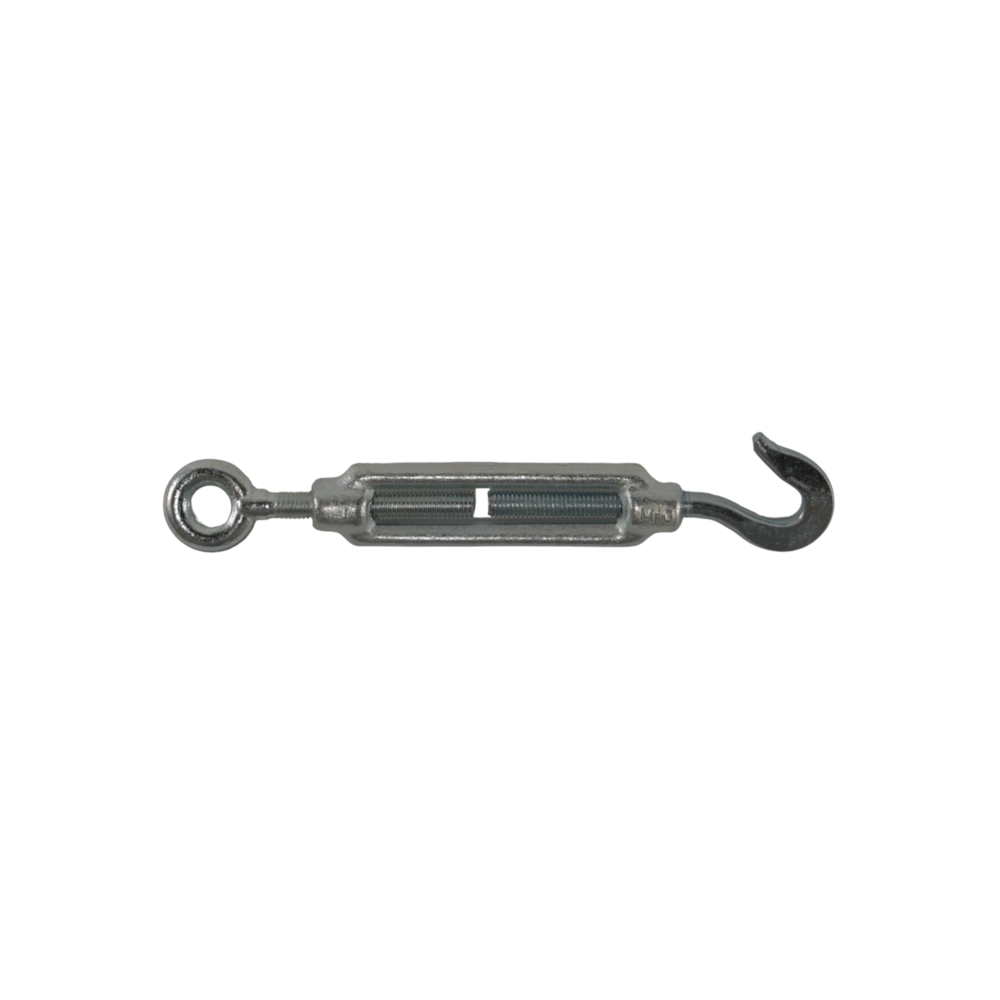

General: Turnbuckle for general use.

Terminals: Eye/hook. Other terminals as per separate order.
Standard: DIN 1480.

  • Finish: Hot-dip galvanized.

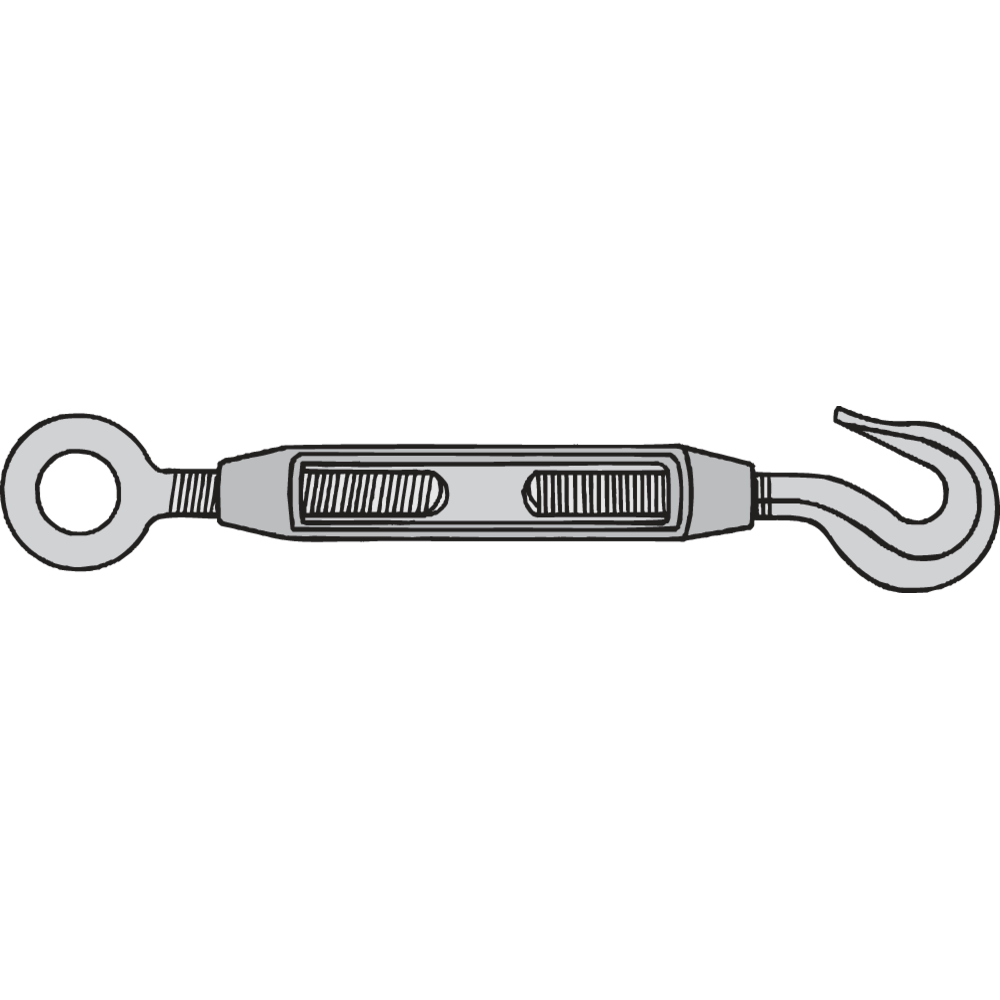

    turnbuckle_eye_hook

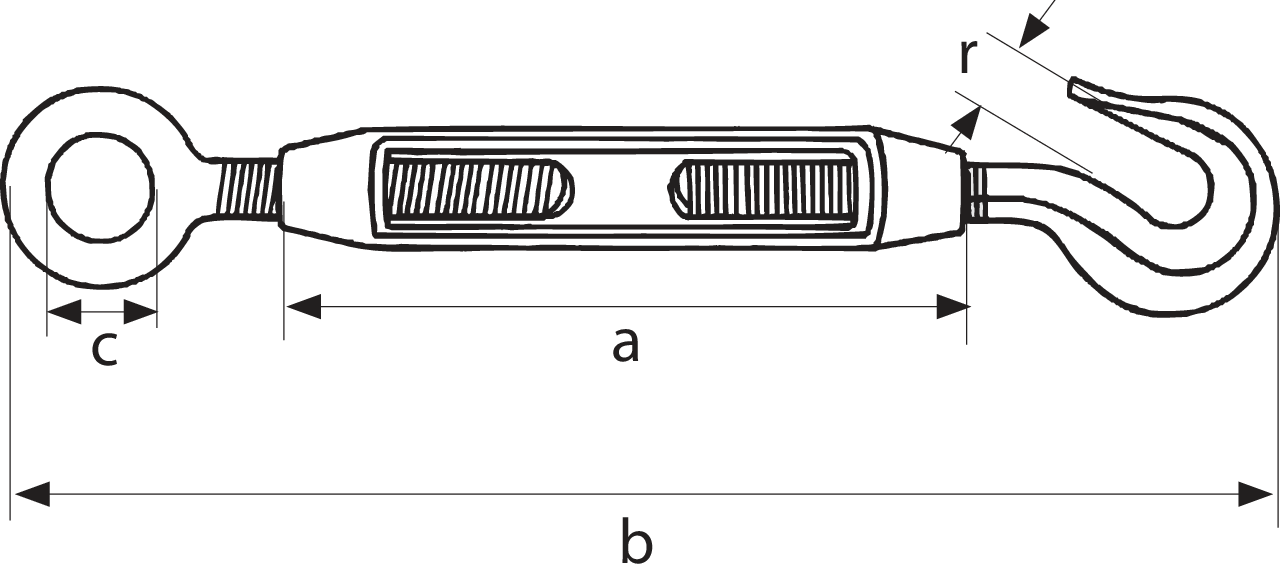

    turnbuckle_eye_hook_measure
    Select a row from the table below, then click the add to cart button
    Part Code Code Thread b min-max A
    mm
    r
    mm
    C
    mm
    Weight
    kg/100pc
    11.54148006HE VR06SK1480 M6 172 - 252 110 8,5 9 9,5
    11.54148008HE VR08SK1480 M8 182 - 257 110 11,0 10 16,5
    11.54148010HE VR10SK1480 M10 213 - 298 125 13,5 14 29
    11.54148012HE VR12SK1480 M12 238 - 318 125 15,5 16 43
    11.54148014HE VR14SK1480 M14 263 - 353 140 18,5 18 62
    11.54148016HE VR16SK1480 M16 320 - 430 170 19,0 22 92
    11.54148020HE VR20SK1480 M20 367 - 497 200 20,5 24 163
    11.54148022HE VR22SK1480 M22 398 - 543 220 26,0 27 220
    11.54148024HE VR24SK1480 M24 447 - 617 255 26,0 27 300
